Motala MC2000 - Fit the shelf

MOTALA MC2000 – Updated version of the platform wall
Instruction
© 2012 Motalahissar AB 6 (14) IQ56-04 Rev: B

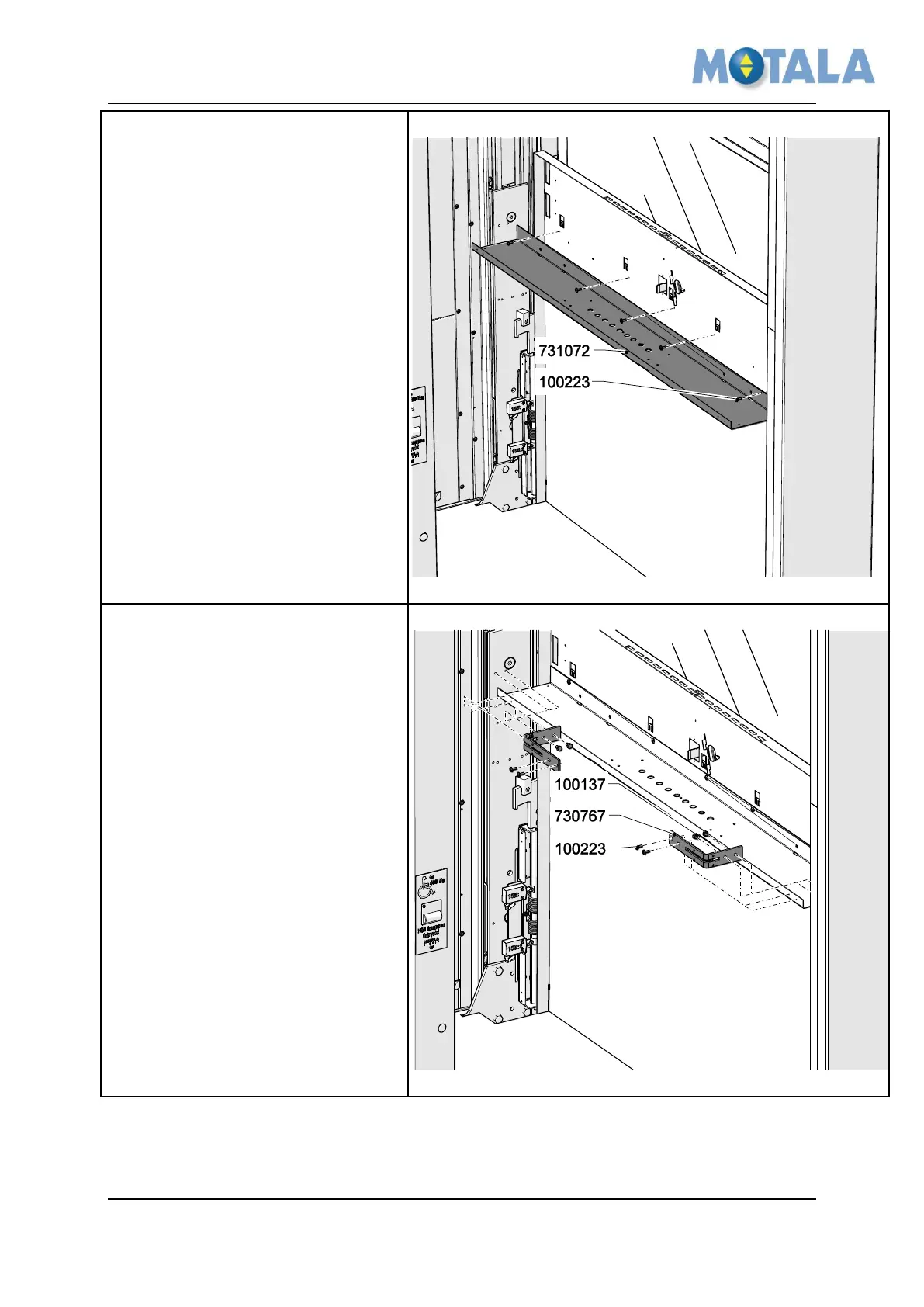

Fit the shelf
1. Fit the shelf 731072, use 5x
100223.
Fit the angle brackets
1. Fit the angel brackets 2x 730767,
one on the left and one on the
right side, use 4x100137 and 4x
100223.
2. Route the cables from the
magnet sensors, end limit switch
and retiring ramp together with
the fixings.
