33
MC2000 – Assembly Instruction Manual

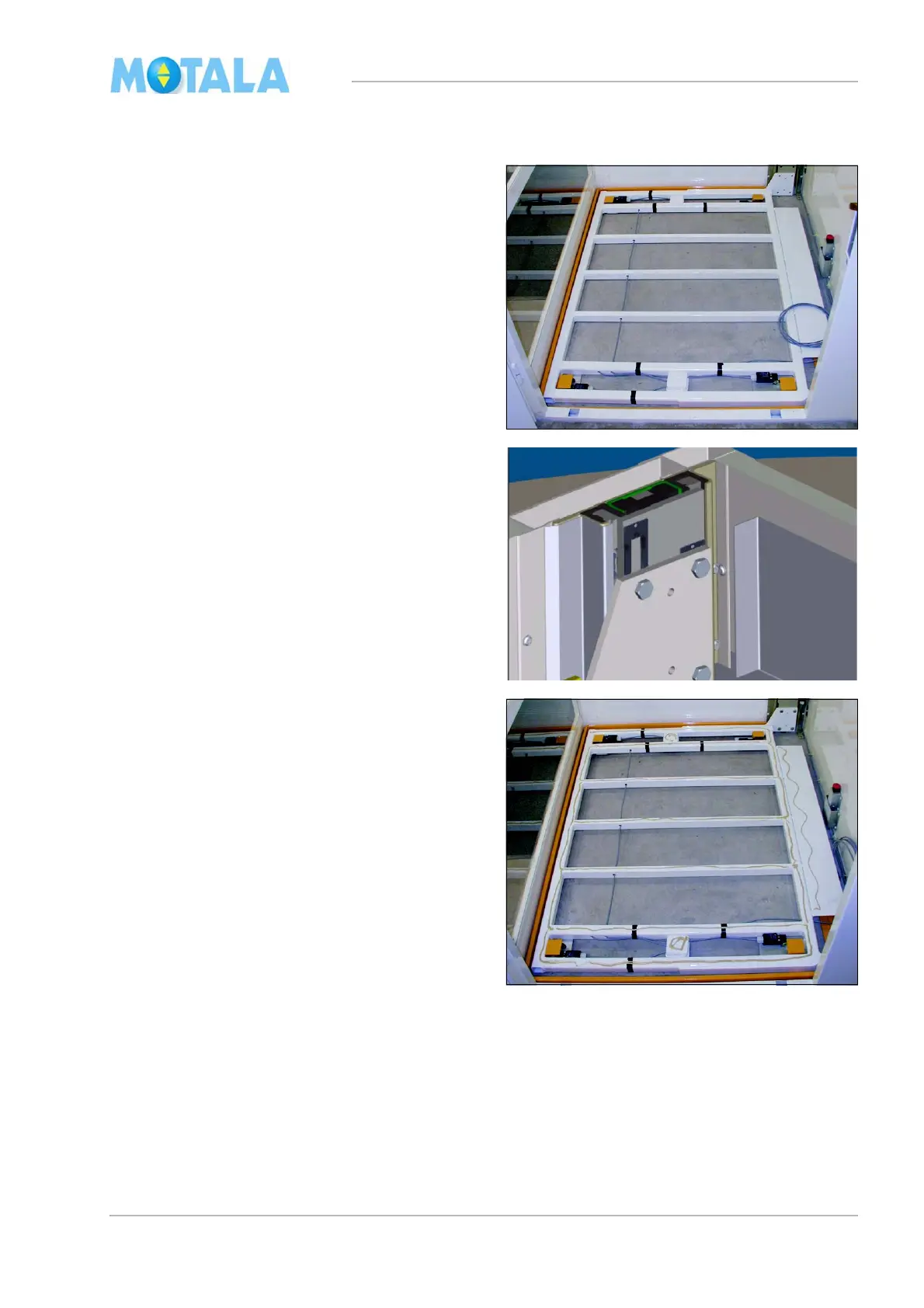

Platform
1. Lift the floor panel from the floor frame.
2. Carry the floor frame into the lift well and
fo
ld it downwards.
1. Fasten the floor frame in the slides, using
ei
ght M10 screws. Lift and adjust the floor
frame into position with a crowbar so that
the screws can be fastened lose by hand.
2. Fit if nesisary schims “in pairs between”
pl
atform fixing and slide. If yo need to put
more than one pair of shims to fill up the
gap, you shall share them equal only in
pairs to both fixings.
3. Fasten the screws with 55 Nm
4. Put an adhesive run on all the floor frame
cr
ossbars.
