MOTALA MC2000 – Mechanical blocking device
Instruction
© 2012 Motalahissar AB 5 (12) IQ56-03 Rev: B
5. Installation

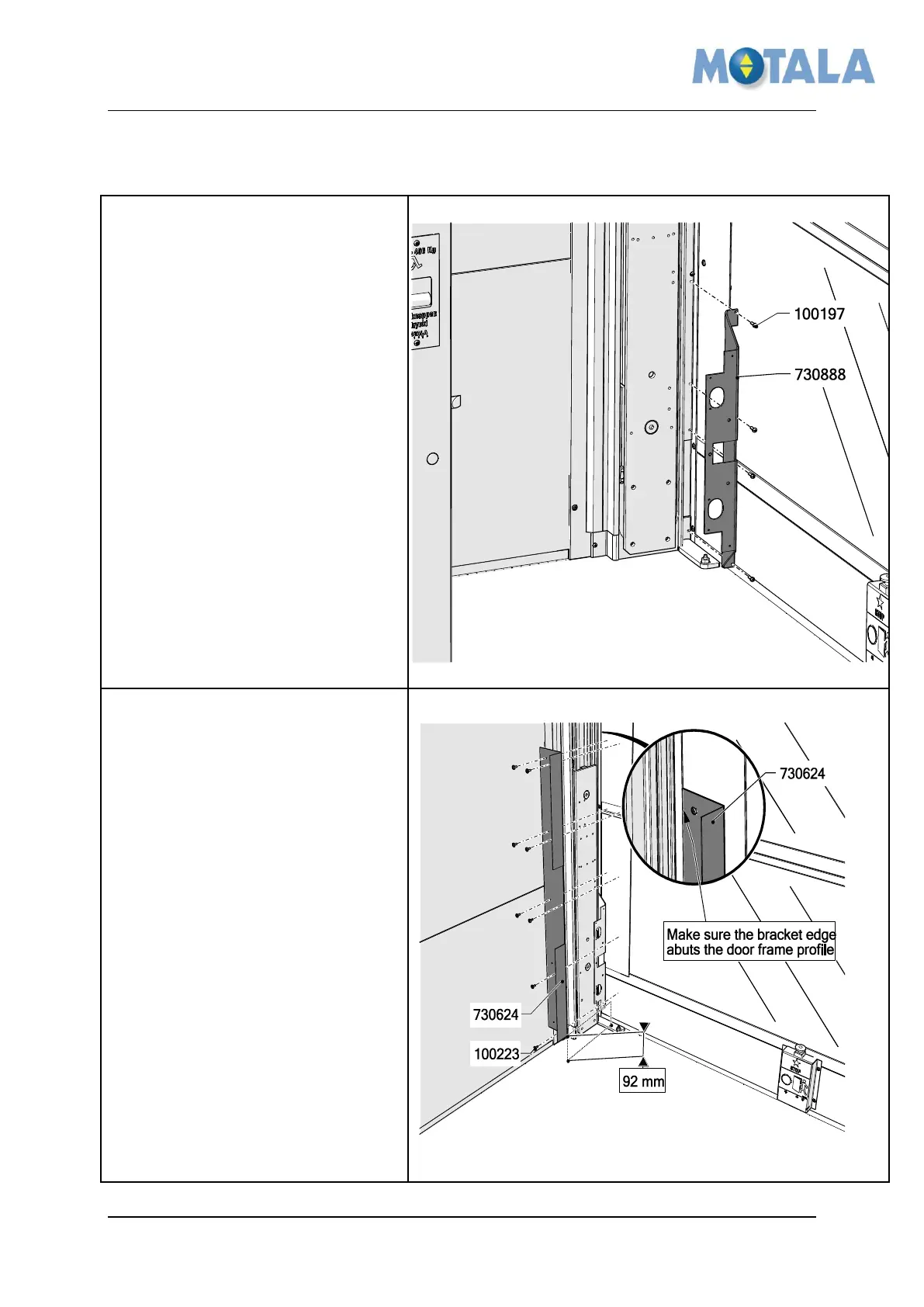

Mount the first bracket
1. Mount the bracket 730888 in
the pre-drilled holes in the
guide, use 4x 100197.
Mount the cover plate bracket
1. Mount the cover plate 730624,
use 8x 100223.
2. Make sure that the cover plate
edge rest against the edge of
the door frame (or aluminum)
profile. And its lower end is
100 mm over the pit floor.
