MOTALA MC2000 – Updated version of the platform wall

Instruction

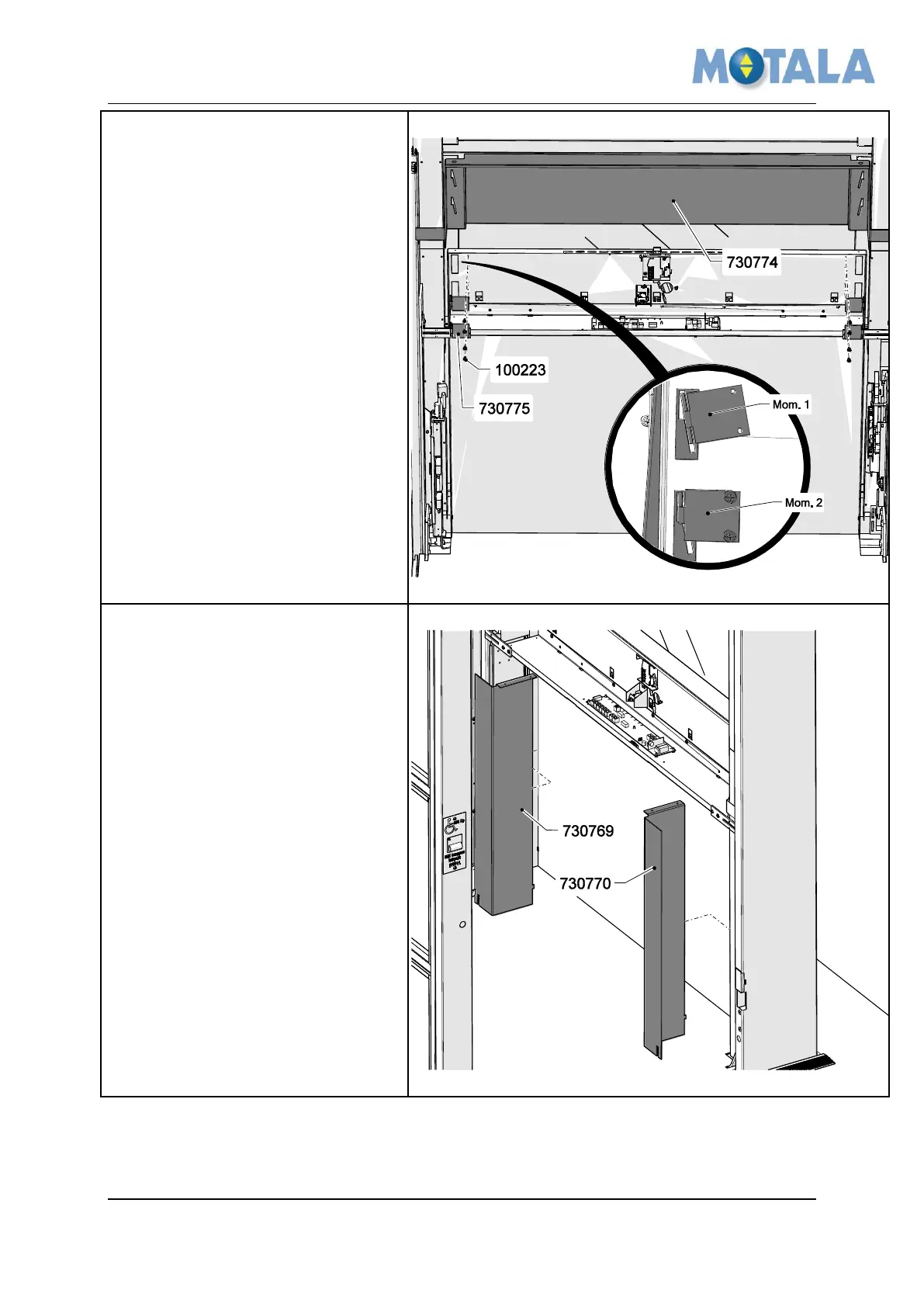

Fit the upper sensitive edge

1. Fit the upper sensitive edge

730774, use 4x 730775 and 8x

100223. Se Mom. 1 and Mom. 2.

Place the side panels

1. Place the left 730769 and right

730770 side panel after that you

are satisfied with floor magnets,

limit and lock arm positions.

Note! If you want to drive and

adjust from the platform COP

you may have to fit these panels

temporary for getting the COP

etc in right place.
