MOTALA MC2000 Automatic door operator when headroom
is 1300mm (so-called “half door”)
Instruction
© 2012 Motalahissar AB 5 (6) IQ56-08
Rev: -

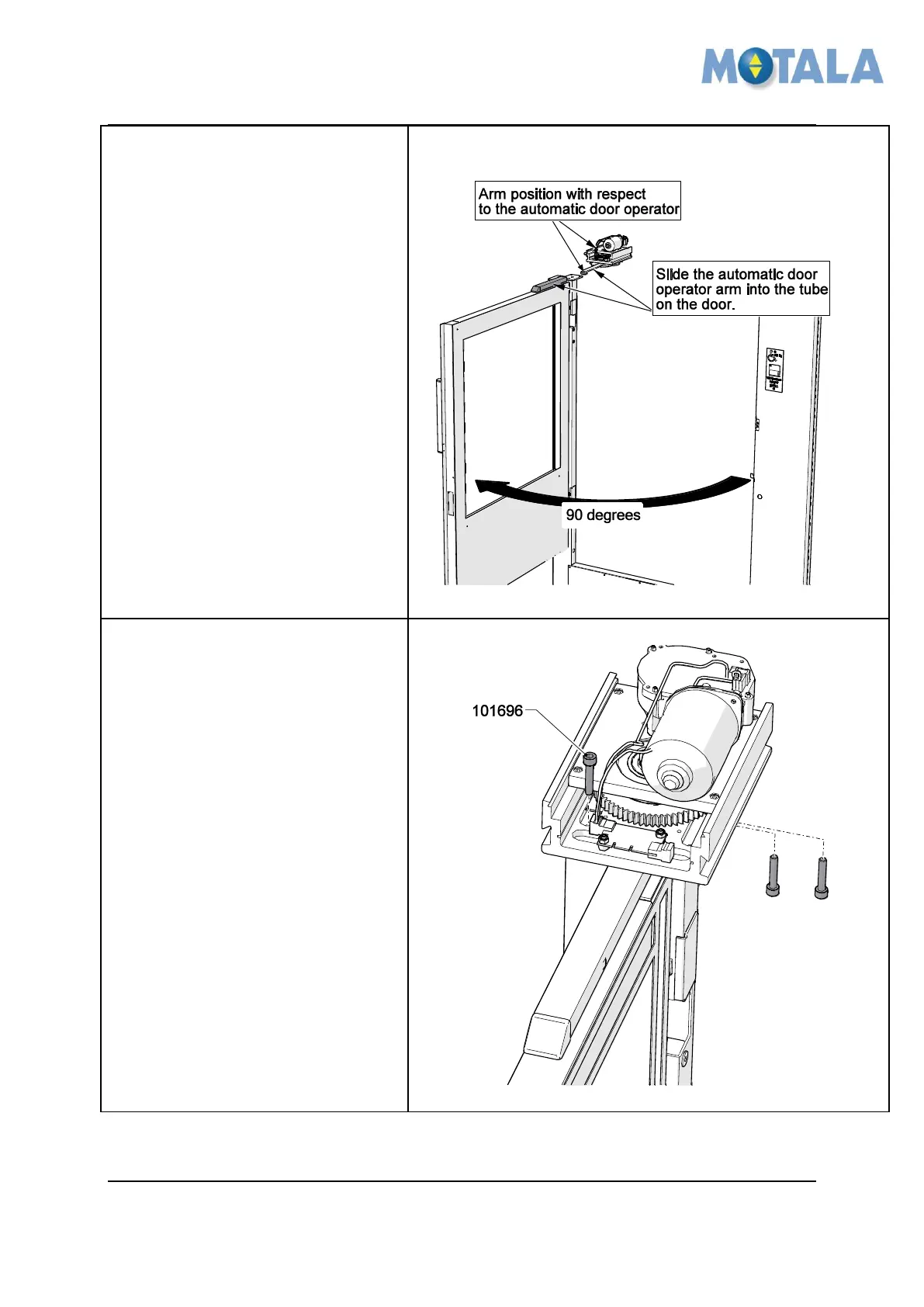

Prepare to fit the automatic door
operator
1. In some cases there can be a wall
at the side of the lift witch
prevent to slide the automatic
door operator arm in to the tube
on the closed door, then follow
step 2 and 3.
2. Turn the arm on the automatic
door operator so that it points at
the direction to the outside of
the door frame.
3. Open the door 90 degrees so that
it points in the same direction as
the arm on the automatic door
operator. Warning! Don’t open
the door more than 90 degrees, it
can damage the door frame. Be
careful not to damage the cable.
4. Not. All cables are not correct
shown in this illustration.
Fit the automatic door operator
1. Fit the automatic door operator,
use 3x101696.
