MC2000 – Assembly Instruction Manual
44
Lubrication

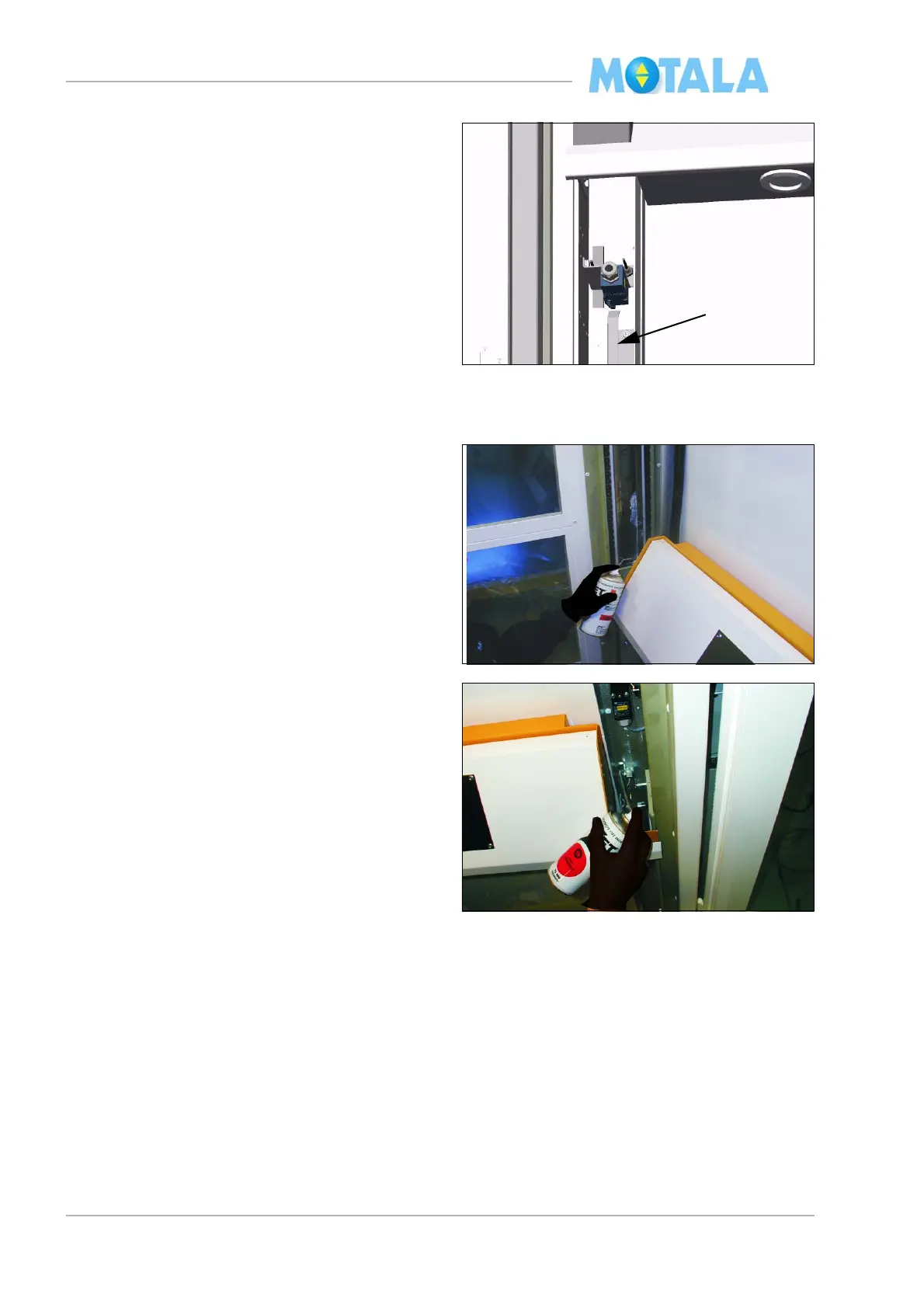

3. Fit the final stop ramp (2) for the 51: con-
tact at the top and ground floor. The switch
sho
uld be effected by the ramp if the lift
runs more than 15mm above the top floor
and 15mm below the ground floor. The
ramp shall align against the angle plate
corner.
1. Lubricate the C-profile guide rails. Use Su-
perlube synthetic grease, article item
number
100401.
2. Lubricate the roller of the lock arms where
t
he wire runs.
