© 2012 Motalahissar AB 4 (14) IQ56-04 Rev: B
4. Installation

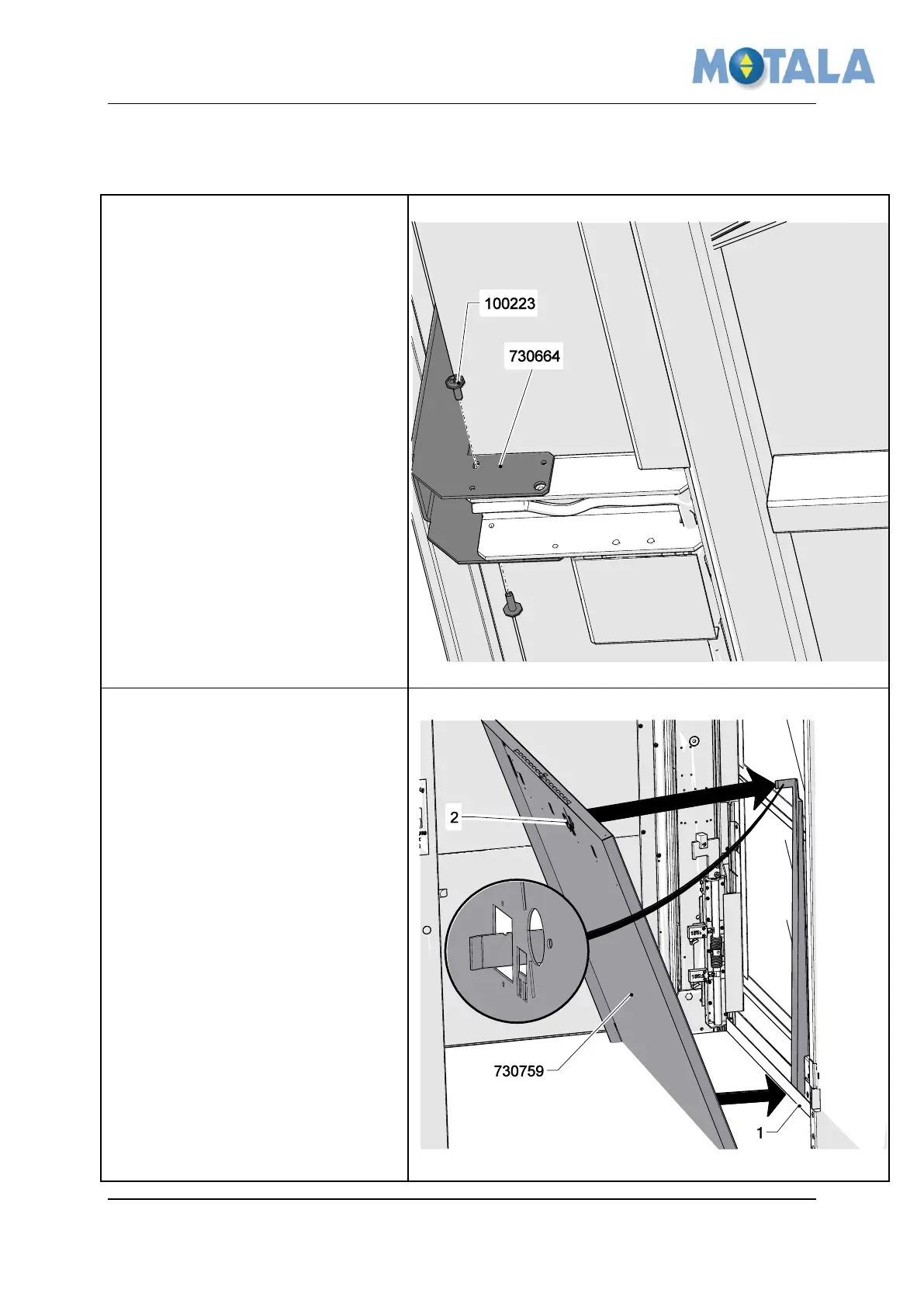

Install the overload arm
1. Fit the overload arm from the
underside of the platform, use 2x
100233 so that it still can be
adjusted.
2. Route the cable from the
sensitive edges inside the arm.
Install the platform wall
1. Fit the lower part of the wall
730759 so it abuts the platform
floor edge (1).
2. Fit the overload arm into the
hole (2) in the platform wall.
