Motala MC2000 - Mount the retiring ramp and limit switch cams; Mount the limit switches

MOTALA MC2000 – Mechanical blocking device
Instruction
© 2012 Motalahissar AB 11 (12) IQ56-03 Rev: B

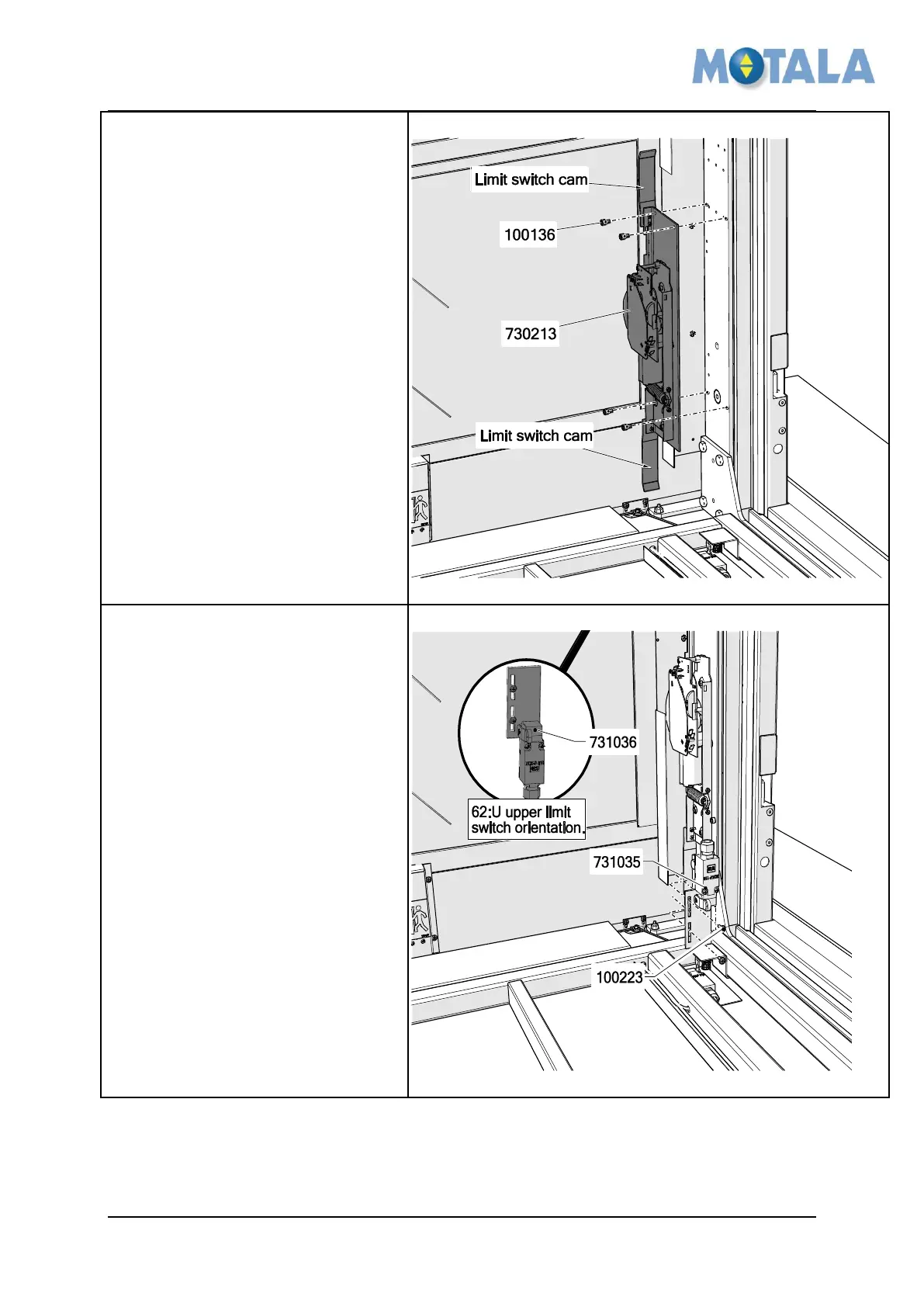

Mount the retiring ramp and
limit switch cams
1. Mount the retiring ramp
730213, use 4x 100136.
Mount the limit switches
1. Mount the retiring ramp
731035 (62:N) and 731036
(62:U), use 4x 100223.
