Motala MC2000 - Fix the overload arm; Fit the earth terminal and circuits board

MOTALA MC2000 – Updated version of the platform wall
Instruction
© 2012 Motalahissar AB 8 (14) IQ56-04 Rev: B

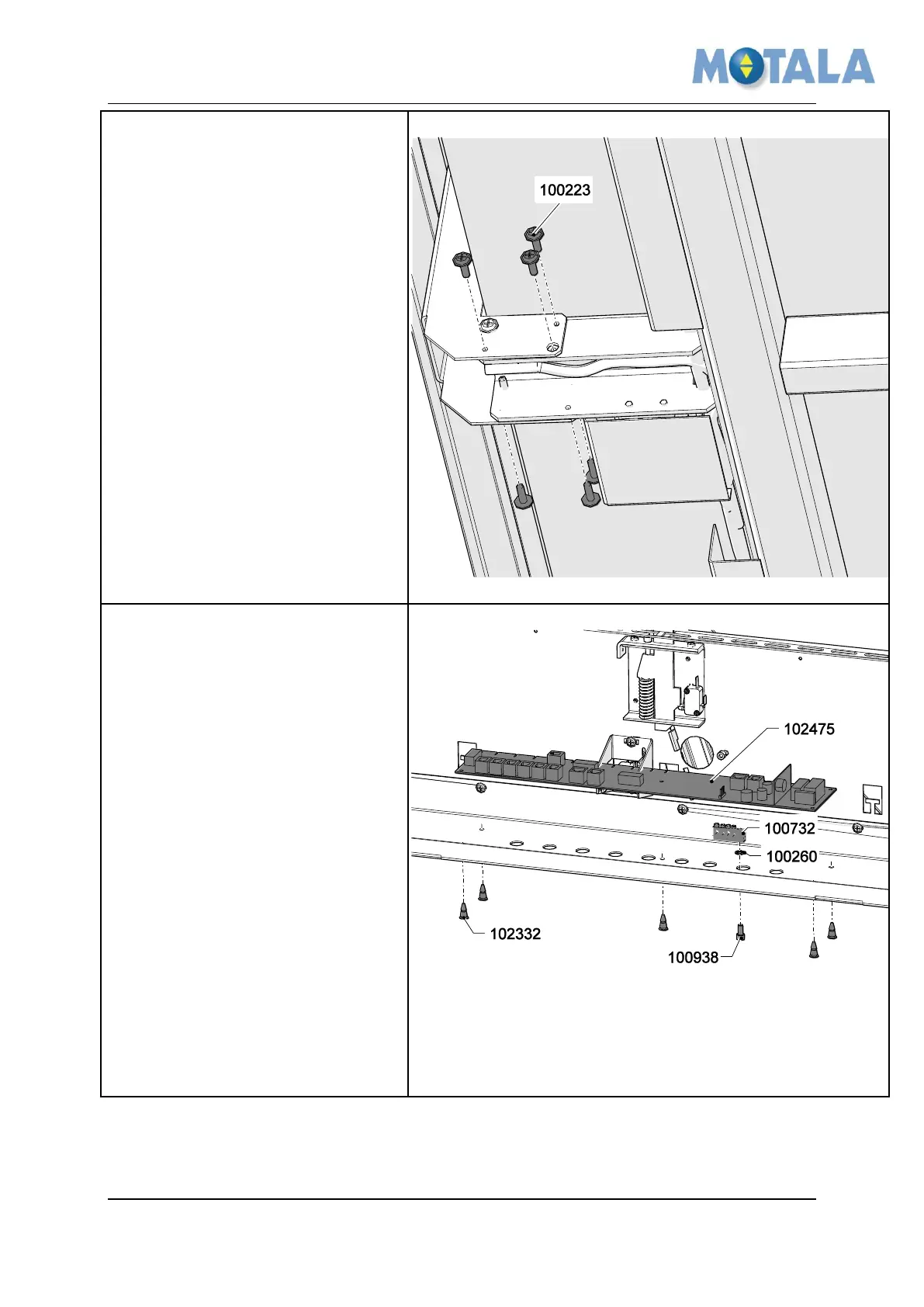

Fix the overload arm
1. Fix the overload arm, use 6x
100223.
Fit the earth terminal and
circuits board
1. Fit the earth terminal 100732,
use 1x 100260 and 1x 100938.
2. Fit fasteners for circuit boards, 6x
102332 on the shelf.
3. Fit the circuit board 102475.
4. Connect the cables to the PCB
terminals. See electrical drawings
for connection points.
