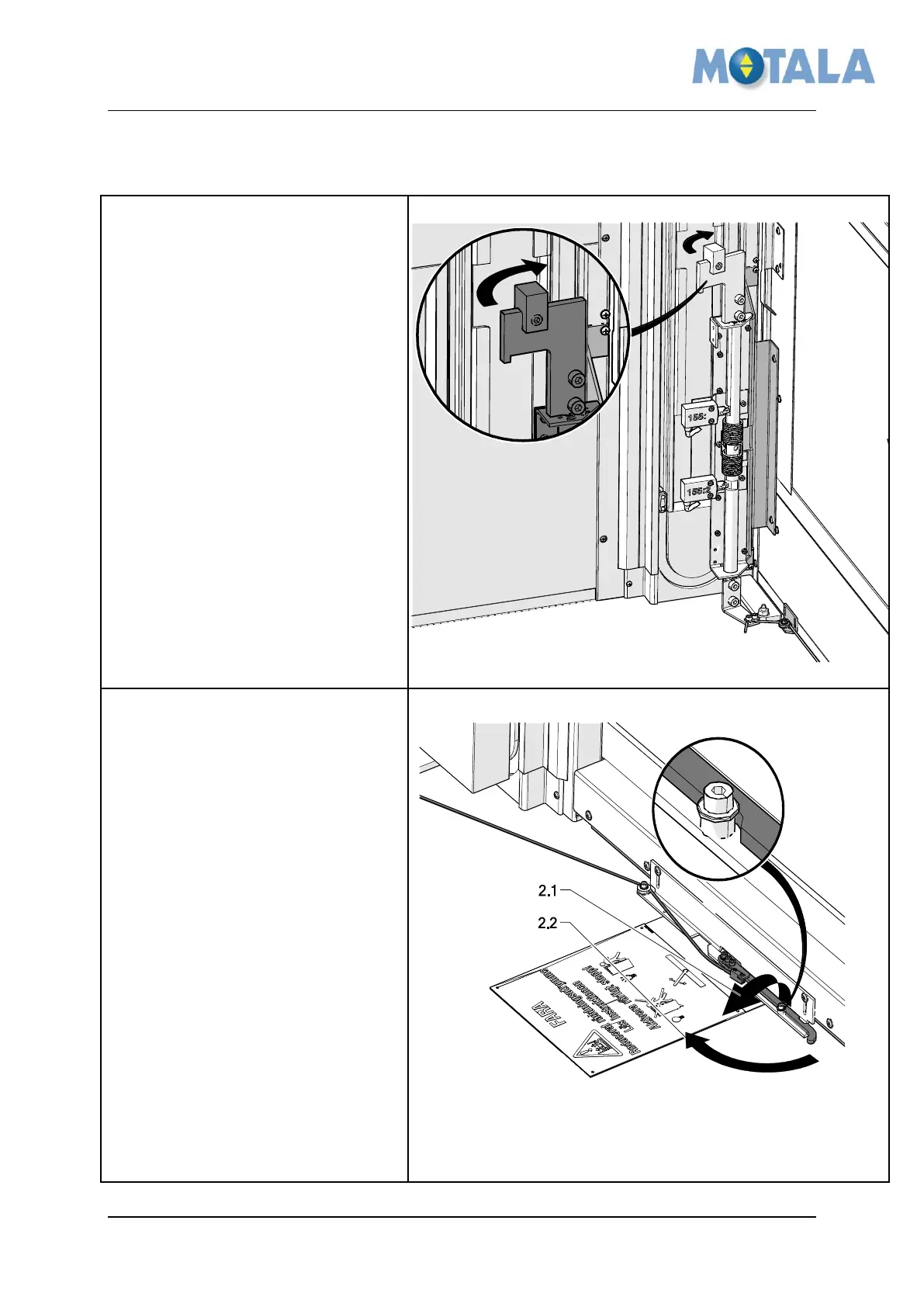

Mechanical blocking device
1. The mechanical blocking
device in the pit is always
placed on the opposite side
from the motor and the retiring
ramp. It is used to provide a
safety space of 500 mm when
working in the pit.
The operating handle to the
mechanical blocking
device
1. Open the bottom floor door,
the operating handle is placed
in the pit just inside the door.
2. Lift up (2.1) and swing out
(2.2) the arm to activate the
mechanical blocking device.
3. The green light on the
emergency stop device must
be switched on before entering
the pit.
4. When entered the pit push the
emergency stop device.
5. When you are leaving the pit
make the steps in reverse
order.
