Threshold – Installation instruction
© 2013 Motala Hissar AB 2 (6) IQ56-11 Rev: B
3. SITE REQUIREMENTS AND TOOLS
3.1 SITE REQUIREMENTS
To fit the thresholds the floor must be finished, otherwise the fitter can not complete the
installation of the treshold.
Note! If the floor is not finished at the time of the lift installation the threshold must be fitted by
the builder after the lift is installed and the floor is finished (see 5.1.1 and 5.1.2). The fitter of
the lift must have a dialog with the builder and explain how to make a proper installation before
leaving the installation site.
3.2 TOOLS
Aluminum saw, electrical screwdriver, pop rivet tool, drilling machine and spirit level.
3.3 CHECK DELIVERY
Check that the inner stainless steel plate and the outer aluminum profile are not damaged or
have scratches. Check the length of the inner and outer part. Pop rivets for fix the outer part to
the inner part is in the screw package for the lift. Note! The screws to fit the outer part of the
threshold to the finished floor is not included (see 5.1.2)
3.4 STANDARD SIZES
To fit different shaft sizes the aluminum profile must be adjusted in length. The inner steel plate
depends on the door width and has the correct width from factory.

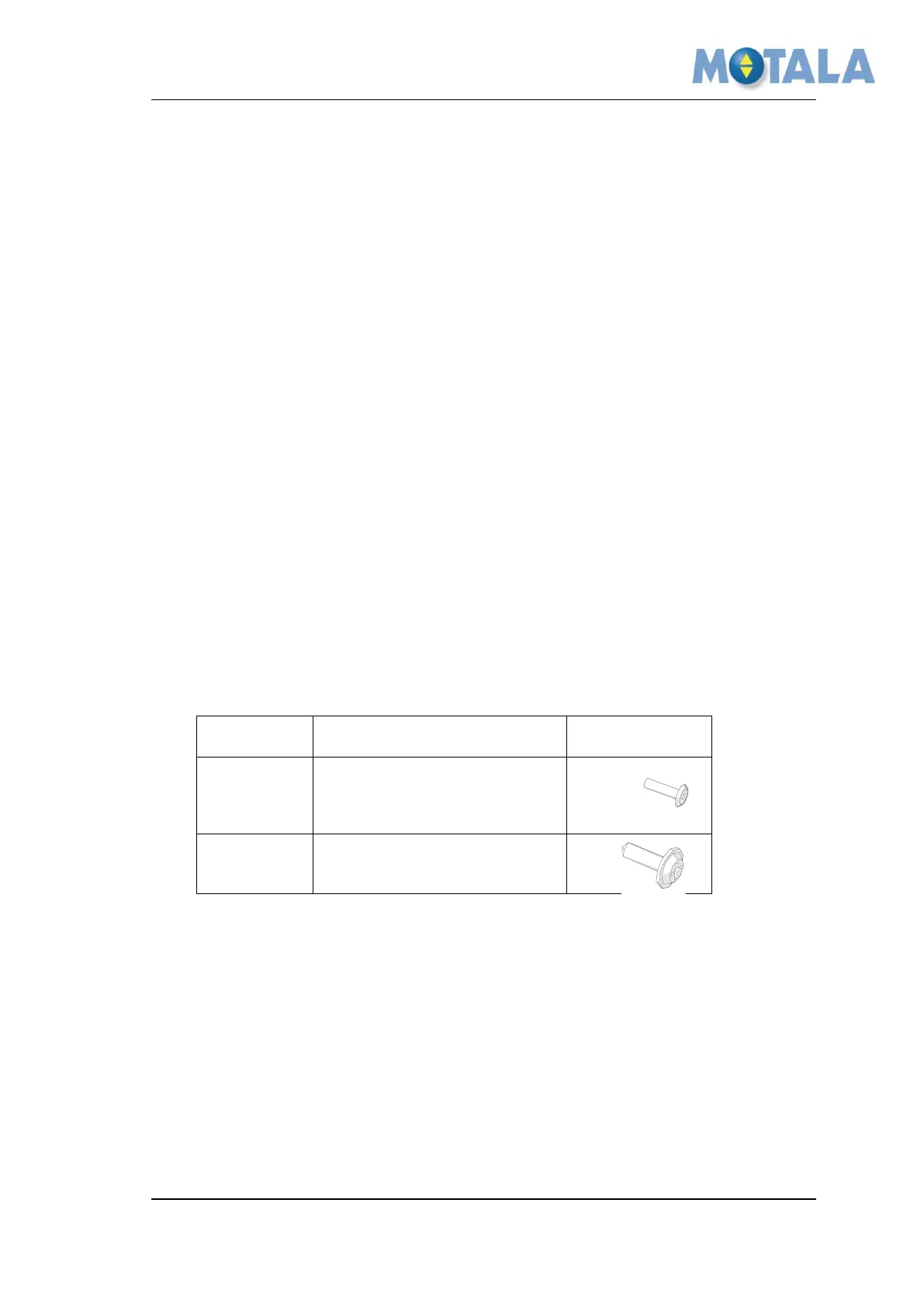

4. Fasteners used in the installation instruction
Pop rivet 3,2x13,1 Stainless
