Motala MC2000 - Markings for holes; Fit the clamp protection

MOTALA MC2000 Automatic door operator ST1300
clamp protection
Instruction
© 2012 Motalahissar AB 5 (6) IQ56-18
Rev: -

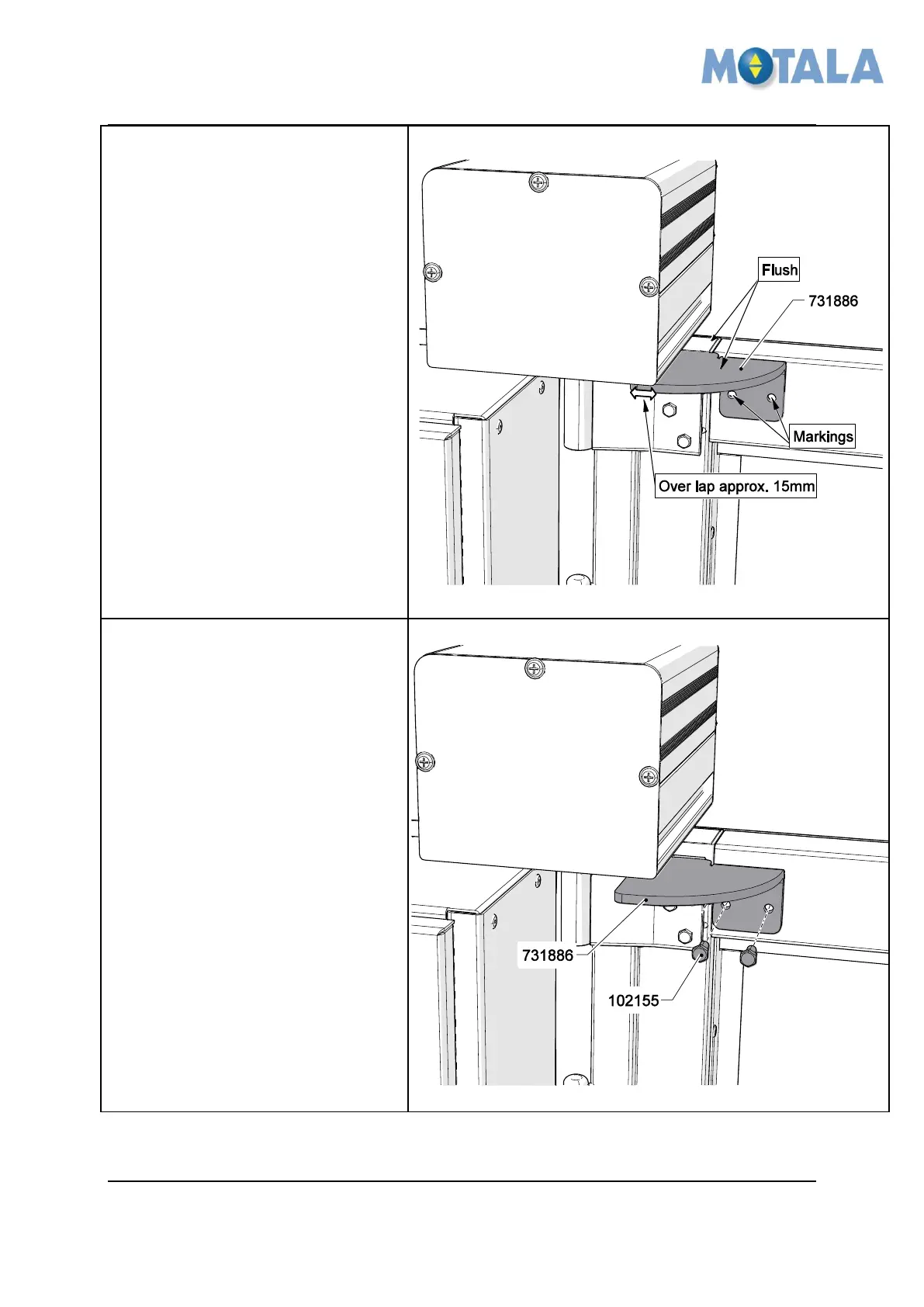

Markings for holes
Hold the clamp protection as in
the picture and make markings at
the holes.
Fit the clamp protection
Make 2x M5 holes at the
markings and fit the clamp
protection with 2x 102155
