Motala MC2000 - Adjustment of the limit switches positions

MOTALA MC2000 – Mechanical blocking device
Instruction
© 2012 Motalahissar AB 12 (12) IQ56-03 Rev: B

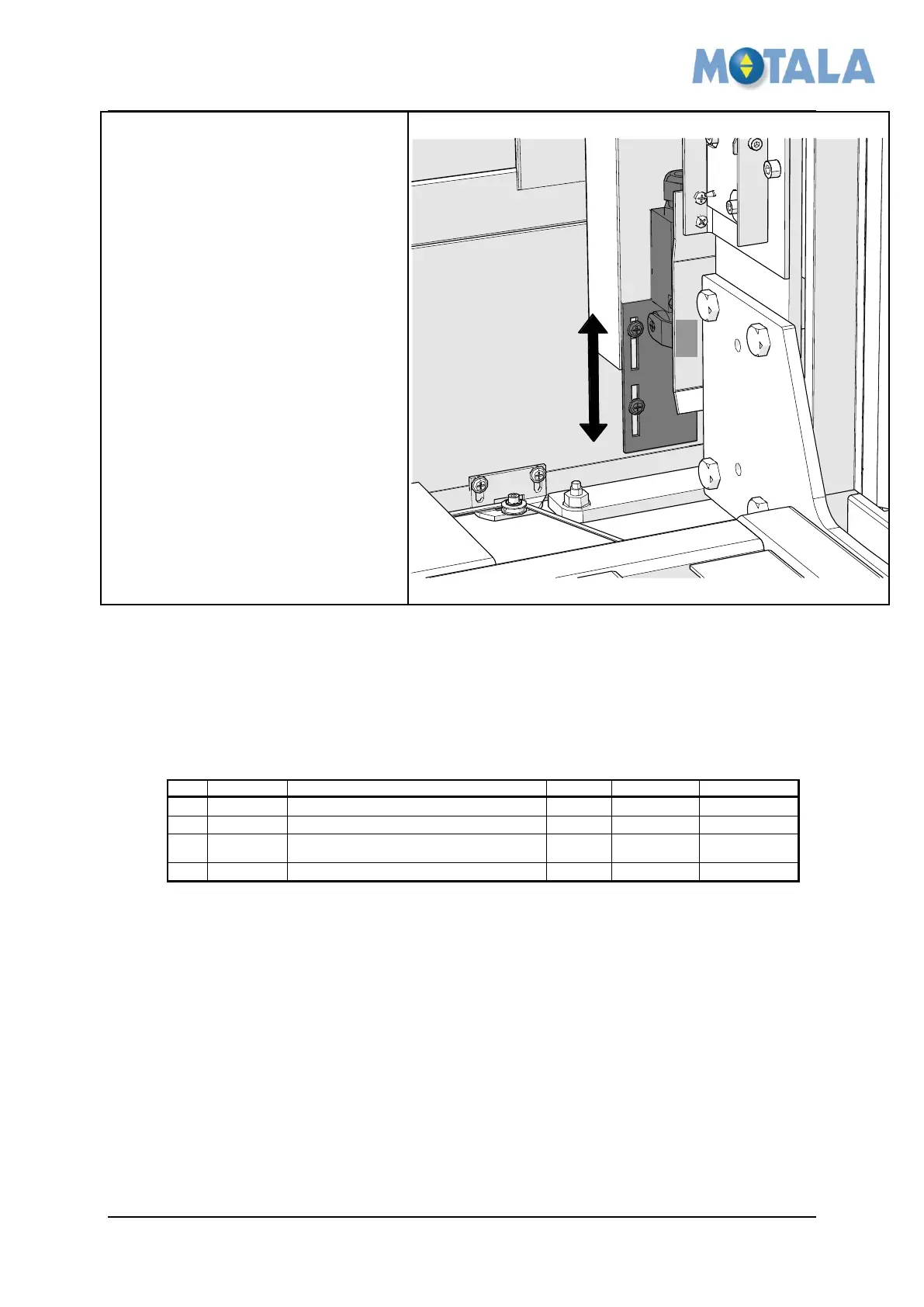

Adjustment of the limit switches
positions
1. Place the lower switch so that
the ridge affects the switch 25
mm before the platform
reaches the lower floor level.
2. Place the upper switch so that
the cam break the switch just
when the platform reaches the
upper floor level.
6. APPROVALS AND VERSION HISTORY
Compiled by: Designer/Ronnie Sundström
Rev
Date
Description of change
Ref CR
Checked by
Approved by
-
2012-09-05
Draft 1.0
10521
Niklas Adell
Ari Nieminen
A
2012-09-25
New transport safety device
12629
Niklas Adell
Ari Nieminen
B
2013-02-19
Remove slack in the operating handle and
wire
13536
Niklas Adell
Ari Nieminen
C
