Motala MC2000 - Mount the Second Pulley; Example of Pulley Placement

MOTALA MC2000 – Mechanical blocking device
Instruction
© 2012 Motalahissar AB 7 (12) IQ56-03 Rev: B

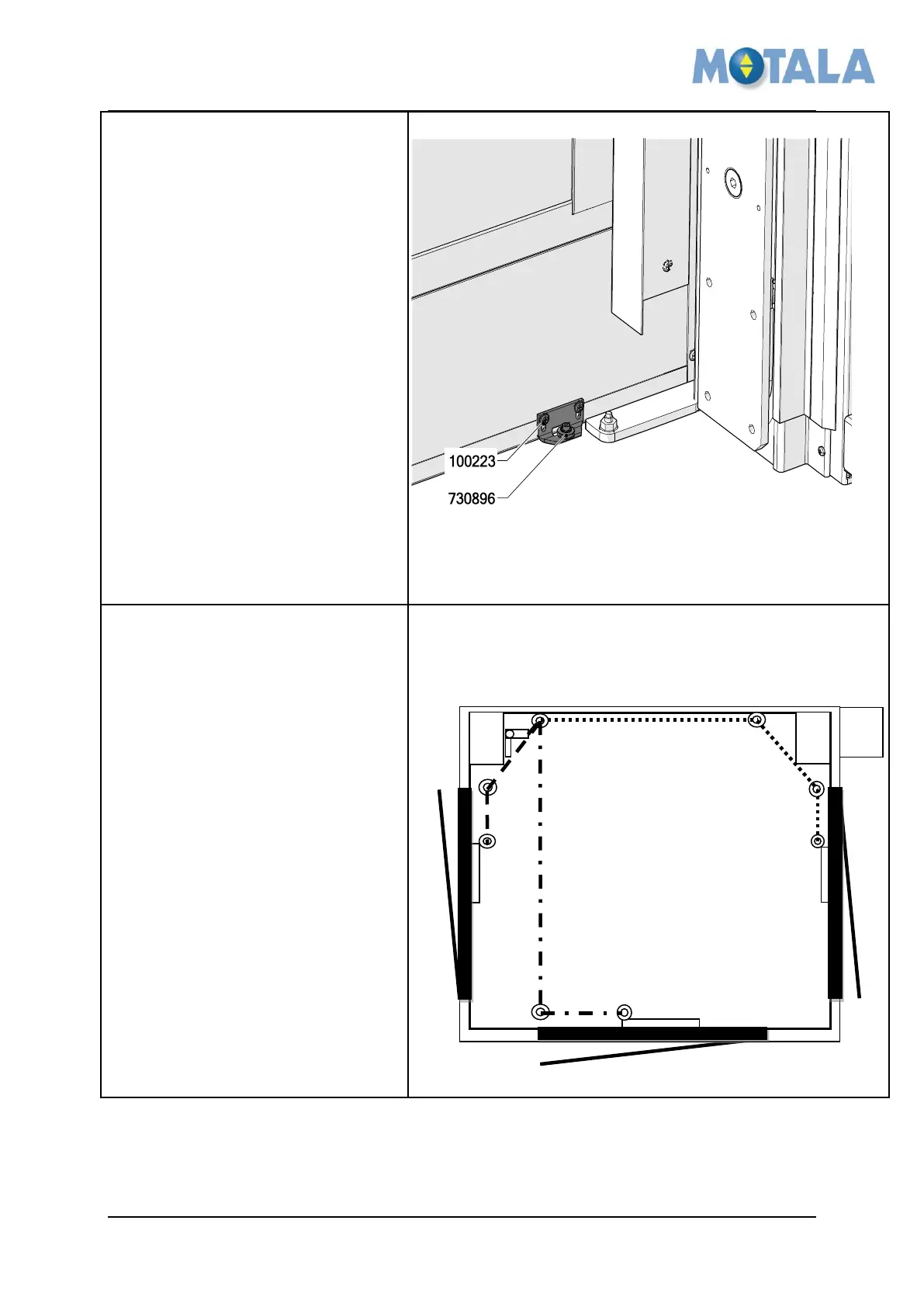

Mount the second pulley
1. The second pulley 730896 is
mounted right next to the floor
bracket.
2. Use 2x 100223.
3. Note that the second pulley
can be placed in a variety of
places depending on the
placement of the mechanical
blocking device and the door
giving access to the pit. See
example below.
Example of pulley placement
1. If the mechanical blocking
device is placed to the left this
is 3 alternative for the pulleys
and the wire. See the picture
for alternative door
placements 1, 2 and 3.
2. If the mechanical blocking
device is place to the right the
alternatives will be mirrored.
1.
2.
3.
