Motala MC2000 - Fitting the threshold

Threshold – Installation instruction
© 2013 Motala Hissar AB 4 (6) IQ56-11 Rev: B

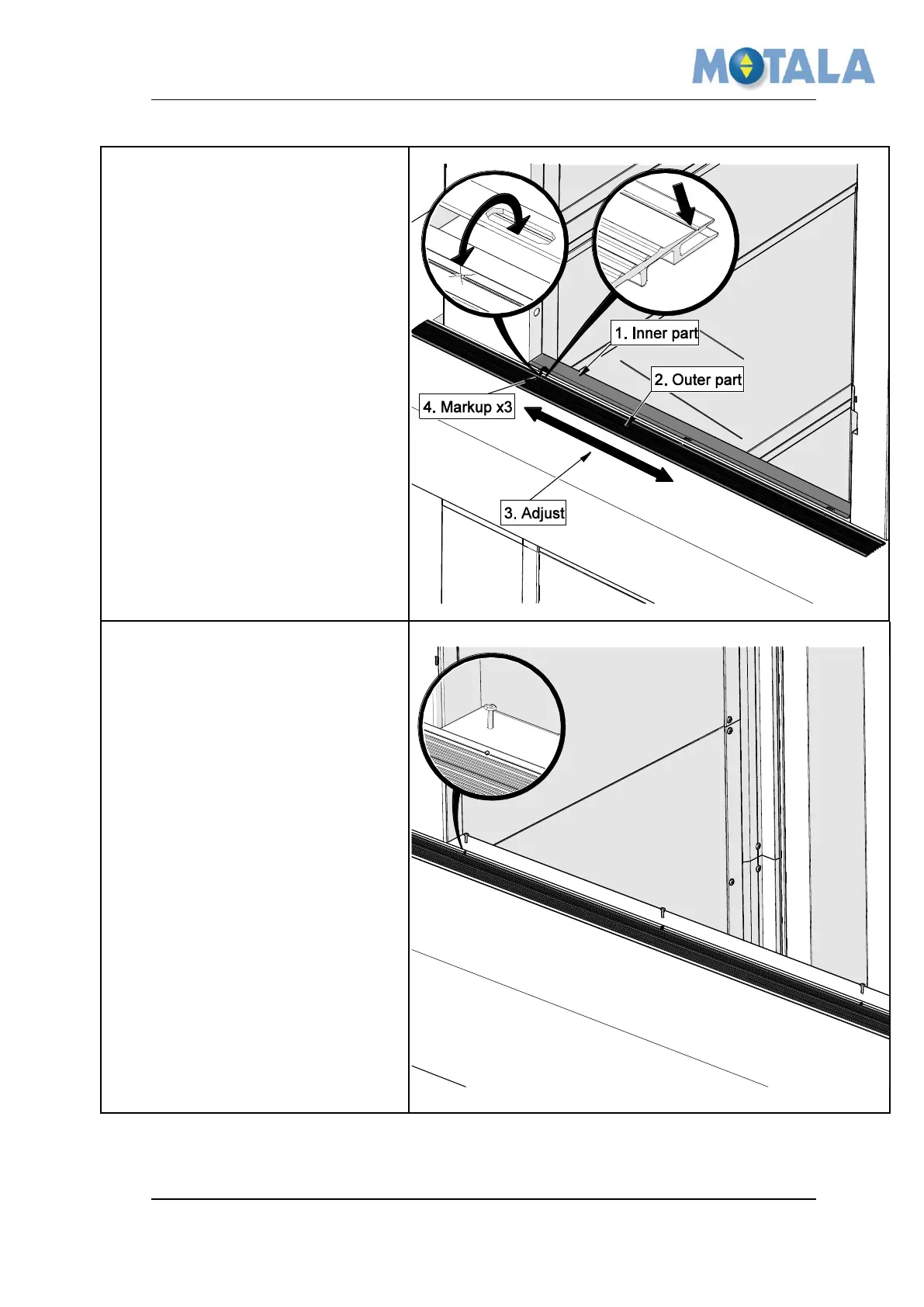

5.2 Fitting the threshold
5.2.1 Markup for pop rivets
1. Temporarily put the inner part
of the threshold in place by
holding it with one of your
hands.
2. With your other hand put the
outer part on the floor.
3. Adjust the outer part sideways
to the right position.
4. In center of each of the 3
grooves in the inner part make
a mark for screws in the
groove of the outer part.
5.2.2 Fit the outer part to the inner
part.
1. Slide the outer part on to the
inner part.
2. Drill 3x 3,3mm holes through
the whole aluminum profile at
the markings.
3. Fit the outer part to the inner
part, use 3x 100268.
