MC2000 – Assembly Instruction Manual
36

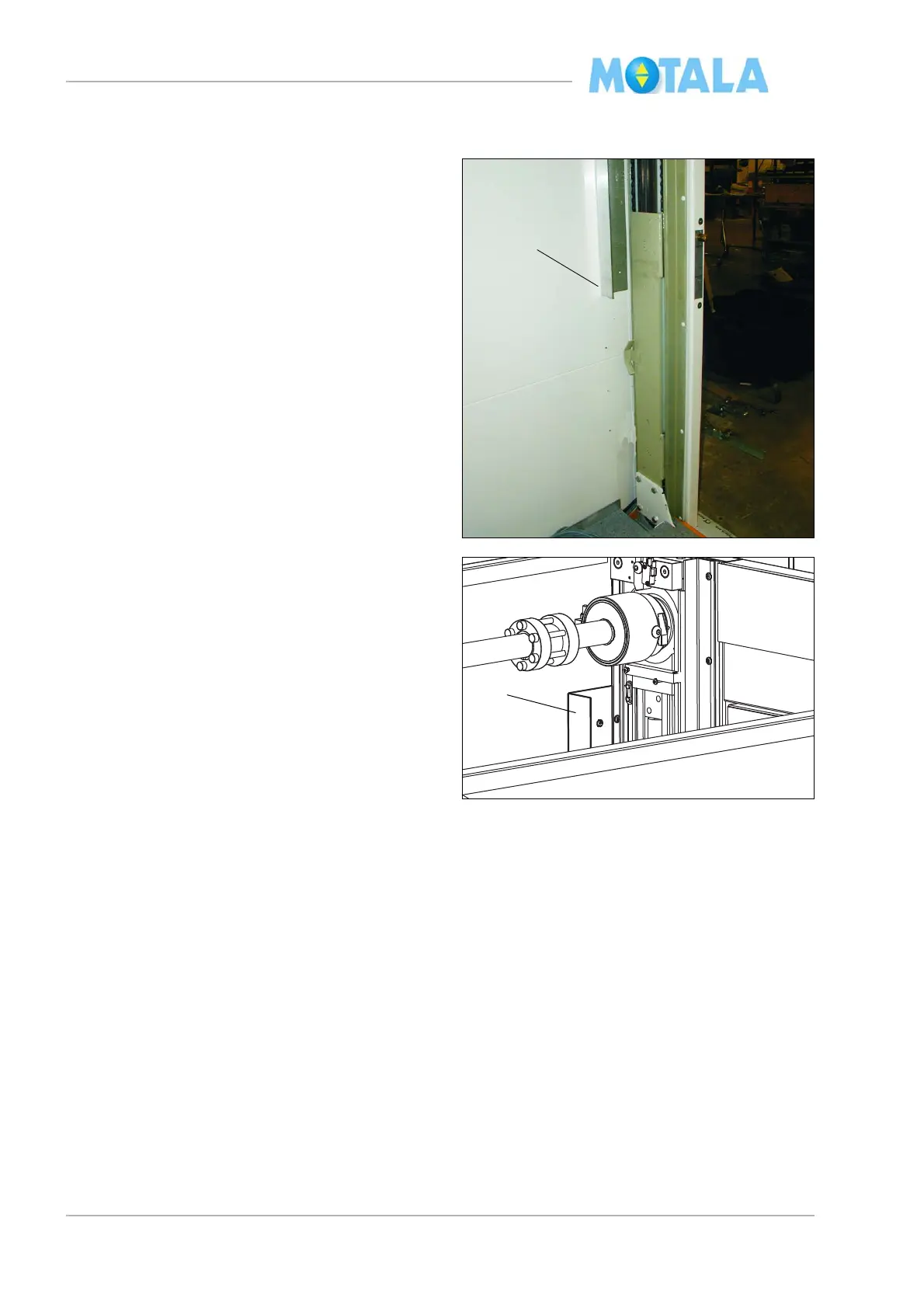

Fixing plates
1. Secure the fixing plates (90x50x2000 mm)
for the “large cover plates” of the guide rails
with screws. The fixing plates must be
edge to edge with the flange of the corner
profiles. Start from the bottom, 50 mm from
the pit. Note! You now have to loose the
62:N switch and re-install it up on the fixing
plate.
2. Make notches for cables and wires, if any.
(
Applies to two-entrance lifts and open ad-
jacent lifts.)
3. The fixing plates must end where the top
t
urning cases of the guide rails begin.
Check that the safety gear can rotate
freely.
