MC2000 – Assembly Instruction Manual
Cover plates
Check before fitting cover plates
Small cover plates
Shaft hood
Check
• that the lift stops at the landings
+ - 10 mm.
• that the locks open properly, even if you pull
the door
and call the lift simultaneously.

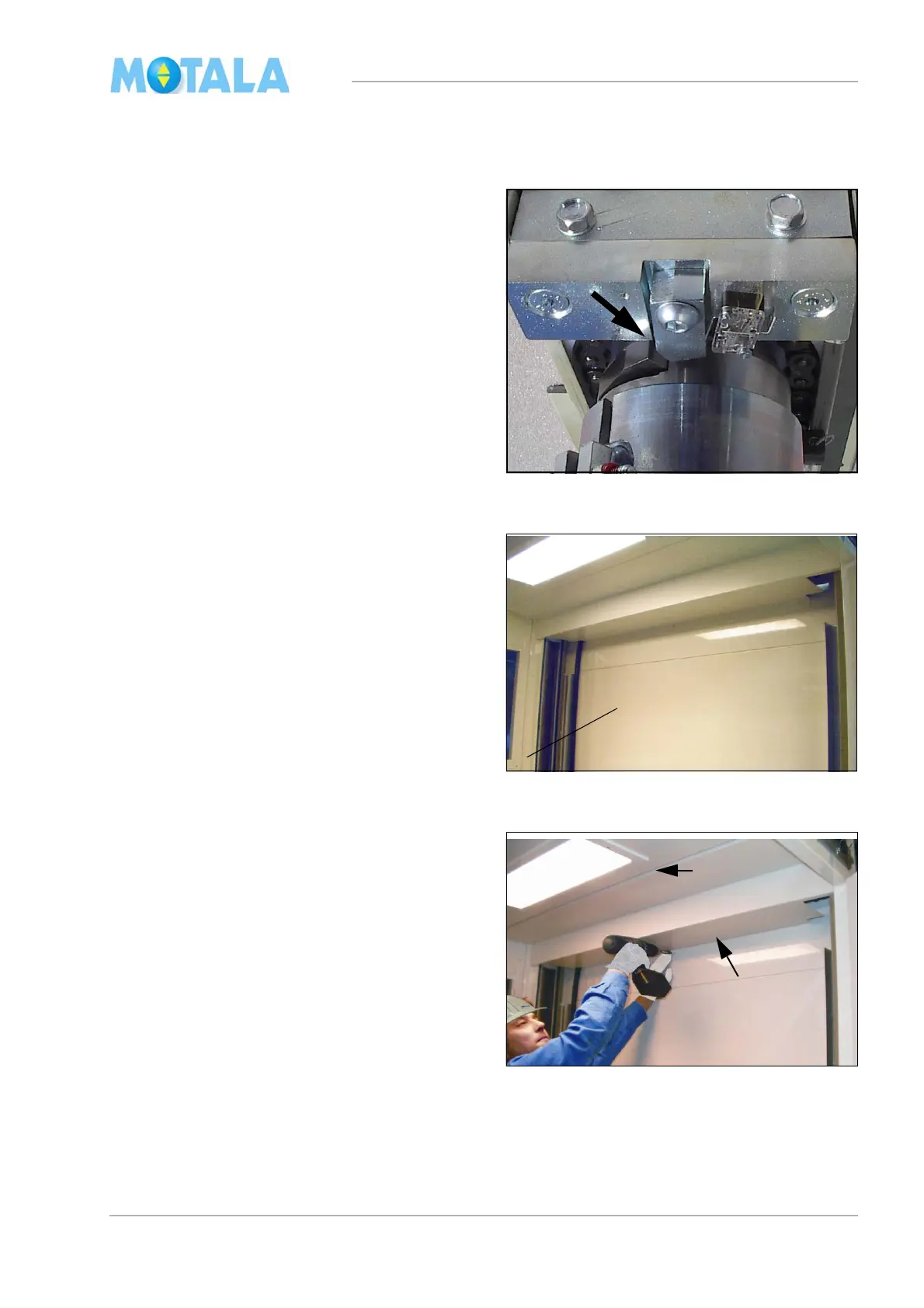

• that the safety gear is placed correctly in re-
lation to the motor position, see illustration,
and t
hat the safetygear testing function
works.
• Check safety according to document IQ-
B
K98_10_C
1. Fasten the small guide rail cover plates
with pop rivets. Start from the bottom and
work upwards in the lift well. Note! Take
care not to fasten pop rivets in the locks
and cables that might be placed behind the
covers.
1. Fit the drive shaft cover plate (1). The illus-
tration shows a lift with 2200 mm ceiling
hei
ght.
2. Lose the screws for the ceiling a little, so
you can push th
e ceiling tight against the
shaft cover plate (2).
3. Then tighten the screws to the ceiling
agai
n.
