MOTALA MC2000 – Mechanical blocking device
Instruction
© 2012 Motalahissar AB 8 (12) IQ56-03 Rev: B

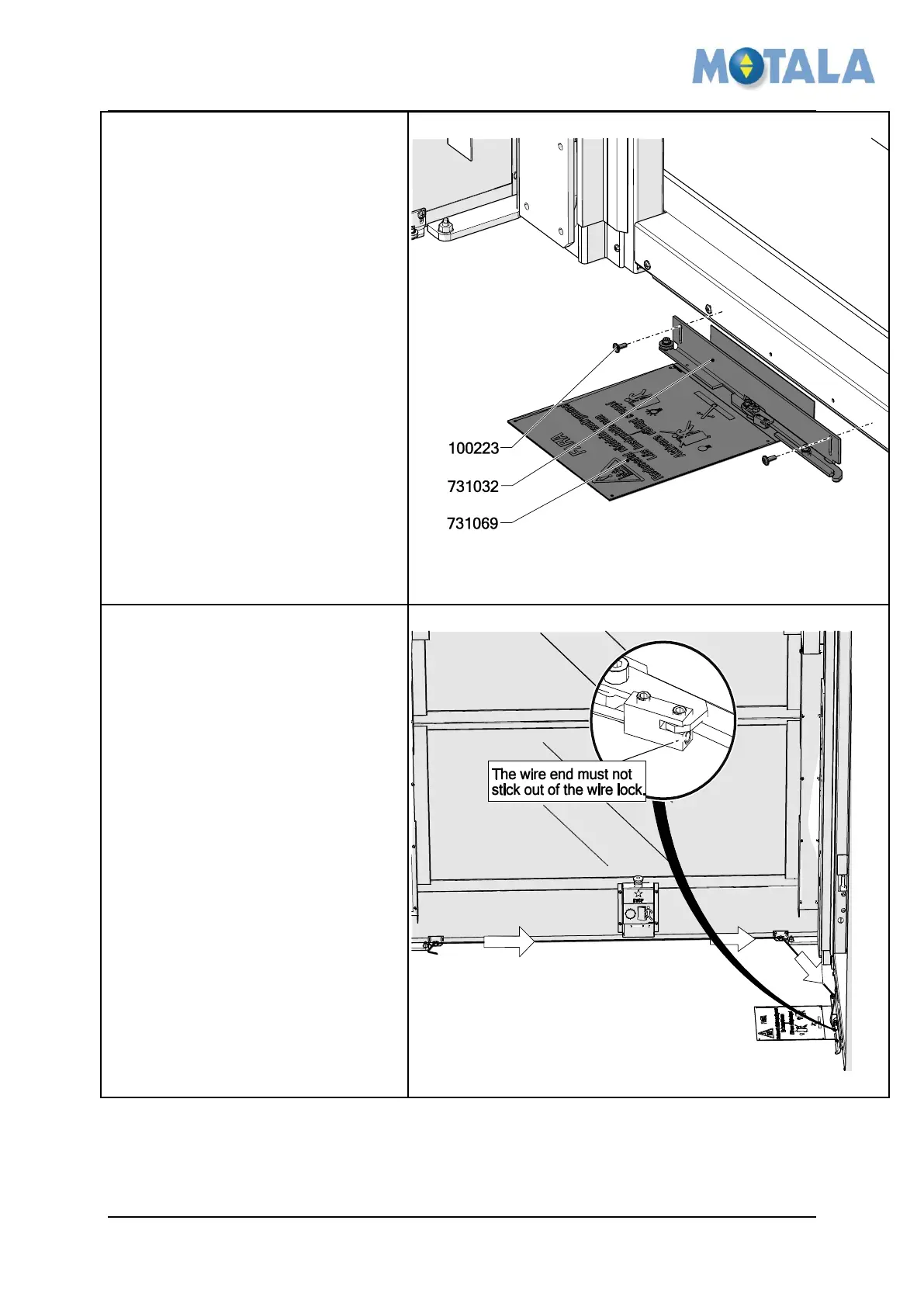

Mount the operating handle and
the warning sign
1. Place the operating handle
731032 inside of the threshold
on the door giving access to
the pit, use 2x 100223.
2. Place the warning sign on the
floor at the bottom of the pit,
fix it with glue or screws.
Mount the wire
1. Pull the wire from the
mechanical blocking device to
the operating handle.
2. The wire end must not stick
out from the wire lock at the
handle, that would prevent the
handle movement.
