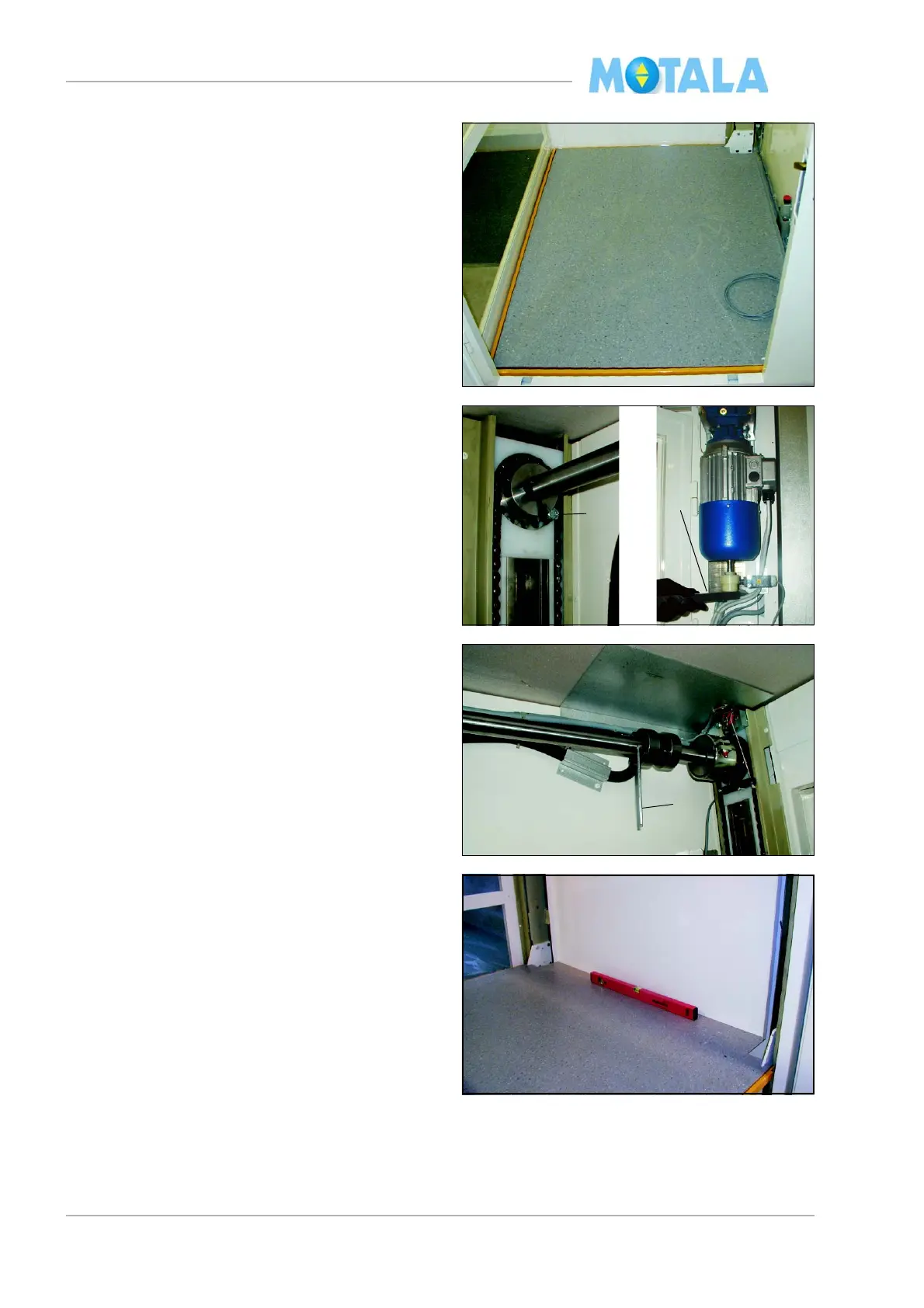

5. Install the floor panel. Check that the bent-
down edge of the floor panel is in close
contact with the floor frame.
6. If necessary, fine-adjust the diagonal
measur
e of the lift well so that the platform
can run freely and smoothly through the
whole lift well.
7. Check with a spirit-level that the platform is
hor
izontal. If it needs adjusting, see below.
Fine adjustment of the platform
1. Run to the topmost landing.
2. Push the emergency stop.
3. Place a 12 mm drill steel or a screw be-
tween the sprocket wheel of the driving
sha
ft and the chain.
4. Lock the drill steel/screw by lowering the
pl
atform somewhat with the hand wheel
tool.
5. Loosen the terminal coupling of the driving
sha
ft.
6. Measure with a spirit-level and adjust with
t
he hand wheel tool to make the platform
floor horizontal.
7. Fasten the terminal coupling (41 Nm).
8. Raise the platform somewhat in order to re-
move the drill steel/the screw.
9. Note! Do not forget to remove the drill
st
eel/the screw.
