MC2000 – Assembly Instruction Manual
22

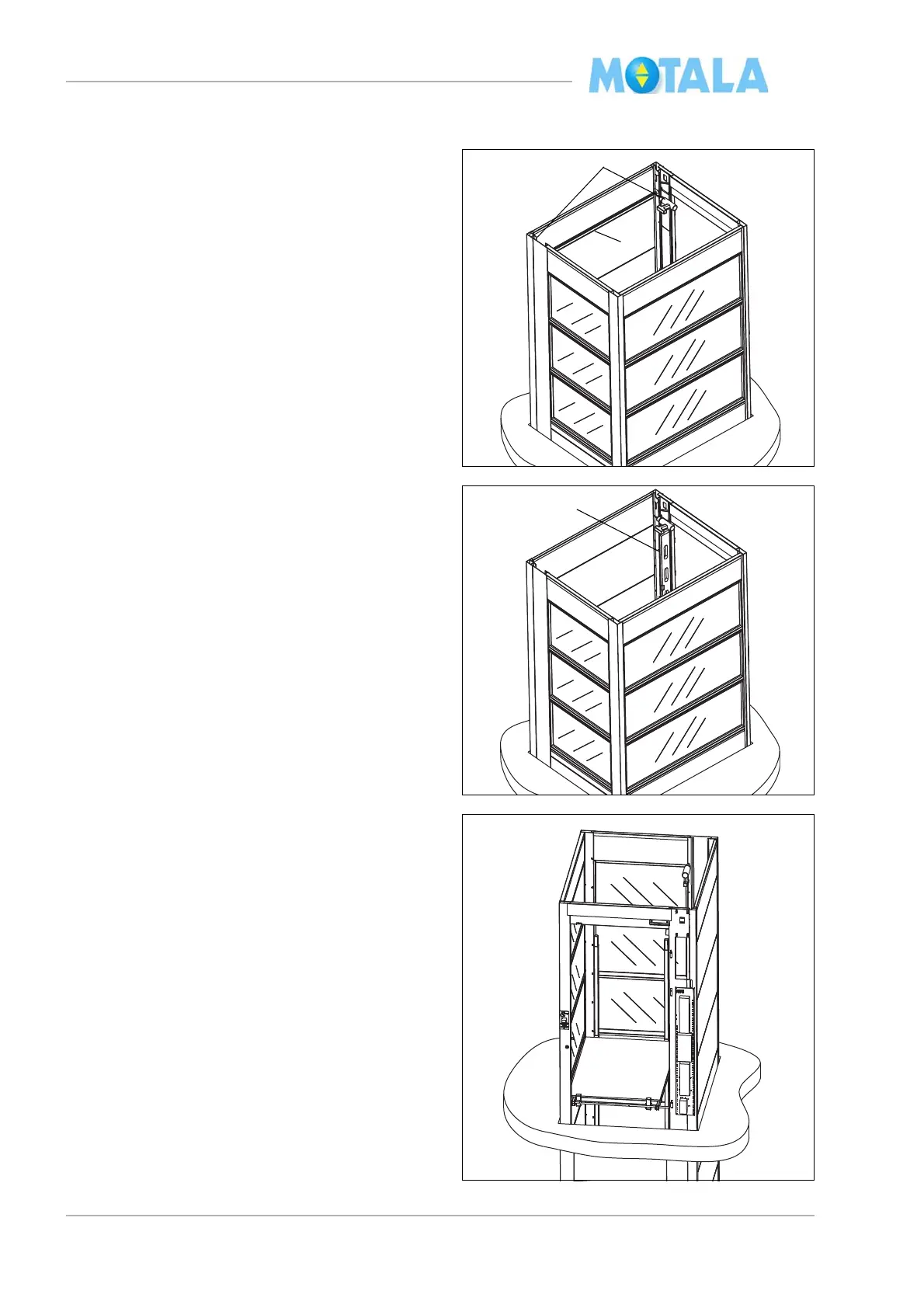

Finishing the upper part of the lift well
Straightening of sides B and D
1. Place the dimension stick on a level with
t
he upper edge of the door frame.
2. Fasten a screw in the upper part of the
door
frame and another screw on the same
level on side C.
3. Align side A with a spirit-level and fasten
t
he remaining screws.
4. Align and fasten the other side in the same
way
.
5. Erect the remaining modules on side C and
sec
ure them with screws. Use a short di-
mension stick.
In order to place the last lift well modules/glass
modul
es on side C in case of minimal roof
space.
• Unfasten the module screws temporarily.
• Pull the corner profiles apart so that the
module
s can be placed in between the cor-
ner profiles.
• Fasten the modules with screws.
