MC2000 – Assembly Instruction Manual
28

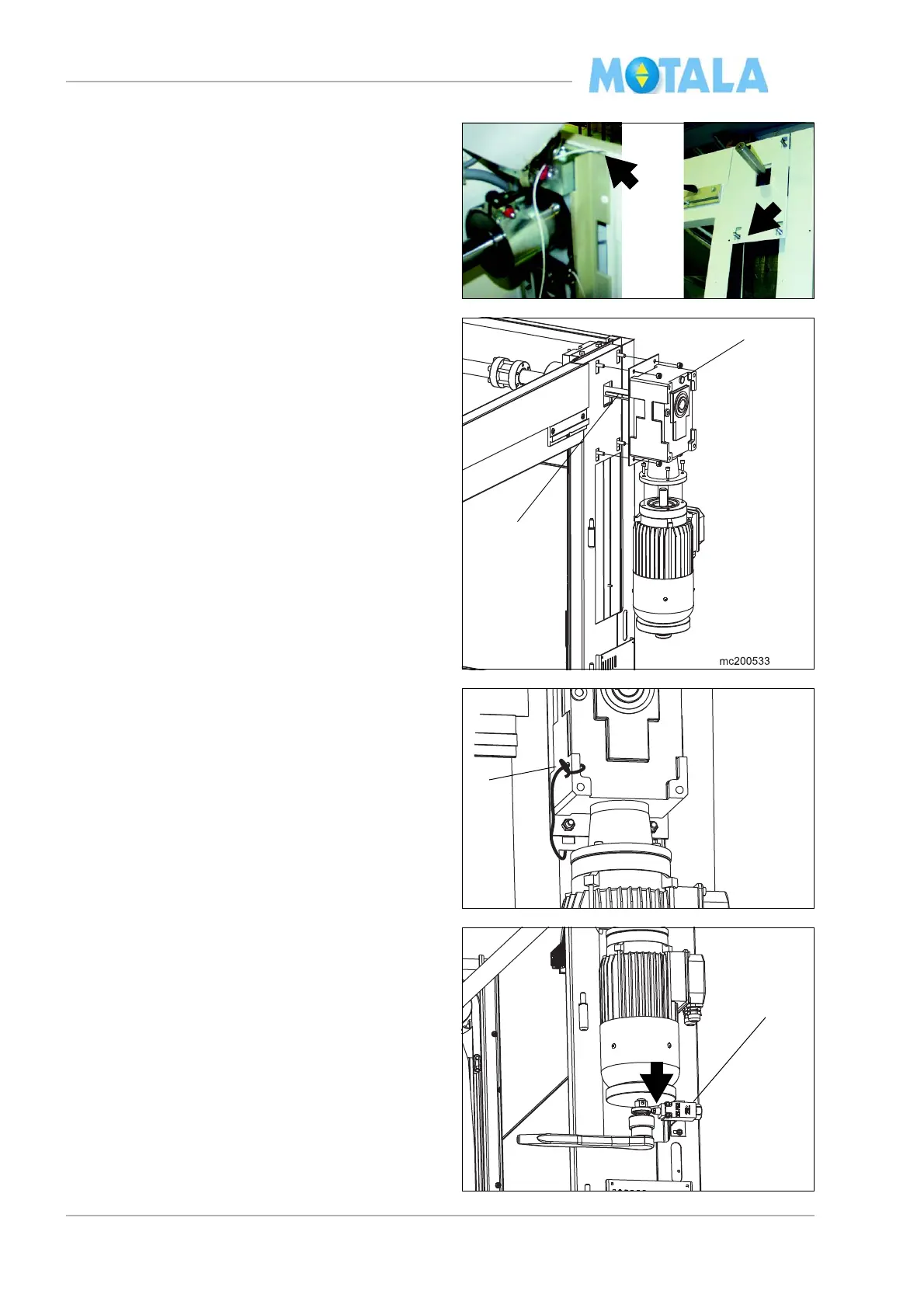

8. Thread on the test device cord of the safety
gear through the hollow space between the
guide rail and the door frame.
9. Fit the two keyways on the short driving
sha
ft before installing the motor package.
10. Change the oil plug at the top of the gear
f
or the enclosed plug with vent holes.
11. Tie the test device cord of the safety gear
i
n an empty screw hole on the gear.
12. Fasten the hand wheel contact 28: with
sc
rews. The contact must be activated be-
fore the hand wheel tool enters the teeth.
