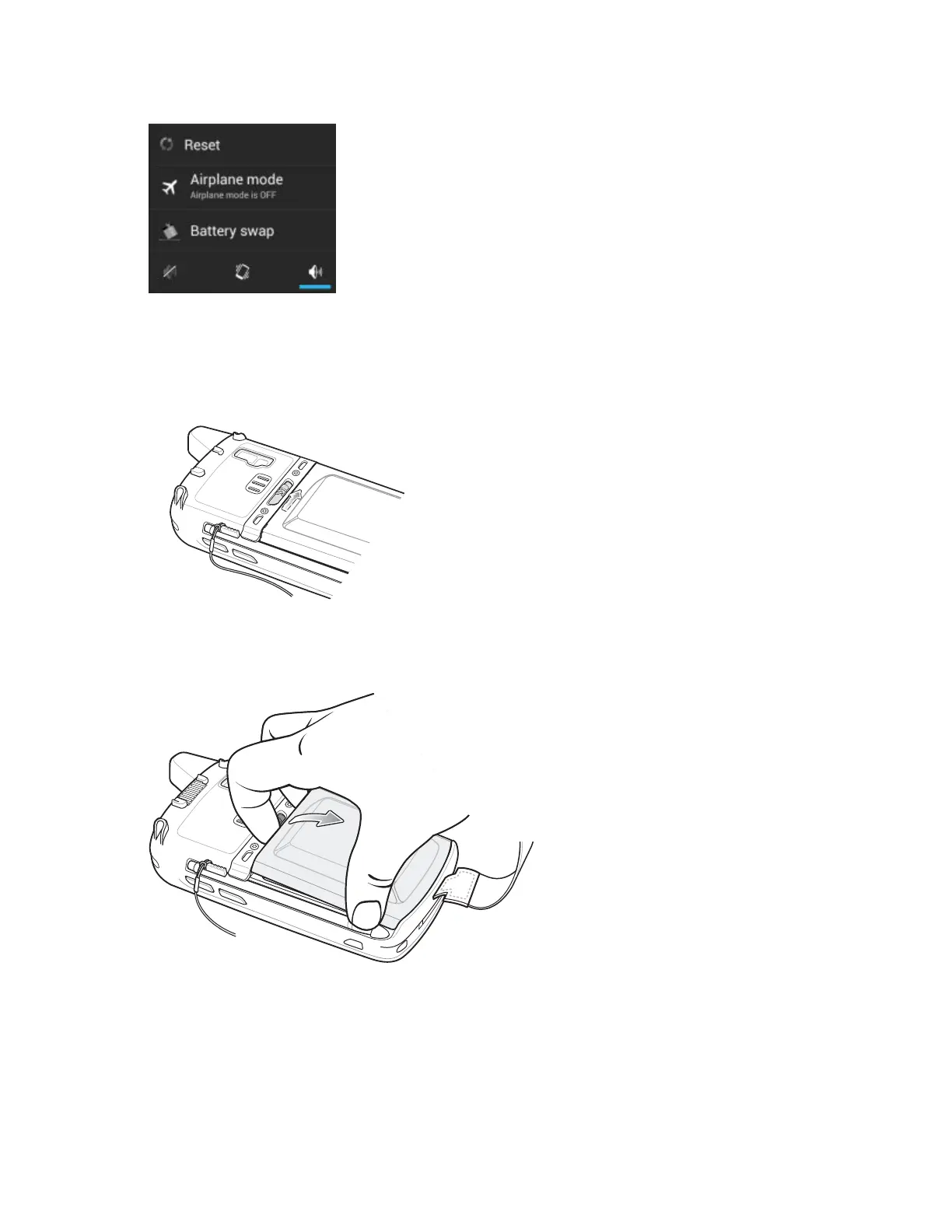

Figure 5: Power Button Menu
4 Touch Battery swap. The red Data Capture LED turns on.
5 Wait for the red Data Capture LED to turn off.
6 Slide the battery latch to the right. The battery ejects slightly.
Figure 6: Slide Latch to the Right
7 Lift the battery from the MC67.
Figure 7: Lift the Battery
8 Insert the replacement battery, bottom first, into the battery compartment in the back of the MC67.
9 Press the battery down until the battery release latch snaps (two clicks) into place.
10 Replace the handstrap.
11 Press the Power button to wake the MC67.
20 | Getting Started
May 2015 | MN000116A02-A
