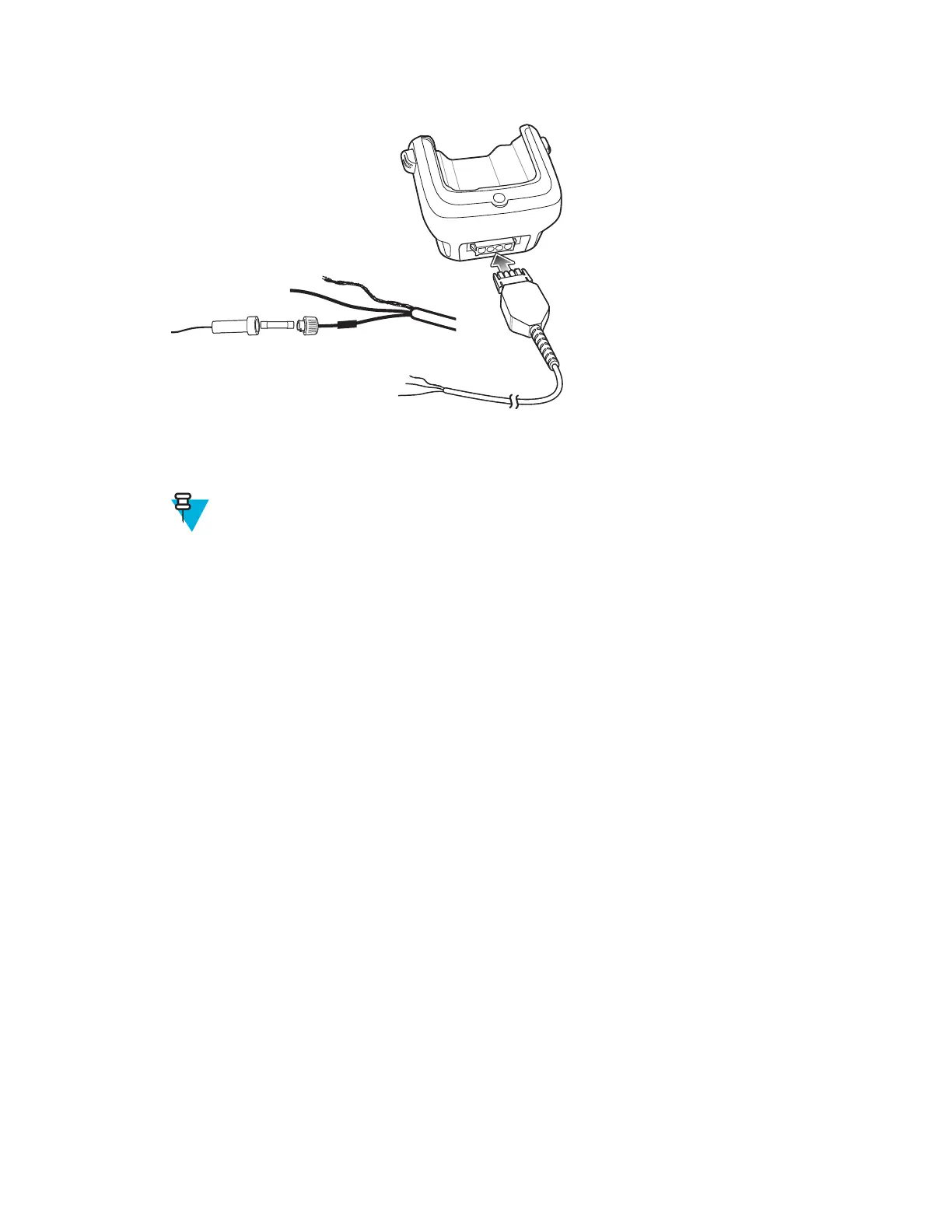

Figure 28: Vehicle Cradle Power Connection
4 Prepare the cable termination.
a Red wire: connect to a +12/24 V vehicle power source.
b Black wire and Shield wire: connect to vehicle ground wire or chassis ground.
Note: How the cable terminates depends on the vehicle. If the vehicle has a power output connector,
then you must attach a mating connector to the end of the power cable. You may be able to connect
to a fuse panel with a simple blade terminal or commercially available connector. Consult the
vehicle Owner’s Manual for information on how to access the power supply in the vehicle.
5 Connect the power input cable into the power port on the cradle.
Postrequisites: To see if the cradle has power, insert the MC67. The Charging LED on the MC67 blinks slowly to
indicate charging and turns solid amber when the battery is completely charged. See LED Charging Indicators on
page 19 for other indications.
Charging the MC67 Battery
Procedure:
1 Insert the MC67 into the vehicle cradle to begin charging.
Accessories | 41
MN000116A02-A | May 2015
