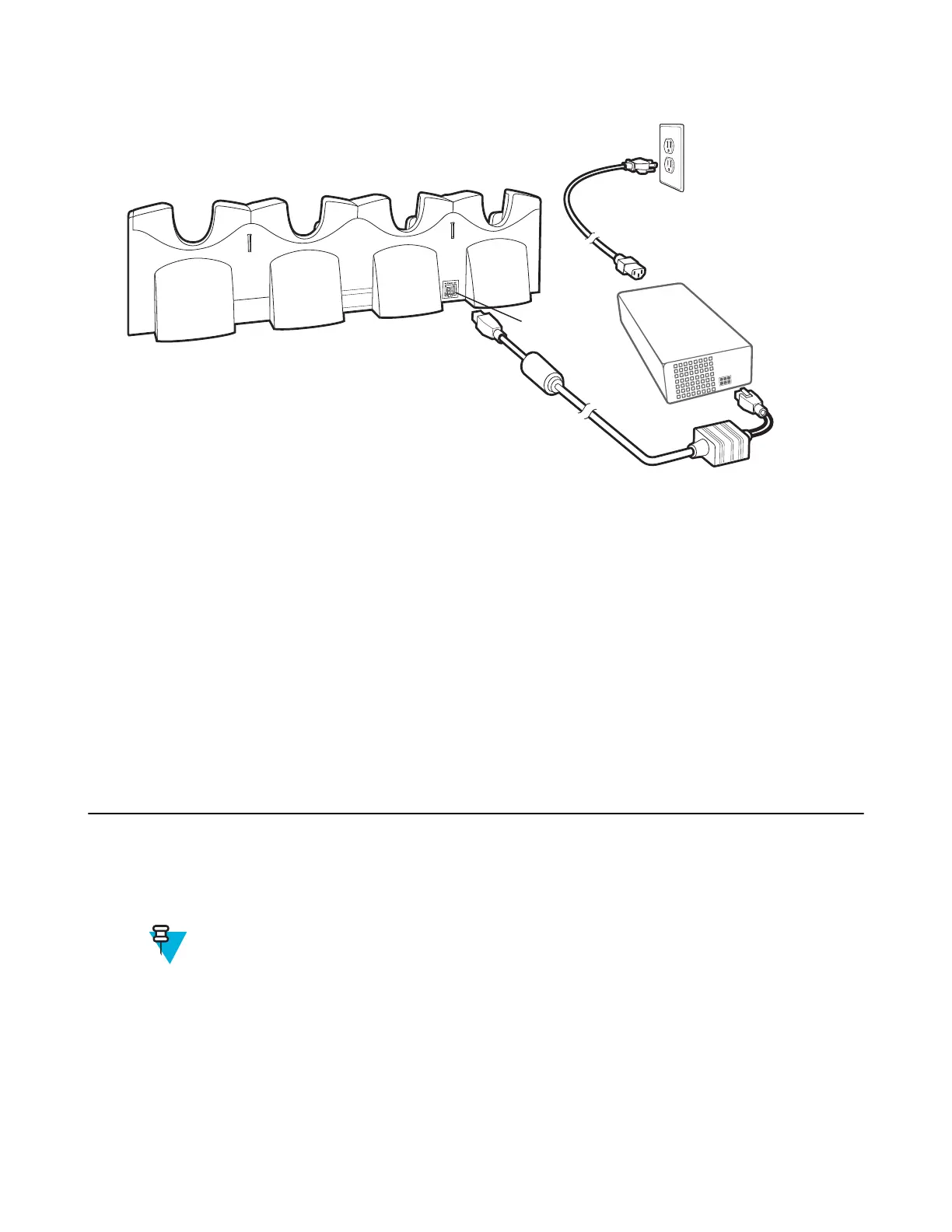

Figure 21: Four Slot Charge Only Cradle Setup
Charging the MC67
Insert the MC67 into a slot to begin charging. The MC67’s Charging/Battery Status LED shows the status of the
battery charging in the MC67.
The 3600 mAh battery fully charges in approximately six hours.
Charging Temperature
Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). Charging is intelligently controlled by the
MC67.
To accomplish this, for small periods of time, the MC67 alternately enables and disables battery charging to keep the
battery at acceptable temperatures. The MC67 indicates when charging is disabled due to abnormal temperatures via
its LED.
Wall Mount Bracket
Use the optional Wall Mount Bracket to mount a four slot cradle to a wall. To attach the Wall Mount Bracket:
Procedure:
1 Use the Wall Mount Bracket as a template and mark the locations of the four mounting screws.
Note: Use fasteners appropriate for the type of wall and the Wall Mount Bracket mounting slots. The
Wall Mount Bracket mounting slots are designed for a fastener with a #8 pan head. Fasteners must be
able to hold a minimum of 4.9 Kg (10.8 lbs).
2 Mount the fasteners to the wall. The screw heads should protrude about a half of an inch from the wall.
3 Slip the Wall Mount Bracket over the screw heads and slide the bracket down over the screw heads.
4 Tighten the screws to secure the bracket to the wall.
36 | Accessories
May 2015 | MN000116A02-A
