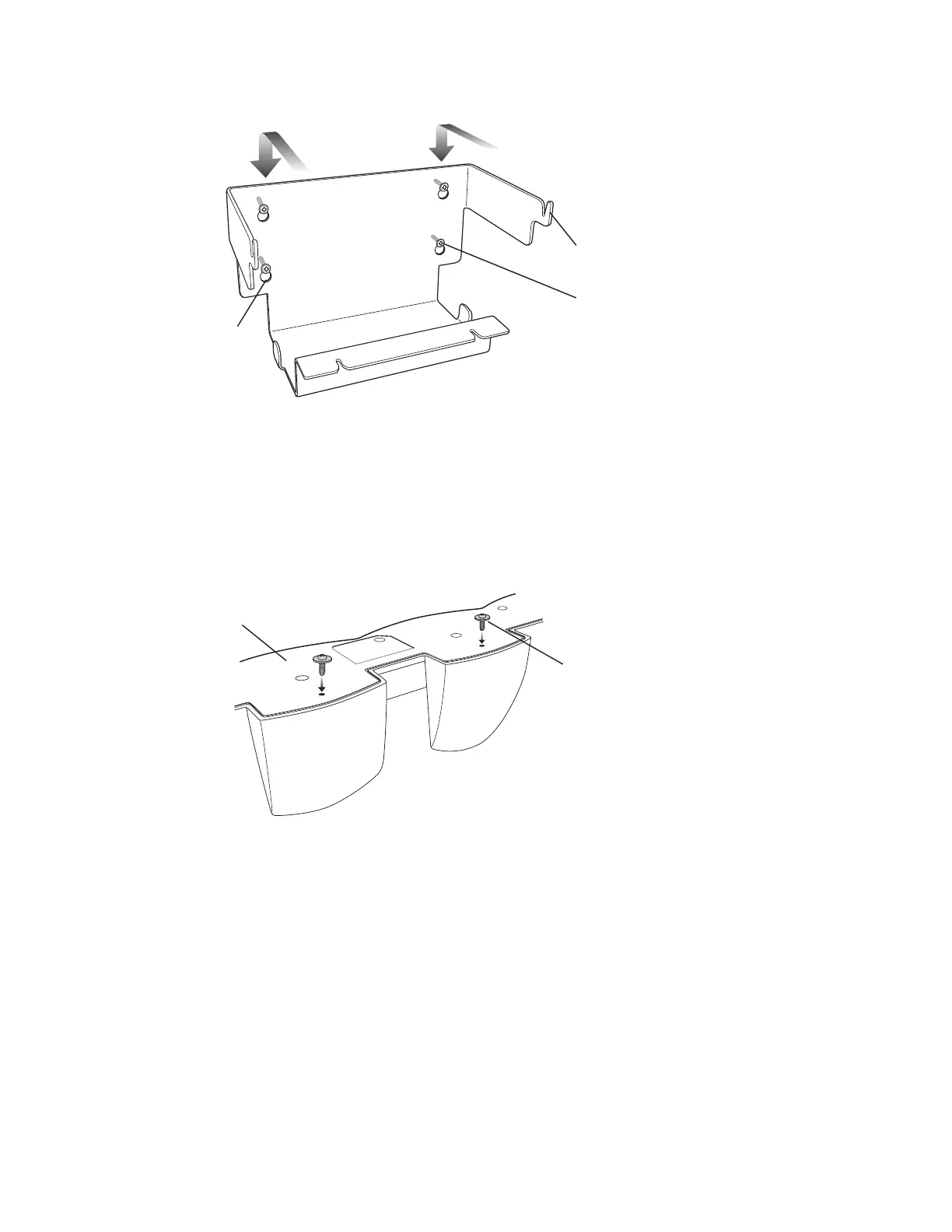

Figure 22: Wall Mount Bracket
Mounting Screw (4)
Mounting Tab (2)
Mounting Slot
Mounting a Four Slot Cradle
To mount a four slot cradle:
Procedure:
1 Screw the supplied screws into the bottom of the four slot cradle. The screw heads should protrude about a quarter
of an inch from the cradle.
Figure 23: Cradle Mounting Screws
2 Align the Wall Mount Bracket mounting tabs with the mounting slots in the back of the four slot cradle. Slip the
two mounting tabs into mounting slots.
3 Swing the four slot cradle down onto the mounting bracket and align the mounting screws so that they fit into the
screw slots.
Accessories | 37
MN000116A02-A | May 2015
