Spare Battery LED (on cradle) Indication
Solid Amber Spare battery is fully charged.
Fast Blinking Amber Charging error.
Off Not charging.
Charging Temperature
Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). Charging is intelligently controlled by the
MC67.
To accomplish this, for small periods of time, the MC67 or cradle alternately enables and disables battery charging to
keep the battery at acceptable temperatures. The MC67 or cradle indicates when charging is disabled due to abnormal
temperatures via its LED.
Four Slot Ethernet Cradle
This section describes how to set up and use a Four Slot Ethernet cradle with the MC67.
The Four Slot Ethernet cradle:
Provides 5.4 VDC power for operating the MC67.
Connects the MC67 (up to four) to an Ethernet network.
Simultaneously charges up to four MC67s.

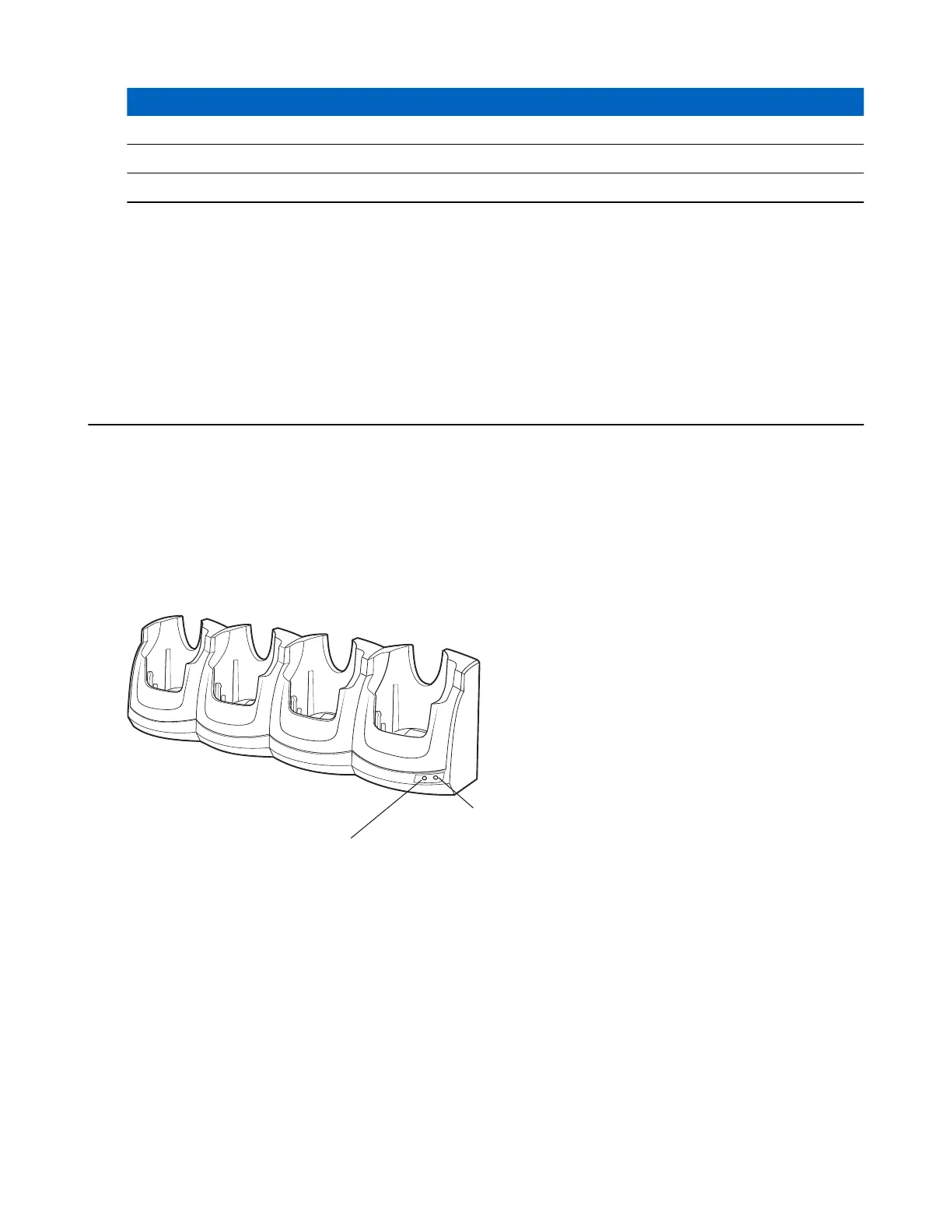

Figure 16: Four Slot Ethernet Cradle
Green 100 LED (CRD5501-4001ER)
Green 1000 LED (CRD5501-4001ER)
CRD5501-4001ER Setup
Connect the Four Slot Ethernet cradle to a power source and to an Ethernet switch, router, or hub, or a port on the
host device.
Accessories | 31
MN000116A02-A | May 2015
