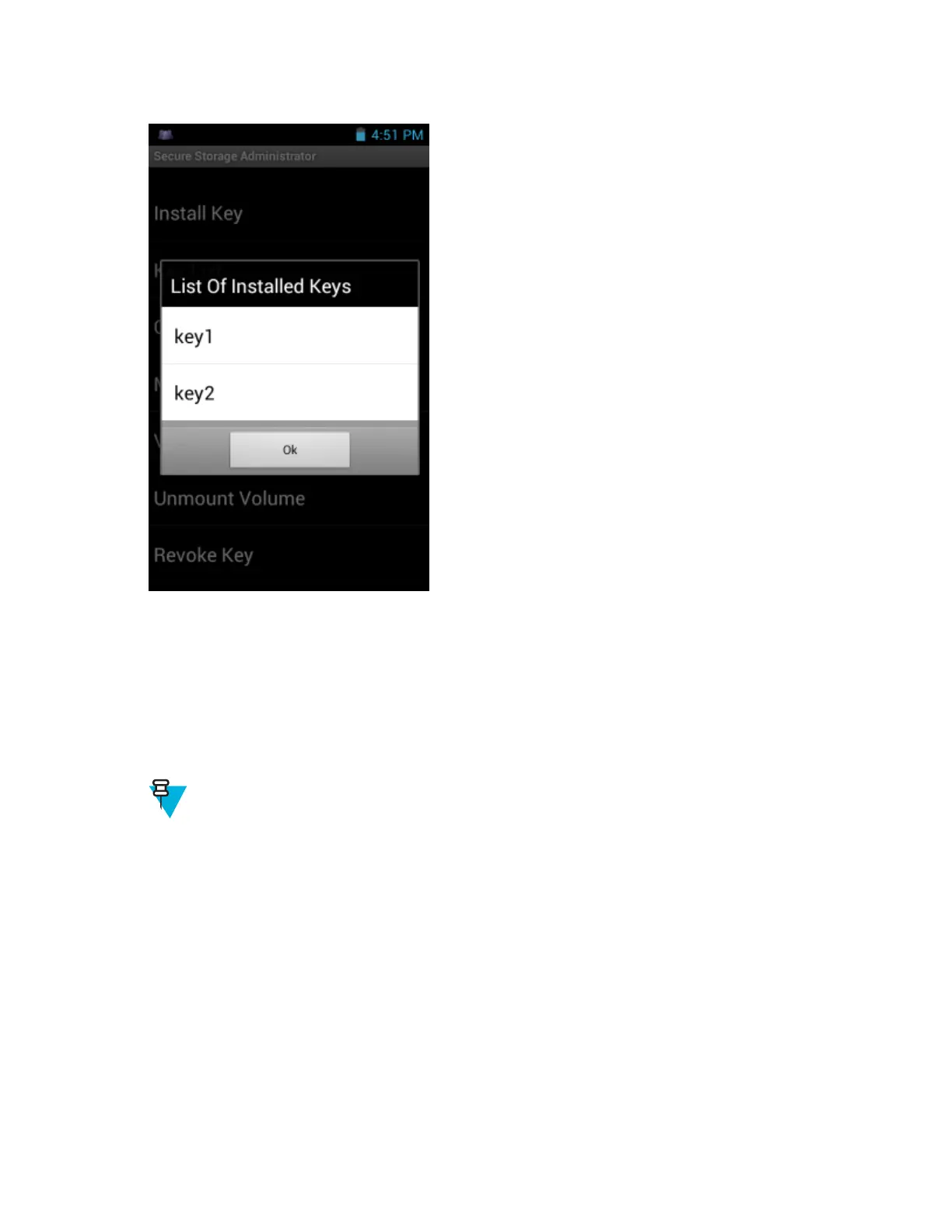

Figure 77: List of Keys
2 Touch OK.
Deleting a Key
Procedure:
1 Touch Revoke Key.
2 Touch the key to deleted.
3 Touch OK.
Note: If a key is deleted then all the volumes created using that key are un-mounted. The same key is
required to re-mount the volume.
Volumes
Creates an encrypted file system (volume) on the device. The user must have Administrative privileges to create a
volume.
Creating Volume Using EFS File
Procedure:
1 Create an efs file. See Creating an EFS File on page 106 for instruction on creating the efs file.
2 Copy the keyfile and efsfile files to root of the microSD card. See USB Communication on page 55.
3 Touch Create Volume.
4 Touch Import.
5 Touch OK. The message Successfully Created the Volume appears briefly.
104 | Administrator Utilities
May 2015 | MN000116A02-A
