LED Indicators (CRD5501-4001ER)
There are two green LEDs on the front of the cradle and two green LED on the Primary port on the back of the cradle.
These green LEDs light and blink to indicate the data transfer rate. When the LEDs are not lit the transfer rate is 10
Mbps.
Table 4: CRD5501-4001ER LED Indicators
Data Rate Left 1000 LED (Green) Right 100 LED (Green)
1 Gbps On/Blink Off
100 Mbps
Off On/Blink
10 Mbps Off Off
Ethernet Settings
The following settings can be configured when using Ethernet communication:
• Proxy Settings
• Static IP.
Configuring Ethernet Proxy Settings
The MC67 includes Ethernet cradle drivers. After inserting the MC67, configure the Ethernet connection:
Procedure:
1
Touch .
2
Touch .
3 Touch Ethernet.
4 Slide the switch to the ON position.
5 Place the MC67 into the Ethernet cradle slot.
6 Touch and hold Eth0 until the menu appears.
7 Touch Modify Proxy.

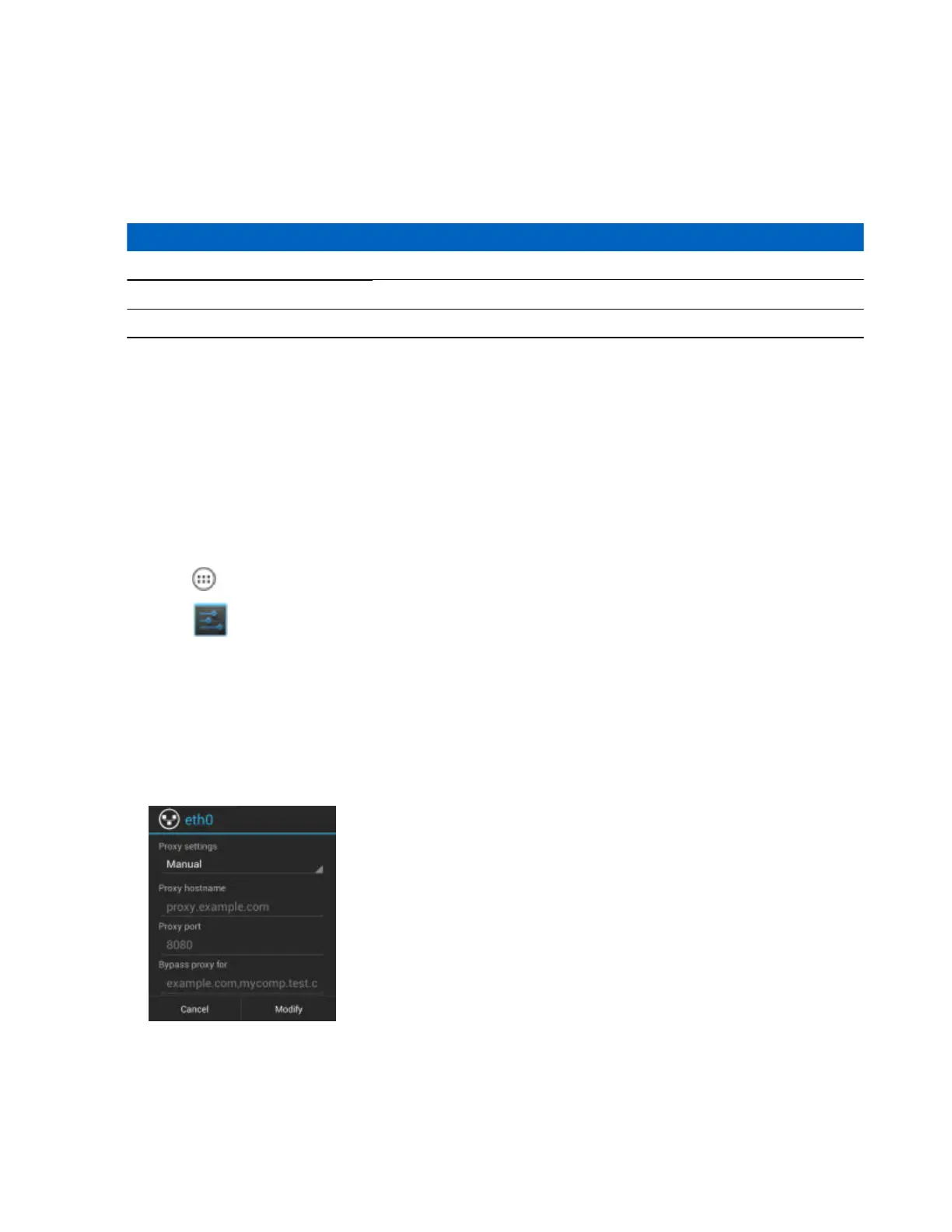

Figure 19: Ethernet Proxy Settings
8 Touch the Proxy settings drop-down list and select Manual.
9 In the Proxy hostname field, enter the proxy server address.
10 In the Proxy port field, enter the proxy server port number.
Accessories | 33
MN000116A02-A | May 2015
