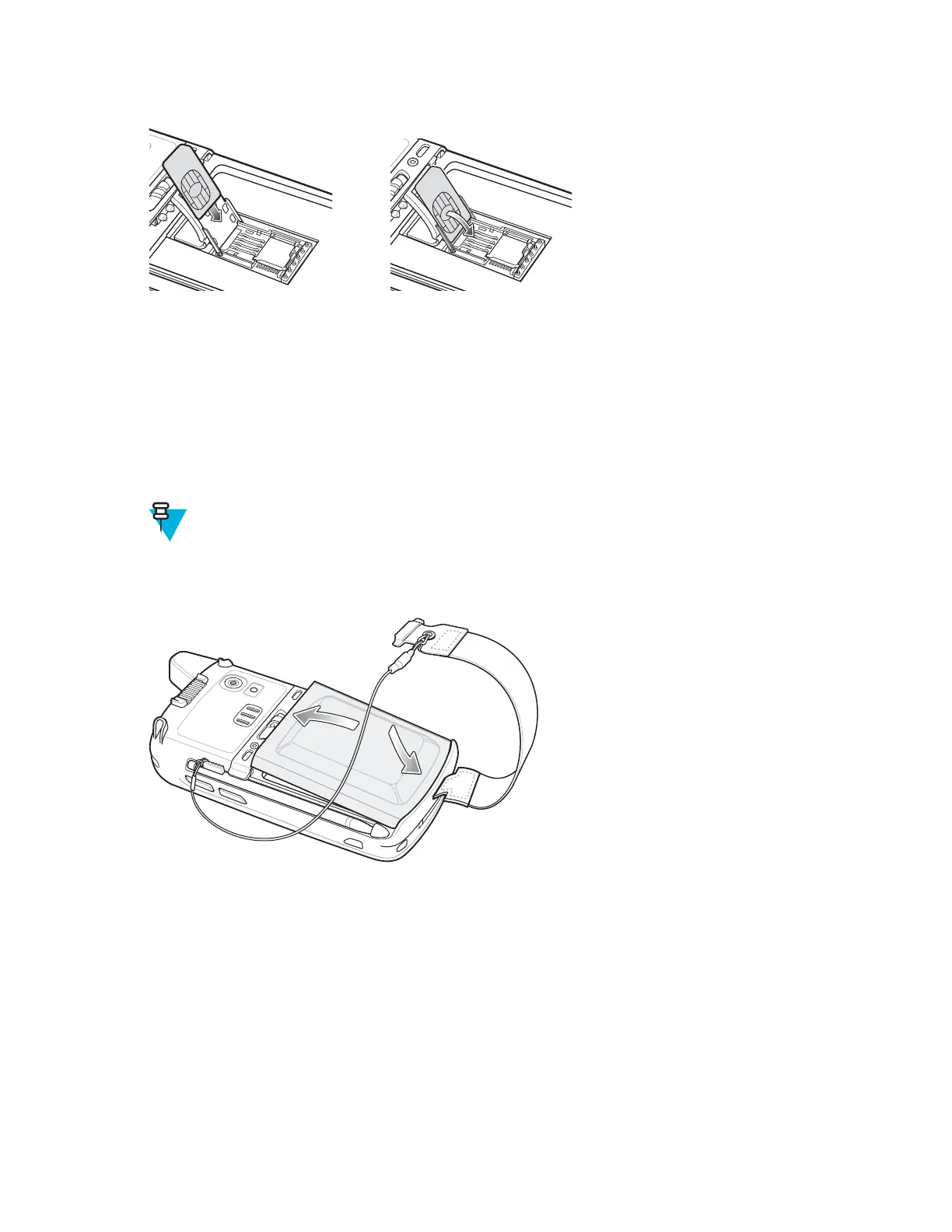

Figure 3: Inserting the SIM Card
5 Close the SIM card holder door and slide down to lock into place.
6 Close the rubber access door.
7 Install the battery.
Installing the Battery
Procedure:
1 Insert the battery, bottom first, into the battery compartment in the back of the MC67.
2 Press the battery down into the battery compartment until the battery release latch snaps (two clicks) into place.
Note: If the battery has significant charge, the MC67 turns on.
3 Replace the handstrap.
Figure 4: Inserting the Battery
Charging the Battery
Before using the MC67 for the first time, charge the main battery until the amber Charging/Battery Status light
emitting diode (LED) remains lit. To charge the MC67, use a cable or a cradle with the appropriate power supply. For
information about the accessories available for the MC67, see Accessories on page 27 for more information.
The MC67 is equipped with a backup battery which automatically charges from the fully-charged main battery. When
using the MC67 for the first time, the backup battery requires approximately 40 hours to fully charge. This is also true
any time the backup battery is discharged, which occurs when the main battery is removed for several hours. The
backup battery retains random access memory (RAM) data in memory for at least 10 minutes (at room temperature)
when the MC67’s main battery is removed. When the MC67 reaches a very low battery state, the combination of
main battery and backup battery retains RAM data in memory for at least 36 hours.
For cable and cradle setup and charging procedures refer to the MC67 Integrator Guide.
18 | Getting Started
May 2015 | MN000116A02-A
