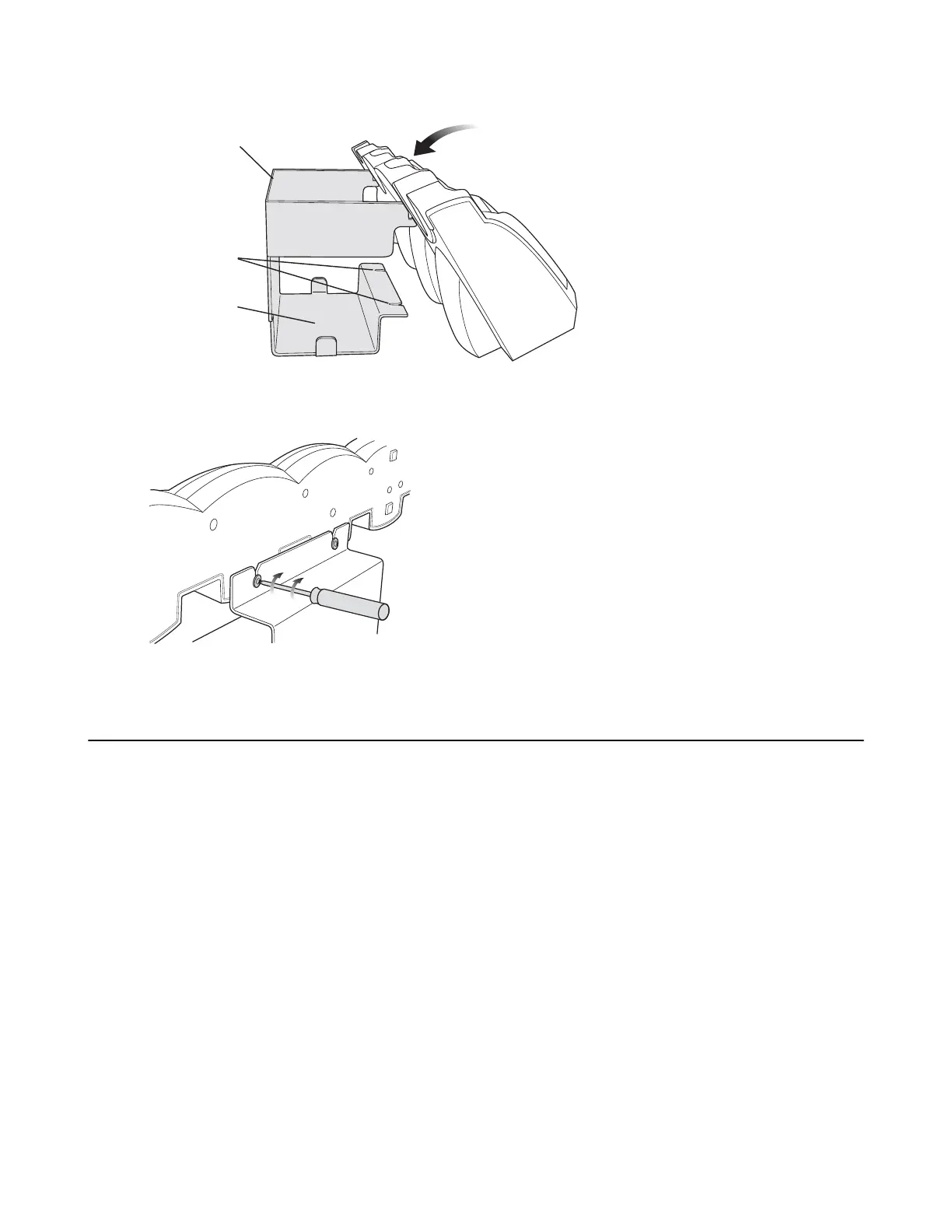

Figure 24: Wall Mount Bracket
Wall Mount
Bracket
Screw Slots
Power Supply
Well
4 Tighten the mounting screws to secure the four slot cradle to the bracket.
Figure 25: Mounting Screws
5 Connect power. The power supply should be located in the power supply well.
VCD5500 Vehicle Cradle
This section describes how to set up and use a VCD5500 vehicle cradle with the MC67.
Once installed in a vehicle, the cradle:
holds the MC67 securely in place
provides power for operating the MC67
re-charges the battery in the MC67
Requirements
For mounting:
four #8-32 self-locking nuts
four #8 washers
a drill with a #6 drill bit (.204”)
For power connection:
power input cable (optional), p/n 25-61987-01R or 25-128974-01R
UL Listed in-line fuse rated 250V, 5A (included), must be used if not connecting to vehicle’s fuse panel
38 | Accessories
May 2015 | MN000116A02-A
