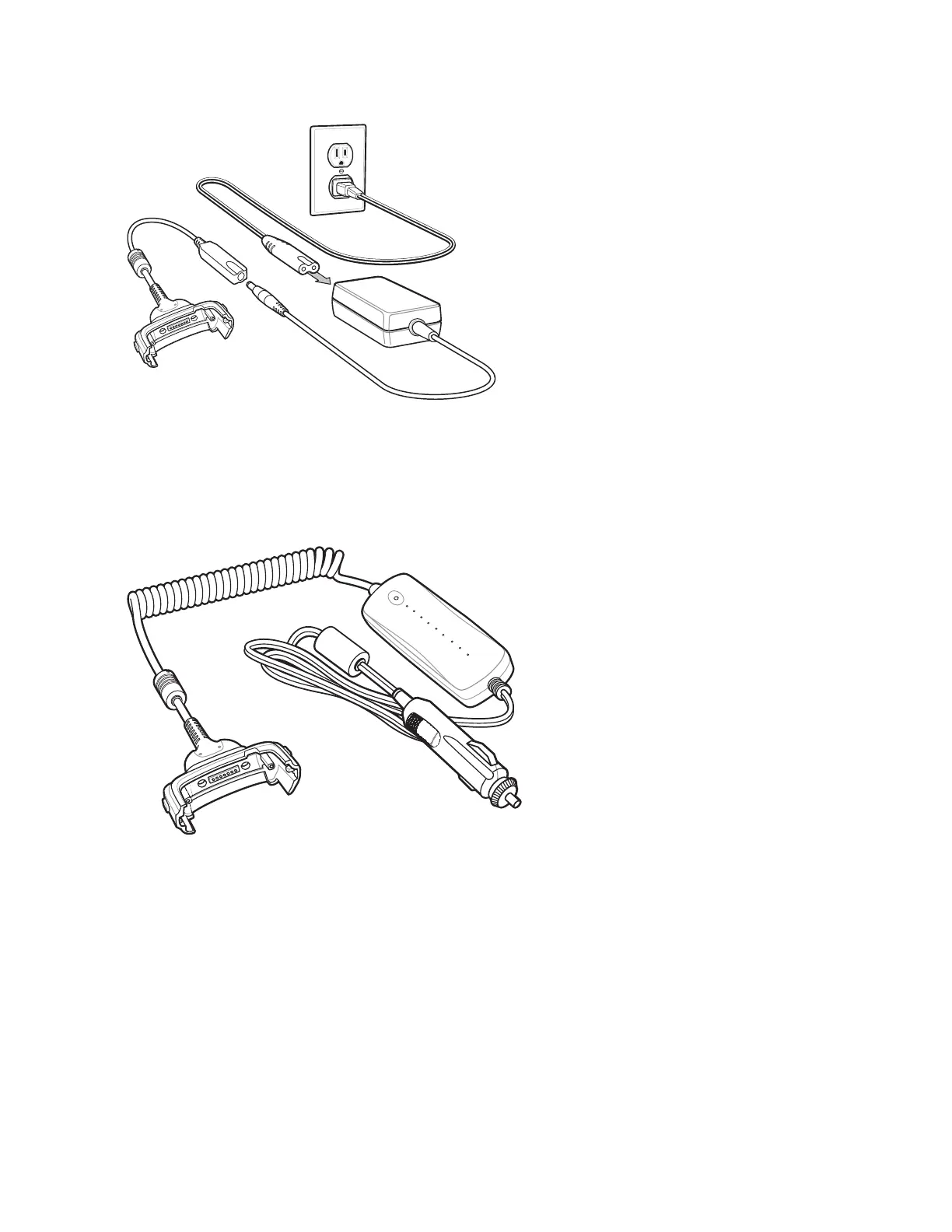

Figure 33: Charge Only Cable Setup
Auto Charge Cable
The Auto Charge cable plugs into a vehicle cigarette lighter and provide the MC67 with operating and charging
power.
Figure 34: Auto Charge Cable
Connecting Cables to the MC67
Procedure:
1 If required, connect the cable power input connector to the Zebra approved power source.
2 Slide the bottom of the MC67 into the connector cup end of the cable until the MC67 is firmly seated in the cup.
3 Slide the two locking tabs up until they both lock into position.
46 | Accessories
May 2015 | MN000116A02-A
