Motorola MC67 - Profile Configuration; Bar Code Input

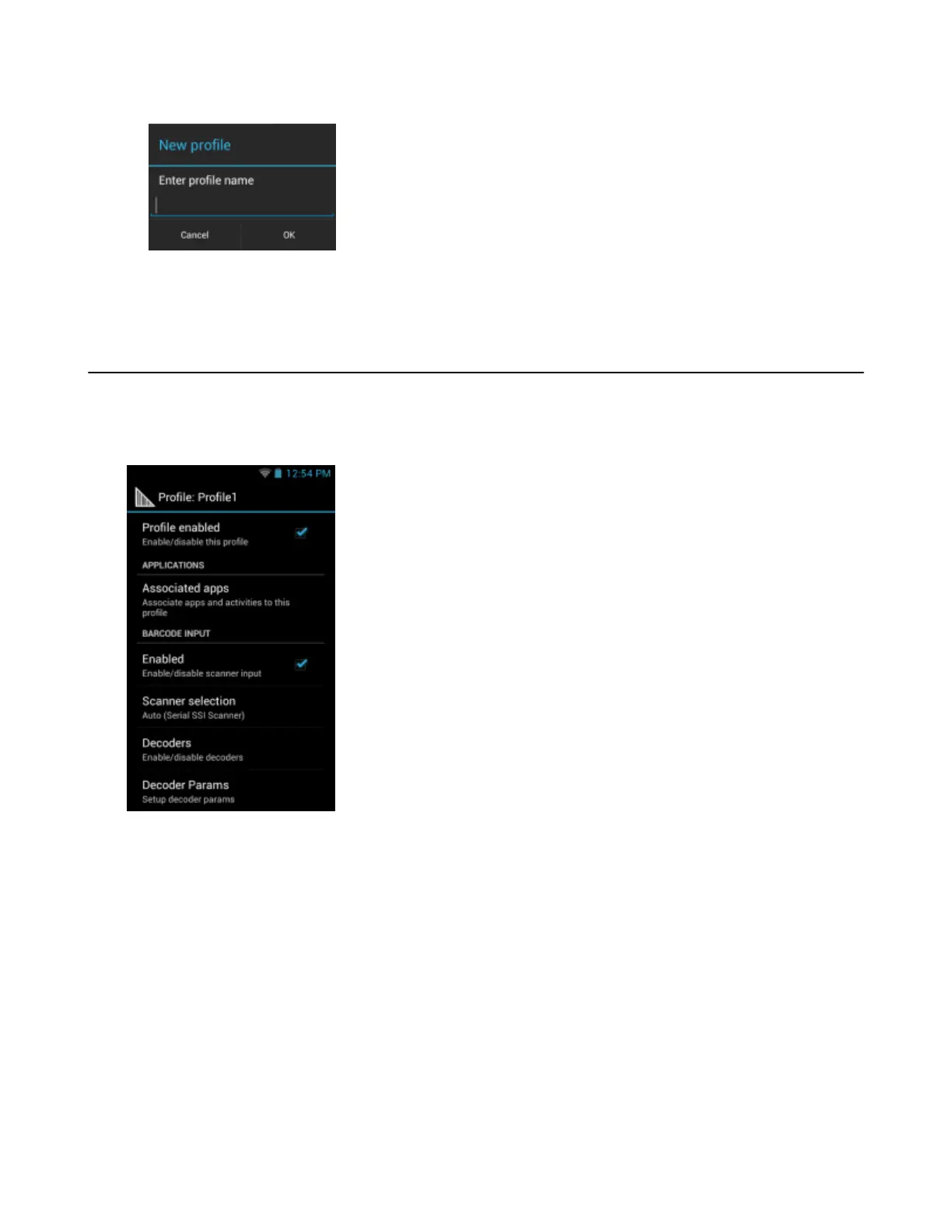

Figure 52: New Profile Name Dialog Box
6 Touch OK.
The new profile name appears in the DataWedge profile screen.
Profile Configuration
To configure the Profile0 or a user-created profile, touch the profile name.
Figure 53: Profile Configuration Screen
The configuration screen lists the following sections:
• Profile enabled
• Applications
• Barcode Input
• MSR Input
• Keystroke output
• Intent Output
• IP Output.
Bar Code Input
Use the Bar Code Input options to configure the Bar Code Scanner Input Plug-in for the profile.
62 | DataWedge Configuration
May 2015 | MN000116A02-A
