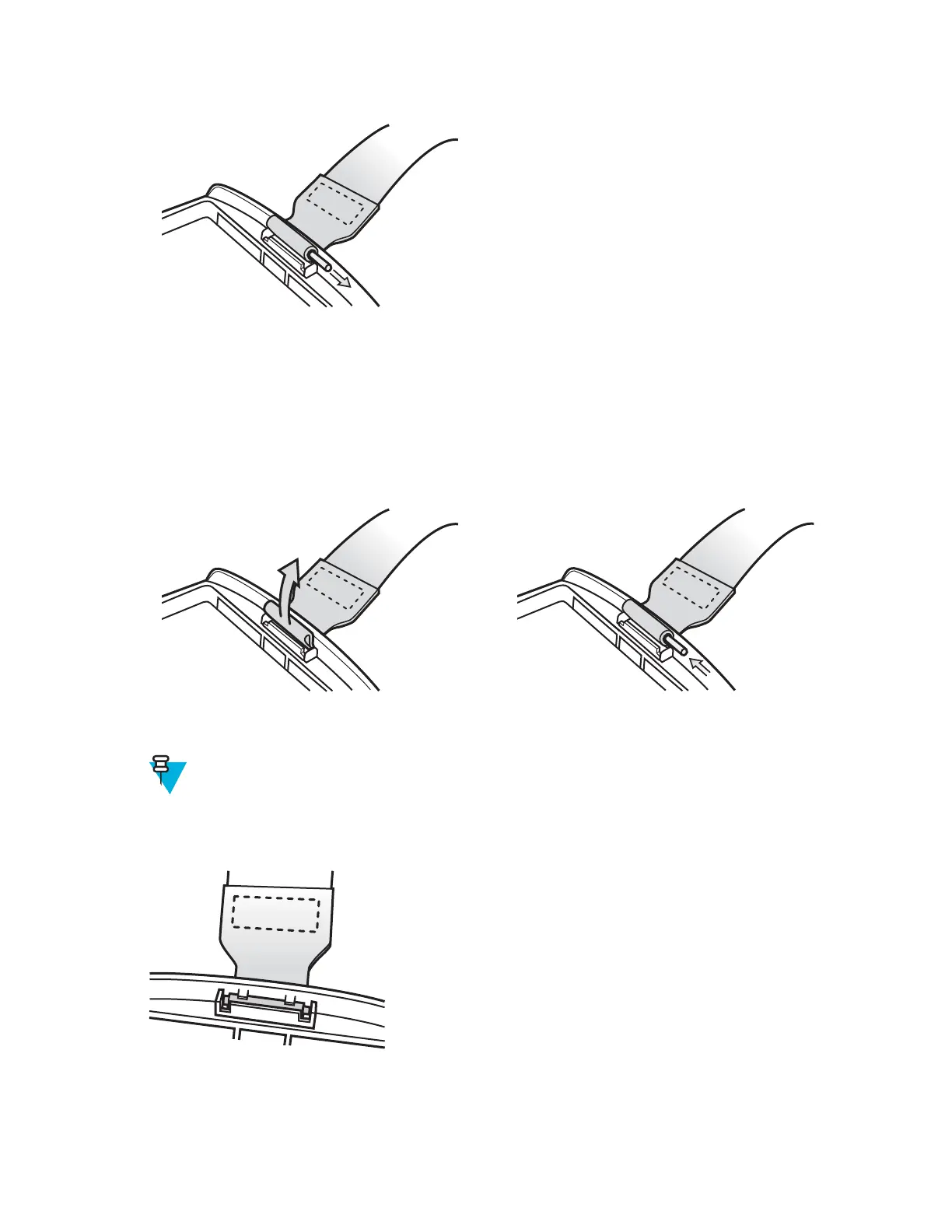

Figure 43: Pin Removal
10 Pull handstrap through handstrap slot.
Installation
To install a new handstrap:
Procedure:
1 Feed bottom end of handstrap into handstrap slot on the bottom of the MC67.
Figure 44: Feed Handstrap into Handstrap Slot
2 Slide pin into bottom of handstrap.
3 Center the pin in the handstrap loop.
Note: Handstrap and pin should fit securely into the handstrap mounting area. When pulling on
handstrap use enough force to engage pin into place.
4 Pull handstrap so that the pin and bottom of handstrap slide into position in the mounting area.
Figure 45: Pin and handstrap in Mounting Area
Accessories | 53
MN000116A02-A | May 2015
