3 Touch Protocol.
4 In the Choose protocol dialog box, touch the same protocol selected in the client application. (TCP is the default).

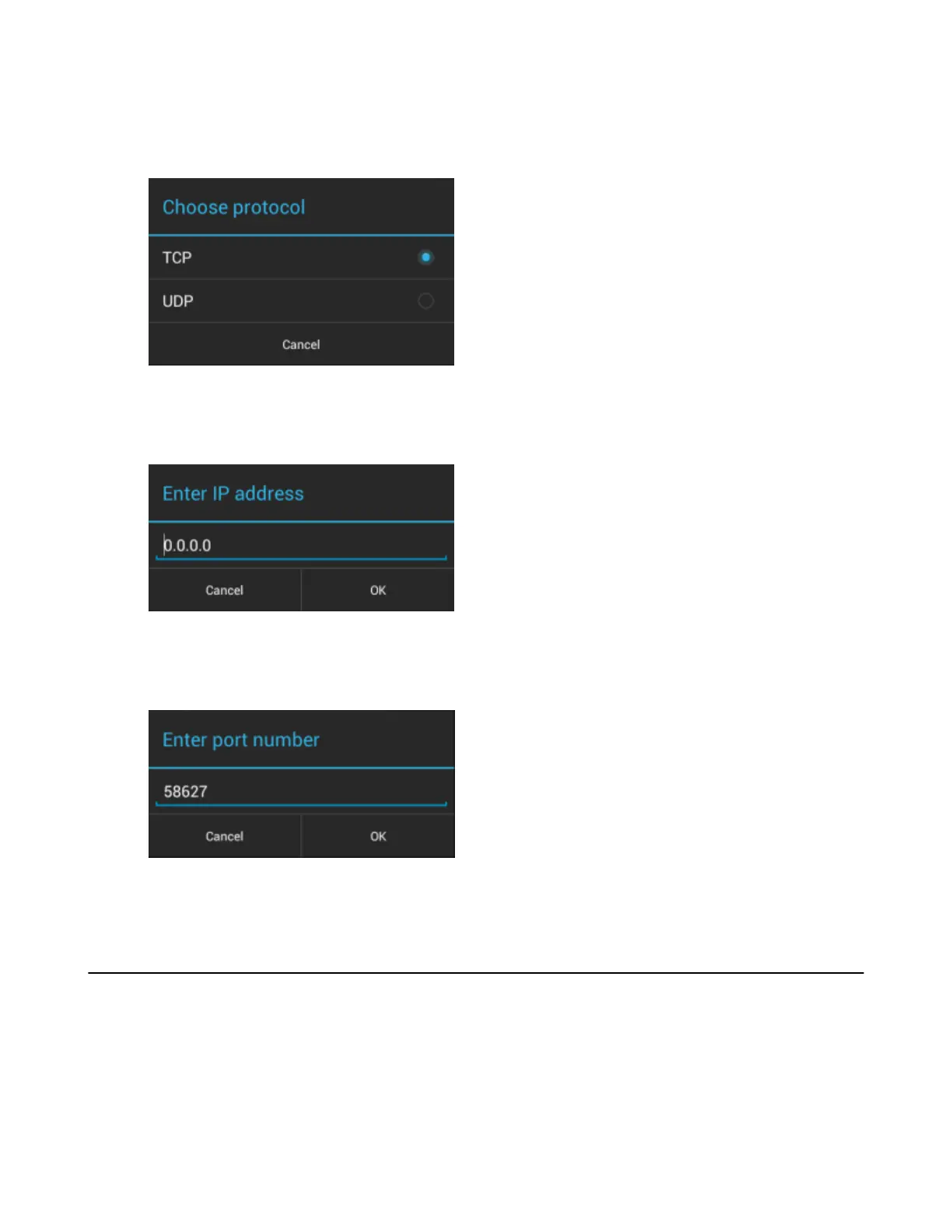

Figure 58: Protocol Selection
5 Touch IP Address.
6 In the Enter IP address dialog box, enter the IP address of host computer to send data to.
Figure 59: IP Address Entry
7 Touch Port.
8 In the Enter port number dialog box, enter the port number that the host computer application is listening on.
Figure 60: Port Number Entry
9 Configure Advanced Data Formatting and Basic Data Formatting Plug-in if any required modification to be
done to captured data before sending to remote computer.
Generating Advanced Data Formatting Rules
The ADF plug-in applies rules (actions to be performed based on defined criteria) to the data received via an input
plug-in before sending it to the output plug-in.
• Rules - The ADF process plug-in consists of one or more rules. DataWedge formats the output data according to
the first matching rule. A rule is a combination of criteria and a set of actions to be performed, upon fulfillment of
the criteria set in the rule.
DataWedge Configuration | 75
MN000116A02-A | May 2015
