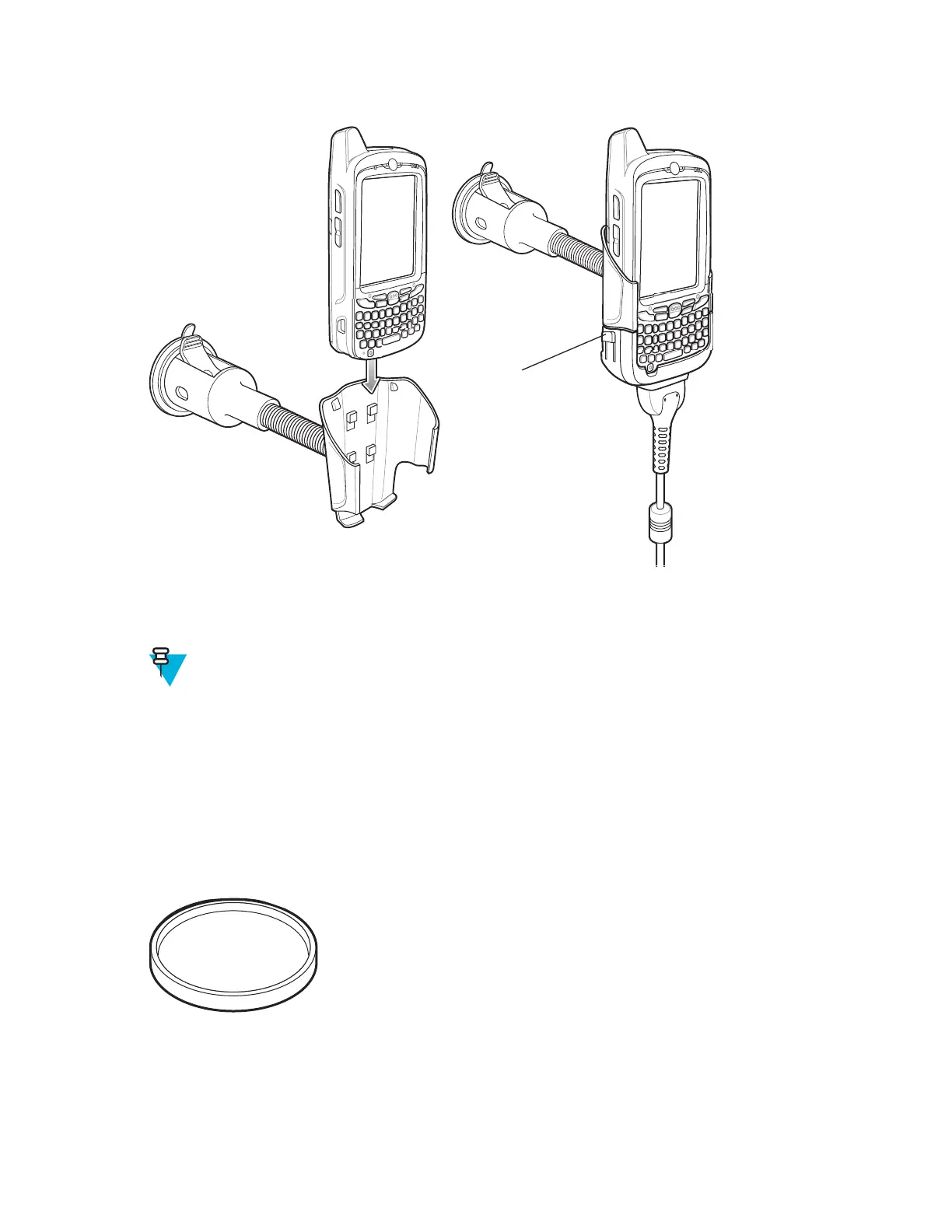

Figure 38: Insert MC67 into Vehicle Holder
5 Connect the auto charger cable to the MC67 and slide the two locking tabs up to secure the cable cup to the
MC67.
6 Connect the other end to the cigarette lighter socket.
Note: Prior to removing the MC67 from the vehicle holder, disconnect the auto-charge cable from the
MC67.
The LED indicator on the right side of the touch screen lights up orange during charging.
Flat Surface Installation
Procedure:
1 Remove the plastic sheet on the bottom of the mounting disc.
2 Place the disc, sticky side down, on a clean flat surface.
Figure 39: Mounting Disk
3 Fix the suction cup mount to the disc with the suction lever facing up.
4 Flip the lever down to create a vacuum between the suction cup and the disc.
5 Make sure that the suction bond is strong enough before proceeding to the next step.
6 Slide the MC67 into the cradle.
50 | Accessories
May 2015 | MN000116A02-A
