MOTOROLA
M68020 USER’S MANUAL
A-
1
APPENDIX A
INTERFACING AN MC68EC020 TO A DMA DEVICE
THAT SUPPORTS A THREE-WIRE BUS ARBITRATION
PROTOCOL
The MC68EC020 supports a two-wire bus arbitration
protocol;
however, it
may
become
necessary to interface the MC68EC020 to a device that supports a three-wire arbitration
protocol. Figure A-1 shows a method by which this can be achieved.
BG
PR
Q
Q
CLR
CLK
D
+5 V
74F74
4
74LS08
BR
BGACK
BR
74LS04
74LS04
BG
(MC68EC020)
(DMA)
(DMA)
(DMA)
(MC68EC020)
MC68EC020
BG
BR
BGACK
BR
BG
DMA

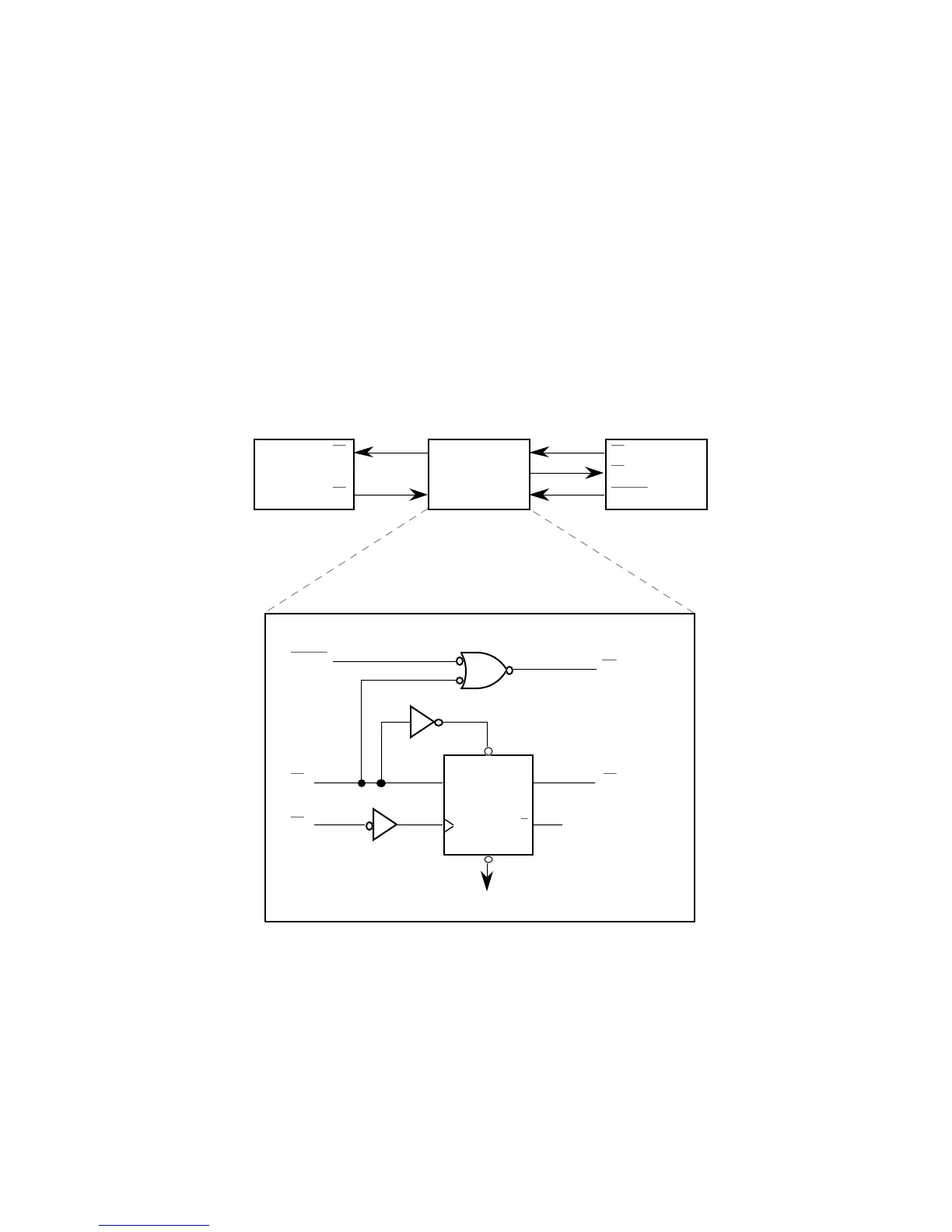

Figure
A-1. Bus Arbitration Circuit—
MC68EC020 (Two-Wire) to DMA (Three-Wire)
