MOTOROLA
M68020 USER’S MANUAL
5-
1
3
BYTE WRITE
WORD OPERAND WRITE
S0
S2
S4
S0
S2
S4
CLK
A31–A2
A1
A0
FC2–FC0
SIZ1
SIZ0
R/W
ECS
OCS
AS
DS
DSACK1
DSACK0
DBEN
D31–D24
D23–D16
BYTE WRITE
D15–D8
D7–D0
**
**
**
*
*
For the MC68EC020, A23–A2.
This signal does not apply to the MC68EC020.
**

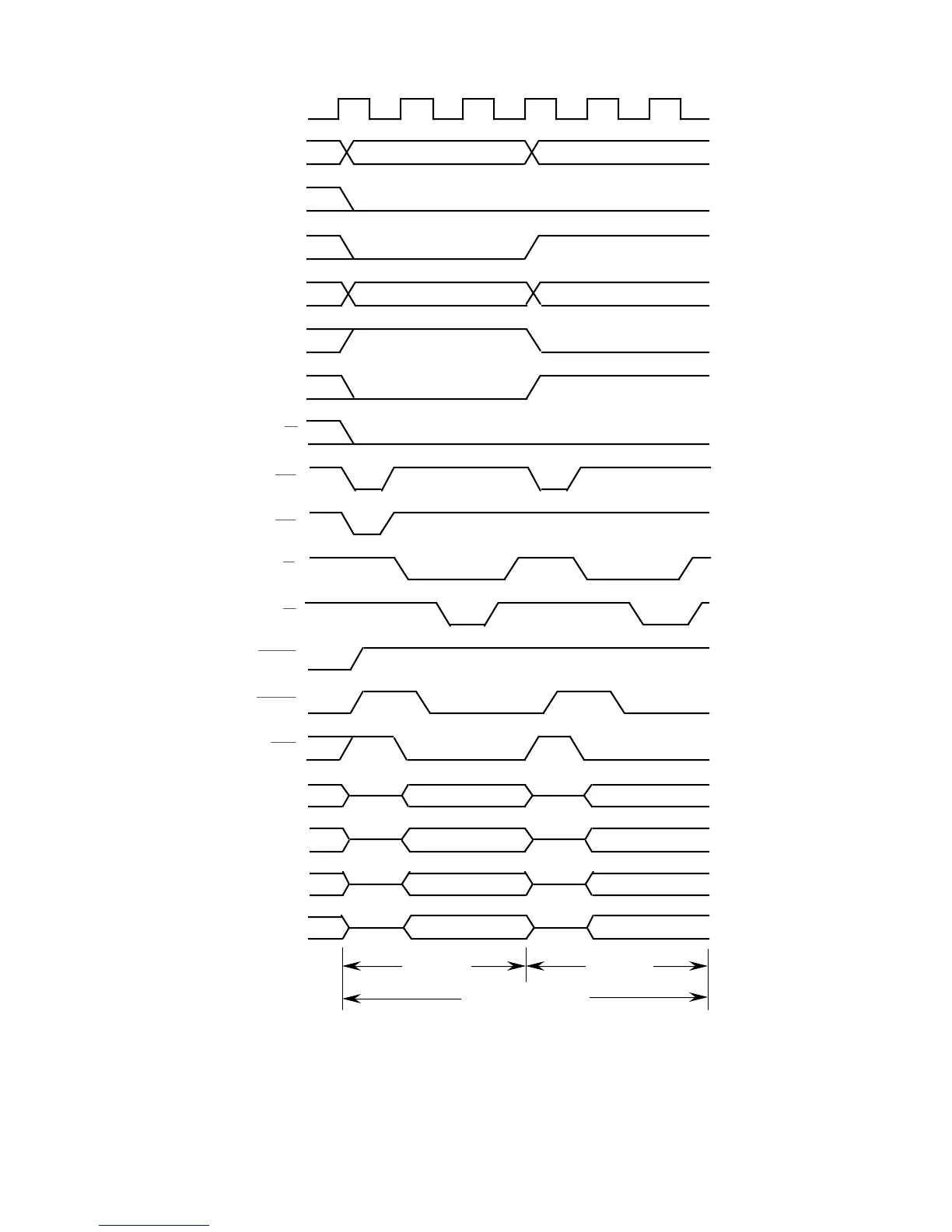

Figure
5-8. Word Operand Write to Byte Port Timing
