MOTOROLA
M68020 USER’S MANUAL
5-
3
5
WORD WRITE
S0
S2
S4
S0
S2
S4
CLK
A31-A2
A1
A0
FC2–FC0
SIZ1
SIZ0
R/W
ECS
OCS
AS
DS
DSACK1
DSACK0
DBEN
D31–D24
D23–D16
BYTE WRITE
D15–D8
D7–D0
S0
S2
S4
OP2
OP3
OP3
OP3
WORD
OP3
OP3
OP3
OP3
BYTE
OP2
OP3
OP3
OP3
BYTE WRITE
**
**
**
*
*
For the MC68EC020, A23–A2.
This signal does not apply to the MC68EC020.

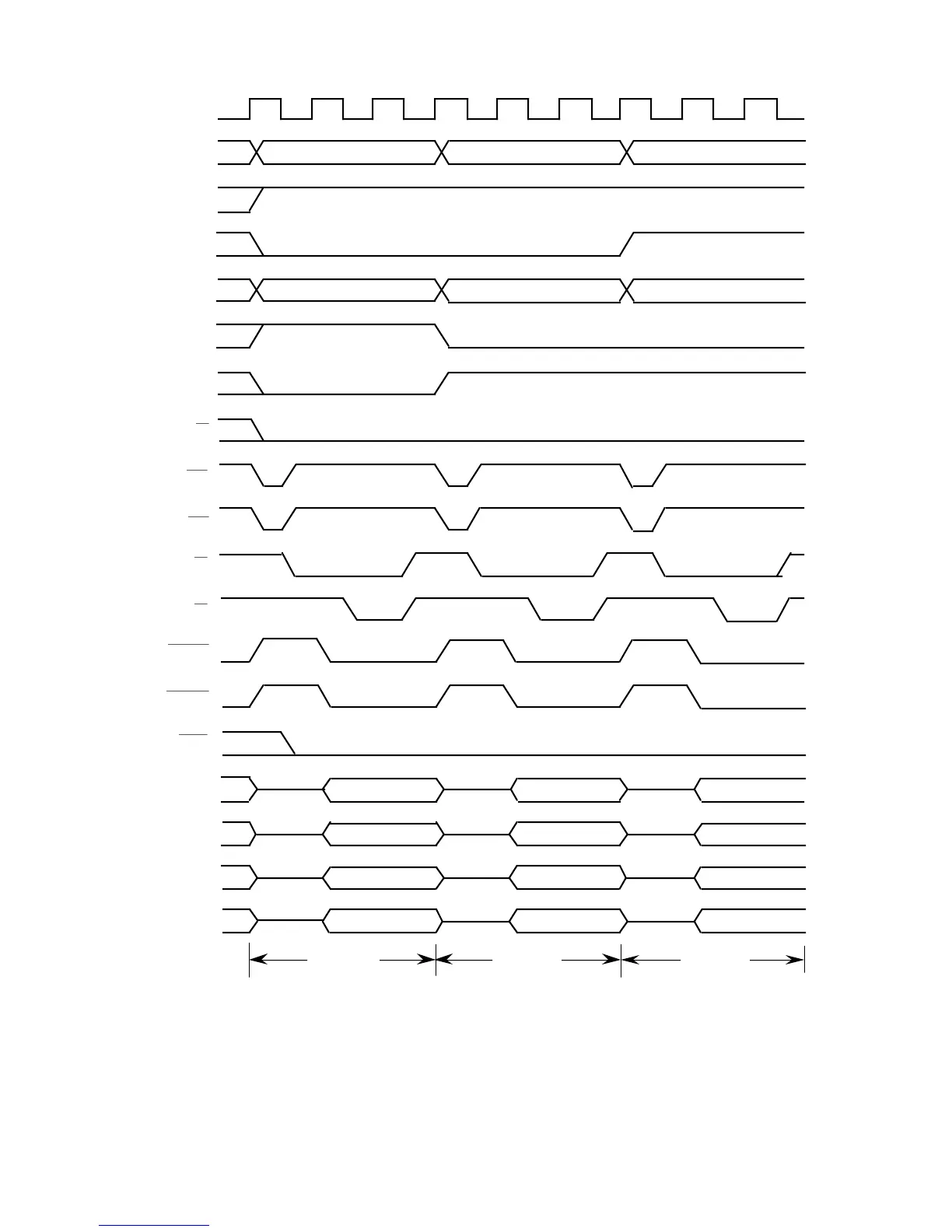

Figure
5-26. Byte and Word Write Cycles—32-Bit Port
82
84
