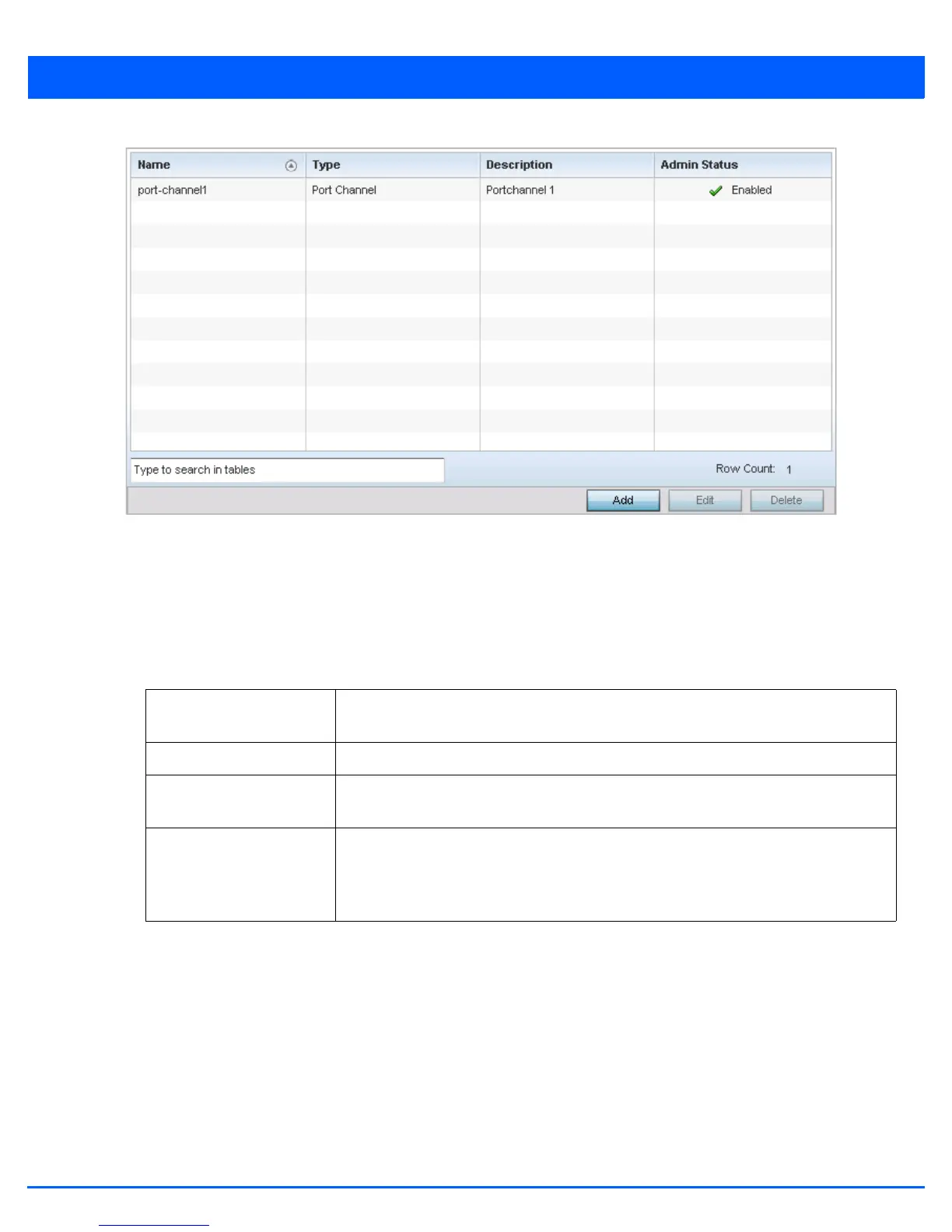

Figure 5-19 Profile Interfaces - Port Channels screen
1. Select the Configuration tab from the Web UI.
2. Select Devices.
3. Select System Profile from the options on left-hand side of the UI.
4. Expand the Interface menu and select Port Channels.
5. Refer to the following to review existing port channel configurations and their current status:
6. To edit the configuration of an existing port channel, select it from amongst those displayed and select the Edit button. The
Port Channel Basic Configuration screen displays by default.
Name Displays the port channel’s numerical identifier assigned to it when it was created. The
numerical name cannot be modified as part of the edit process.
Type Displays whether the type is port channel.
Description Lists a a short description (64 characters maximum) describing the port channel or
differentiating it from others with similar configurations.
Admin Status A green check mark defines the listed port channel as active and currently enabled with
the access point’s profile. A red “X” defines the port channel as currently disabled and not
available for use. The interface status can be modified with the port channel configuration
as required
