12 - 12 WiNG 5.5 Access Point System Reference Guide

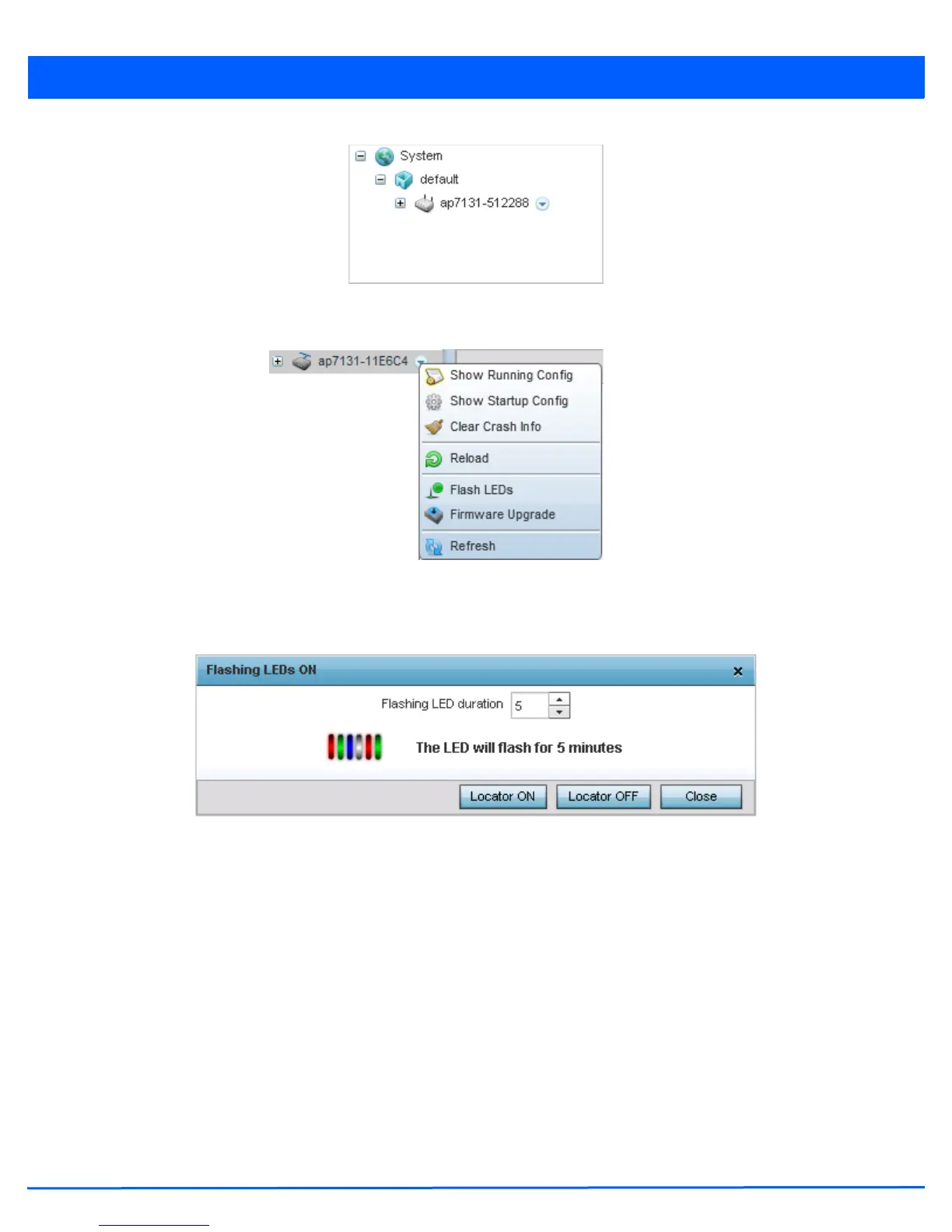

Figure 12-15 Device Browser
2. Select the down arrow next to the device to view a set of operations that can be performed on the selected device.
Figure 12-16 Device Browser - Options for a device
3. To locate the device, click the Flash LEDs item. The following windows displays:
Figure 12-17 Device Pane - Locator screen
4. Use the spinner to set a value for Flash LED Duration. This is the duration, in minutes, the device will flash its LEDs. Once
this duration expires, the LEDs starts operating normally.
5. Click Locator ON to start flashing the LEDs. Click Locator OFF to stop the LEDs from flashing and resume normal
operation. Click Close to close this window.
12.1.4 Upgrading Device Firmware
Devices
To update the firmware of an access point:
1. Select a target device from the left-hand side of the UI.
2. Select the down arrow next to the device to view a set of operations that can b performed on the selected device.
