5 - 122 WiNG 5.5 Access Point System Reference Guide
5.2.7.2 Auto IPSec Tunnel
î
Profile Security Configuration
IPSec tunnels are established to secure traffic, data and management traffic, from access points to remote wireless controllers.
Secure tunnels must be established between access points and the wireless controller with minimum configuration pushed
through DHCP option settings.
1. Select the Configuration tab from the Web UI.
2. Select Devices.
3. Select System Profile from the options on left-hand side of the UI.
4. Expand the Security menu and select Auto IPSec Tunnel.

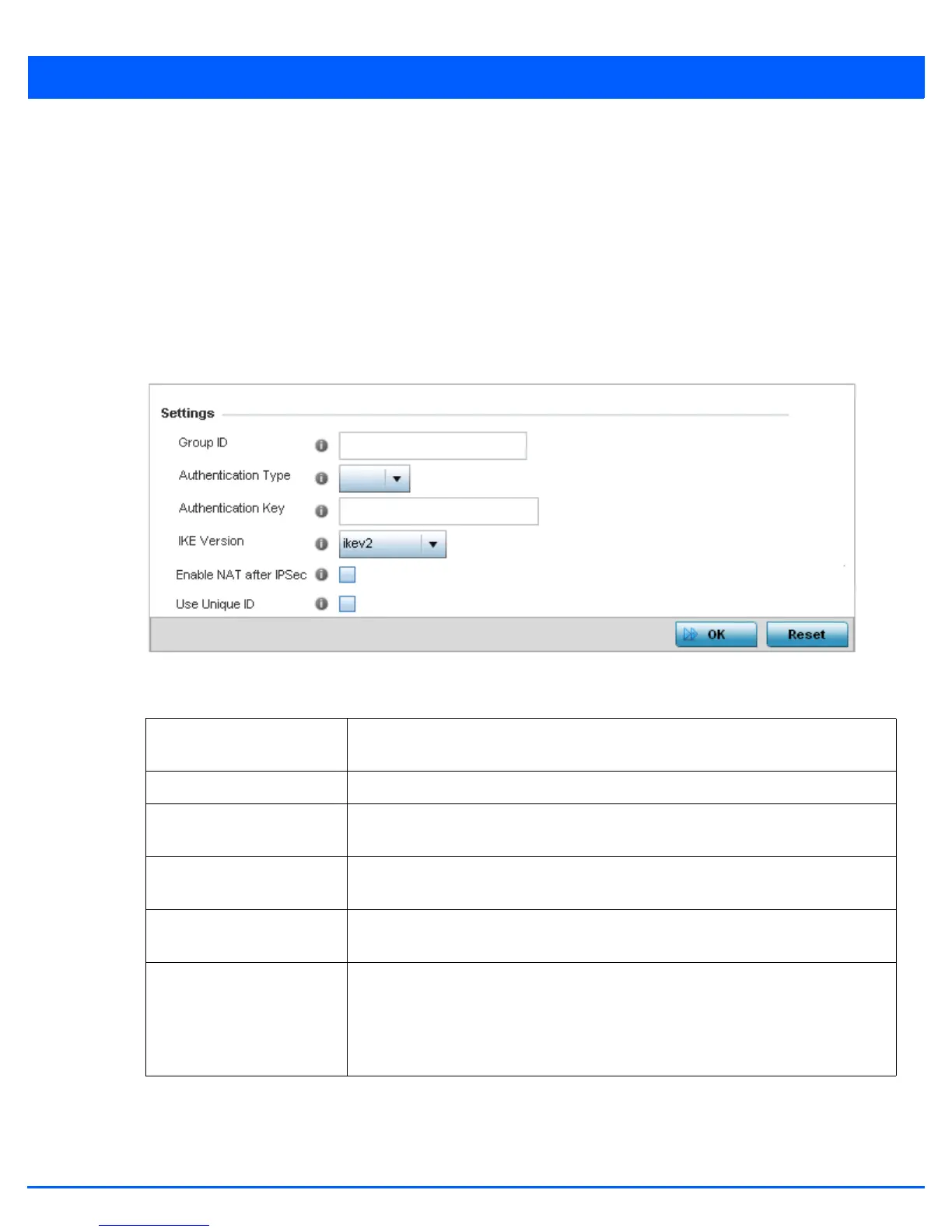

Figure 5-72 Profile Security â Auto IPSec Tunnel screen
5. Refer to the following table to configure the Auto IPSec Tunnel settings:
6. Select OK to save the updates made to the Auto IPSec Tunnel screen. Selecting Reset reverts the screen to its last saved
configuration.
Group ID Configure the ID string used for IKE authentication. String length can be between 1 - 64
characters.
Authentication Type Set the IPSec Authentication Type. Options include PSK (Pre Shared Key) or rsa.
Authentication Key Set the common key for authentication between the remote tunnel peer. Key length is
between 8 - 21 characters.
IKE Version Configure the IKE version to use. The available options are ikev1-main, ikev1-aggr and
ikev2.
Enable NAT after IPSec Select this option to enable NAT after IPSec. Enable this option if there are NATted
networks behind VPN tunnels.
Use Unique ID In scenarios where different access points behind different NAT boxes/routers have the
same IP address, it is not possible to create a tunnel between the wireless controller
and access point, as the wireless controller fails to identify the access point uniquely.
When selected, each access point behind the same NAT box/router will have a unique
ID. This unique ID is used to create the VPN tunnel.
