13.3.8 Policy Based Routing
 Access Point Statistics
The Policy Based Routing statistics screen displays statistics for selective path packet redirection. PBR can optionally mark
traffic for preferential services (QoS). PBR is applied to incoming routed packets, and a route-map is created containing a set
of filters and associated actions. Based on the actions defined in the route-map, packets are forwarded to the next relevant
hop. Route-maps are configurable under a global policy called routing-policy, and applied to profiles and devices.
To review access point PBR statistics:
1. Select the Statistics menu from the Web UI.
2. Select System from the navigation pane (on the left-hand side of the screen). Expand a RF Domain and select one of its
connected access points.
3. Select Policy Based Routing.

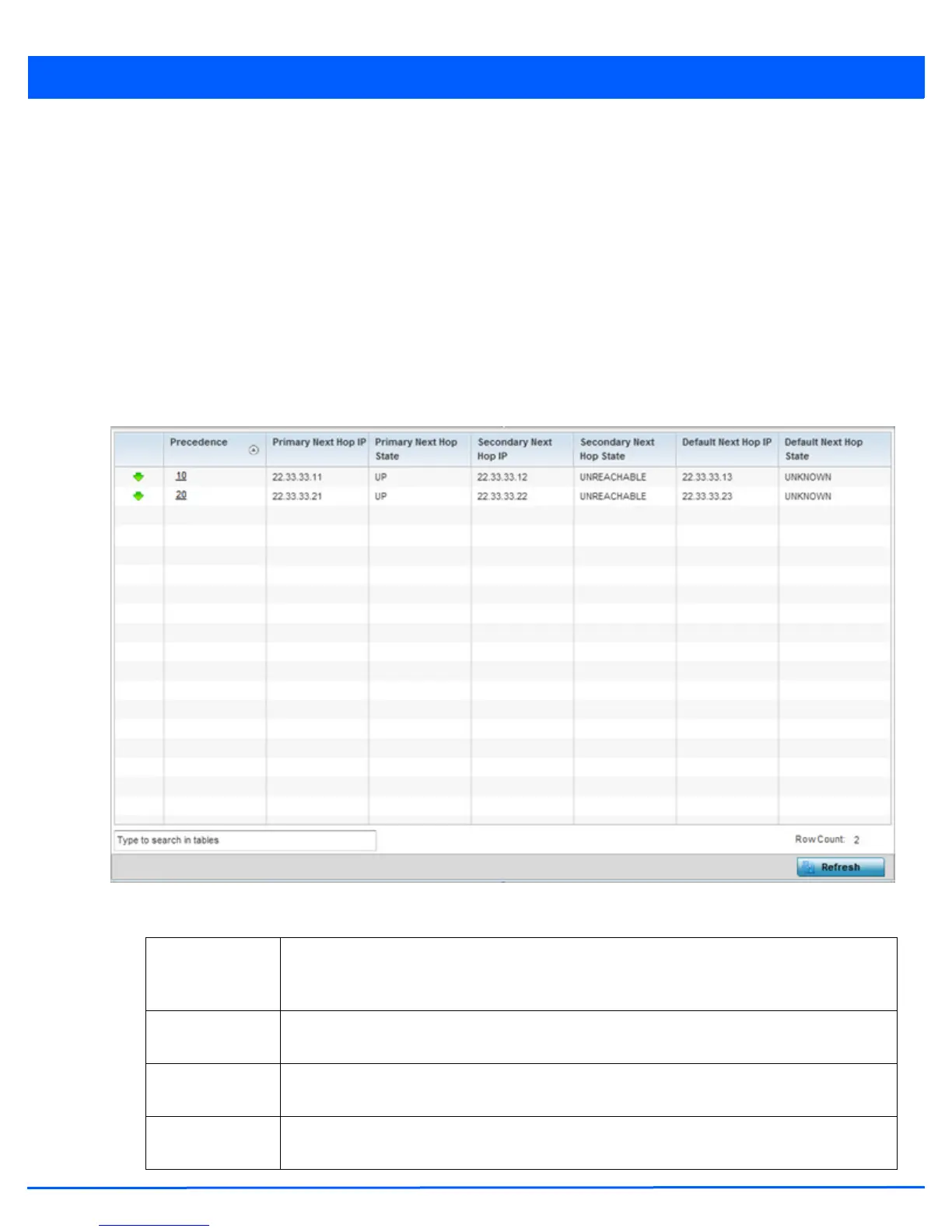

Figure 13-41 Access Point - Policy Based Routing screen
The Policy Based Routing screen displays the following:
Precedence Lists the numeric precedence (priority) assigned to each listed PBR configuration. A route-map
consists of multiple entries, each carrying a precedence value. An incoming packet is matched
against the route-map with the highest precedence (lowest numerical value).
Primary Next
Hop IP
Lists the IP address of the virtual resource that, if available, is used with no additional route
considerations.
Primary Next
Hop State
Displays whether the primary hop is applied to incoming routed packets (UP/UNREACHABLE).
Secondary Next
Hop IP
If the primary hop is unavailable, a second resource is used. This column lists the address set for
the alternate route in the election process.
