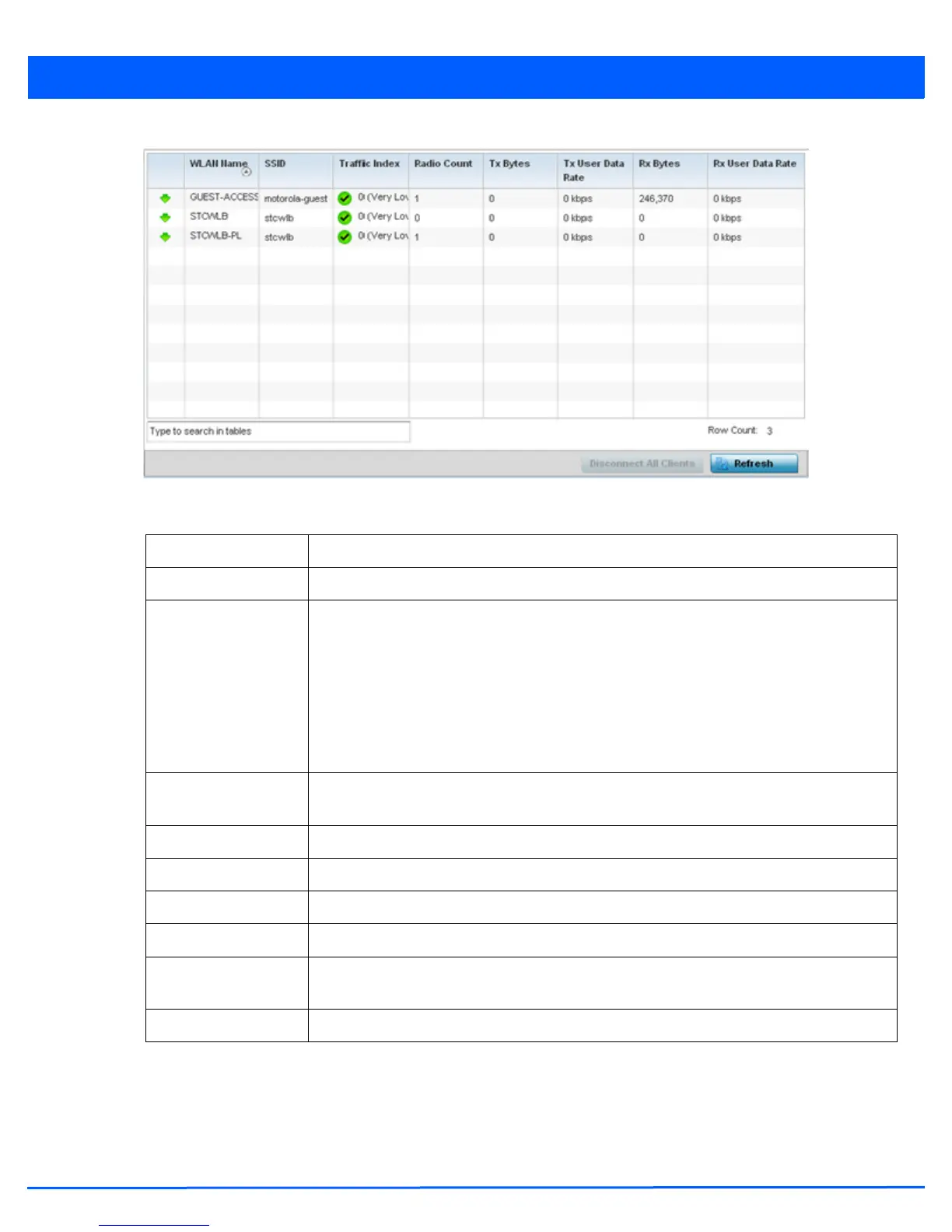

Figure 13-40 Access Point - Wireless LANs screen
The Wireless LANs screen displays the following:
WLAN Name Displays the name of the WLAN the Access Point is currently using for client transmissions.
SSID Displays each listed WLAN’s Service Set ID (SSID) used as the WLAN’s network identifier.
Traffic Index Displays the traffic utilization index, which measures how efficiently the WLAN’s traffic
medium is used. It’s defined as the percentage of current throughput relative to maximum
possible throughput. Traffic indices are:
• 0 – 20 (very low utilization)
• 20 – 40 (low utilization)
• 40 – 60 (moderate utilization)
• 60 and above (high utilization)
Radio Count Displays the cumulative number of peer access point radios deployed within each listed
WLAN.
Tx Bytes Displays the average number of transmitted bytes sent on each listed WLAN.
Tx User Data Rate Displays the transmitted user data rate in kbps for each listed WLAN.
Rx Bytes Displays the average number of packets in bytes received on each listed WLAN.
Rx User Data Rate Displays the received user data rate on each listed WLAN.
Disassociate All
Clients
Select an WLAN then Disassociate All Clients to terminate the client connections within that
WLAN.
Refresh Select the Refresh button to update the screen’s statistics counters to their latest values.
