3.1.1.5 WAN Configuration
Typical Setup Wizard
Use the WAN Setting screen to define network address settings for the WAN interface. The WAN interface connects the
access point to a wired local area network or backhaul.

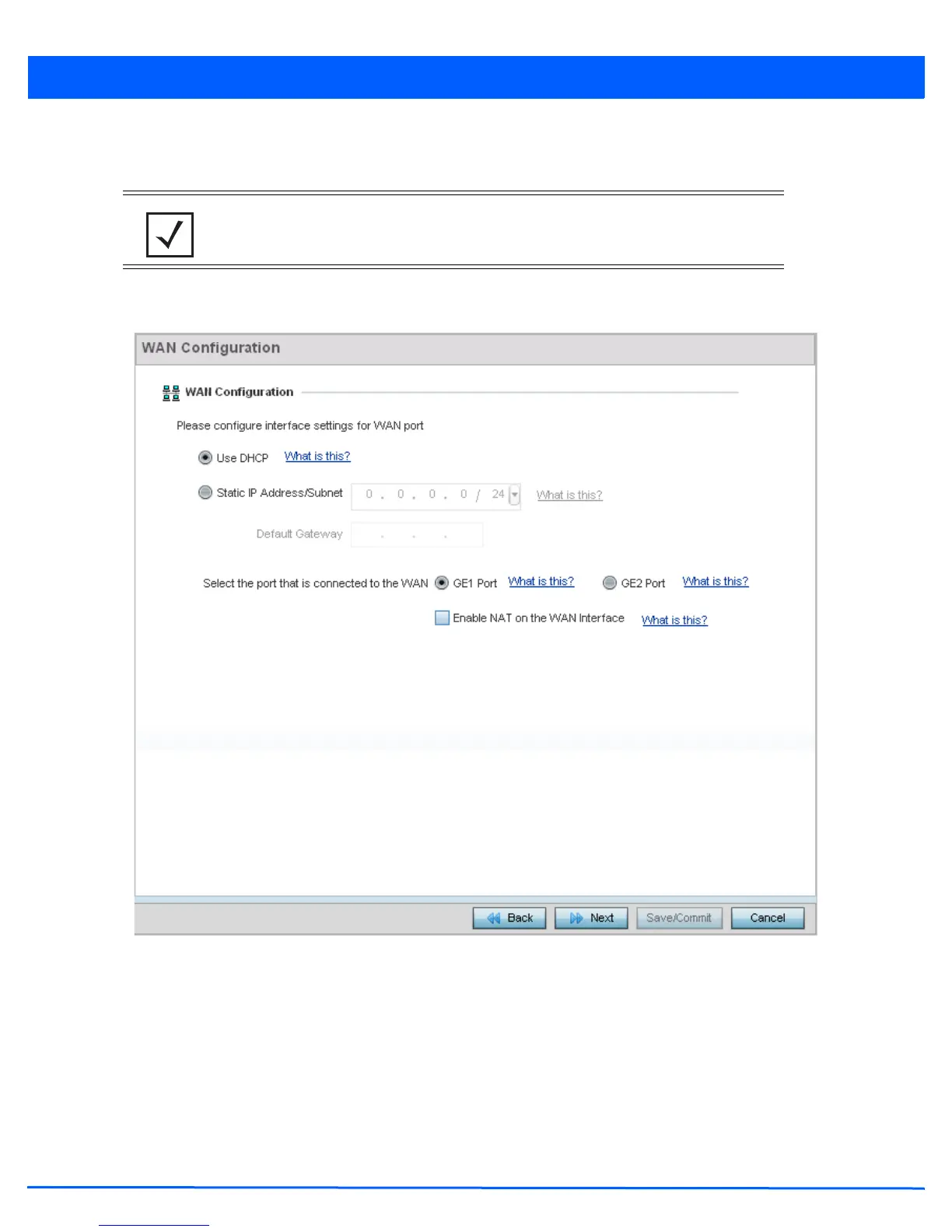

Figure 3-8 Initial Setup Wizard - WAN Configuration screen of the Typical Setup Wizard
1. Set the following WAN parameters:
• Use DHCP - Select the radio control to enable an automatic network address configuration using external DHCP servers.
An automatic IP address is configured to the access point’s WAN port using DHCP servers located on the WAN side of
the network.
• Static IP Address/Subnet - Enter an IP Address and a subnet for the access point's WAN interface. If Use DHCP is
selected, this field is not available. When selecting this option, define Default Gateway information, as the field will
become enabled on the bottom portion of the screen. The provided IP address is assigned to the WAN interface of the
access point. The Default Gateway is a router that serves as a access to other networks.
• Select the port that is connected to the WAN – Select the port connected to the WAN.
NOTE: This option is only available when Router Mode is selected in the Network
Topology screen.
