Device Configuration 5 - 77
5.2.6.7 Routing
Profile Network Configuration
Routing is the process of selecting IP paths to send access point managed network traffic. Use the Routing screen to set
destination IP and gateway addresses enabling assignment of static IP addresses for requesting clients without creating
numerous host pools with manual bindings. This eliminates the need for a long configuration file and reduces the resource
space required to maintain address pools.
To create static routes:
1. Select the Configuration tab from the Web UI.
2. Select Devices.
3. Select System Profile from the options on left-hand side of the UI.
4. Expand the Network menu and select Routing.

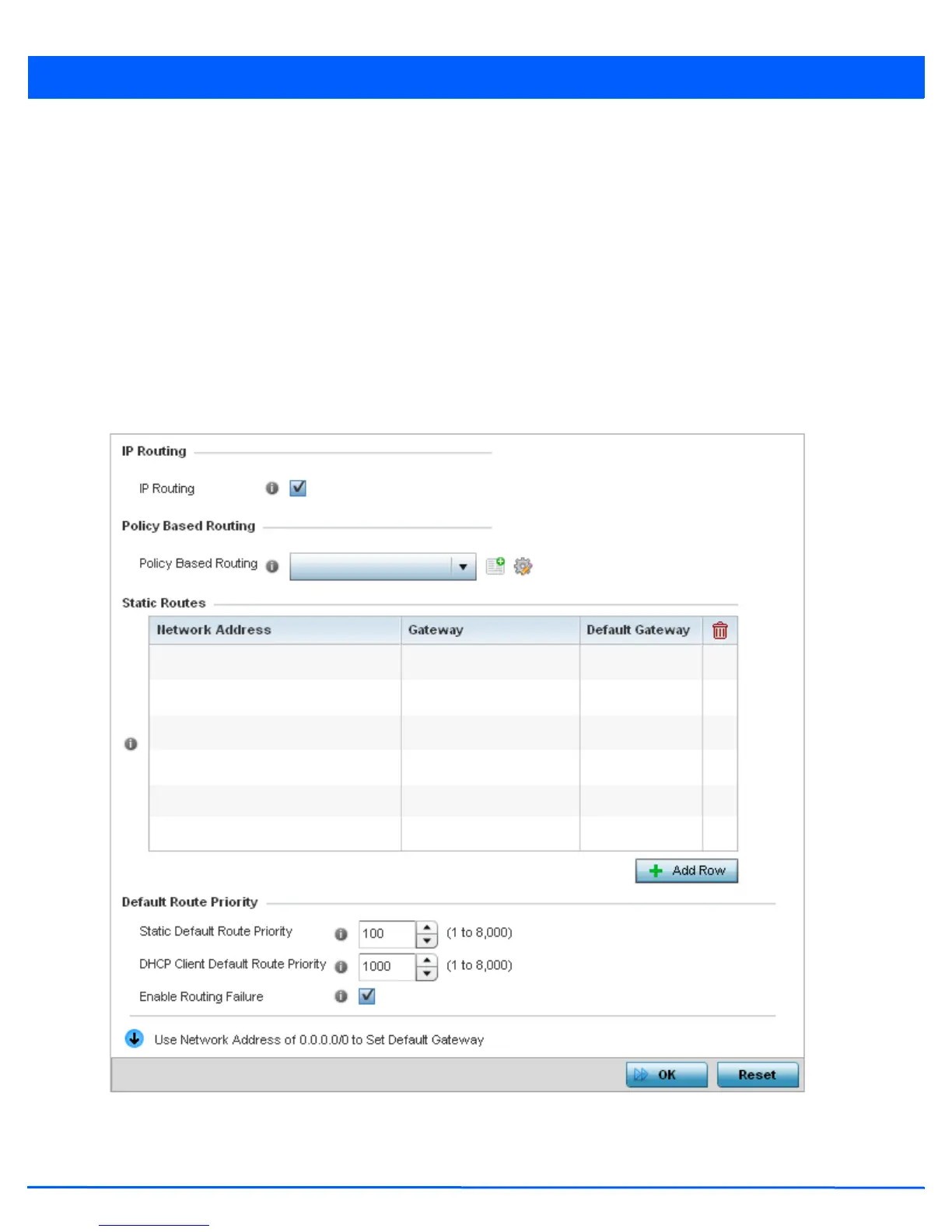

Figure 5-41 Network - Routing screen
5. Select IP Routing to enable static routes using IP addresses. This option is enabled by default.
