3 - 10 WiNG 5.5 Access Point System Reference Guide
3.1.1.3 Network Topology Selection
Typical Setup Wizard
Use the Network Topology screen to define how the access point manages network traffic. The available modes are:

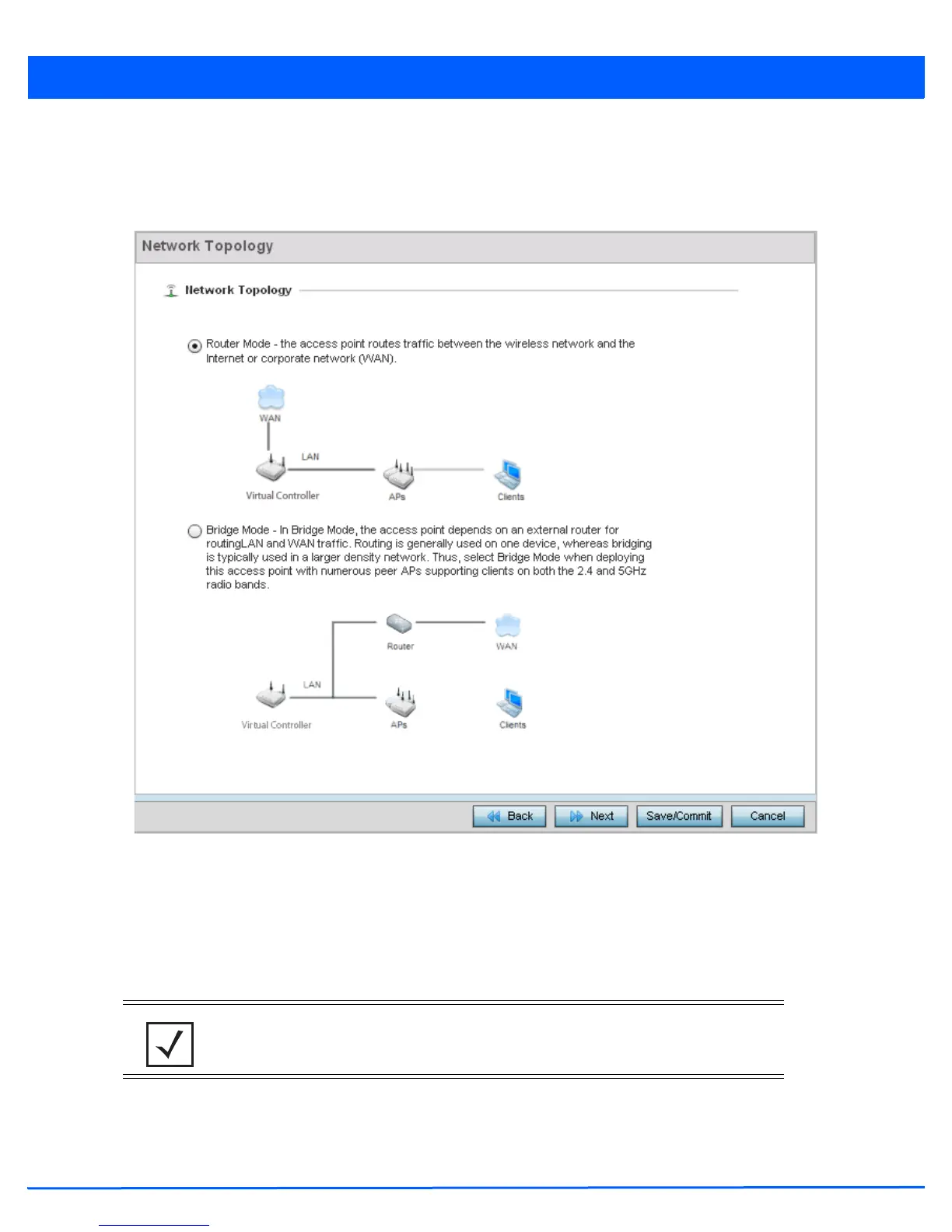

Figure 3-6 Initial Setup Wizard - Network Topology screen for Typical Setup Wizard
• Router Mode - In Router Mode, the access point routes traffic between the local network (LAN) and the Internet or
external network (WAN). Router mode is recommended in a deployment supported by just a single access point.
• Bridge Mode - In Bridge Mode, the access point depends on an external router for routing LAN and WAN traffic.
Routing is generally used on one device, whereas bridging is typically used in a larger density network. Select Bridge
Mode when deploying this access point with numerous peer access points supporting clients on both the 2.4 GHz and
5.0 GHz radio bands.
1. Select Next. The Typical Setup Wizard displays the LAN Configuration screen to set the access point's LAN interface
configuration. For more information, see LAN Configuration on page 3-11.
NOTE: When Bridge Mode is selected, WAN configuration cannot be performed and the
Initial Setup Wizard does not display the WAN configuration screen.
