5.2.5.4 Access Point Radio Configuration
 Profile Interface Configuration
An access point profile can have its radio configuration modified once its radios have successfully associated to the network.
To define a access point radio configuration:
1. Select the Configuration tab from the Web UI.
2. Select Devices.
3. Select System Profile from the options on left-hand side of the UI.
4. Expand the Interface menu and select Radios.

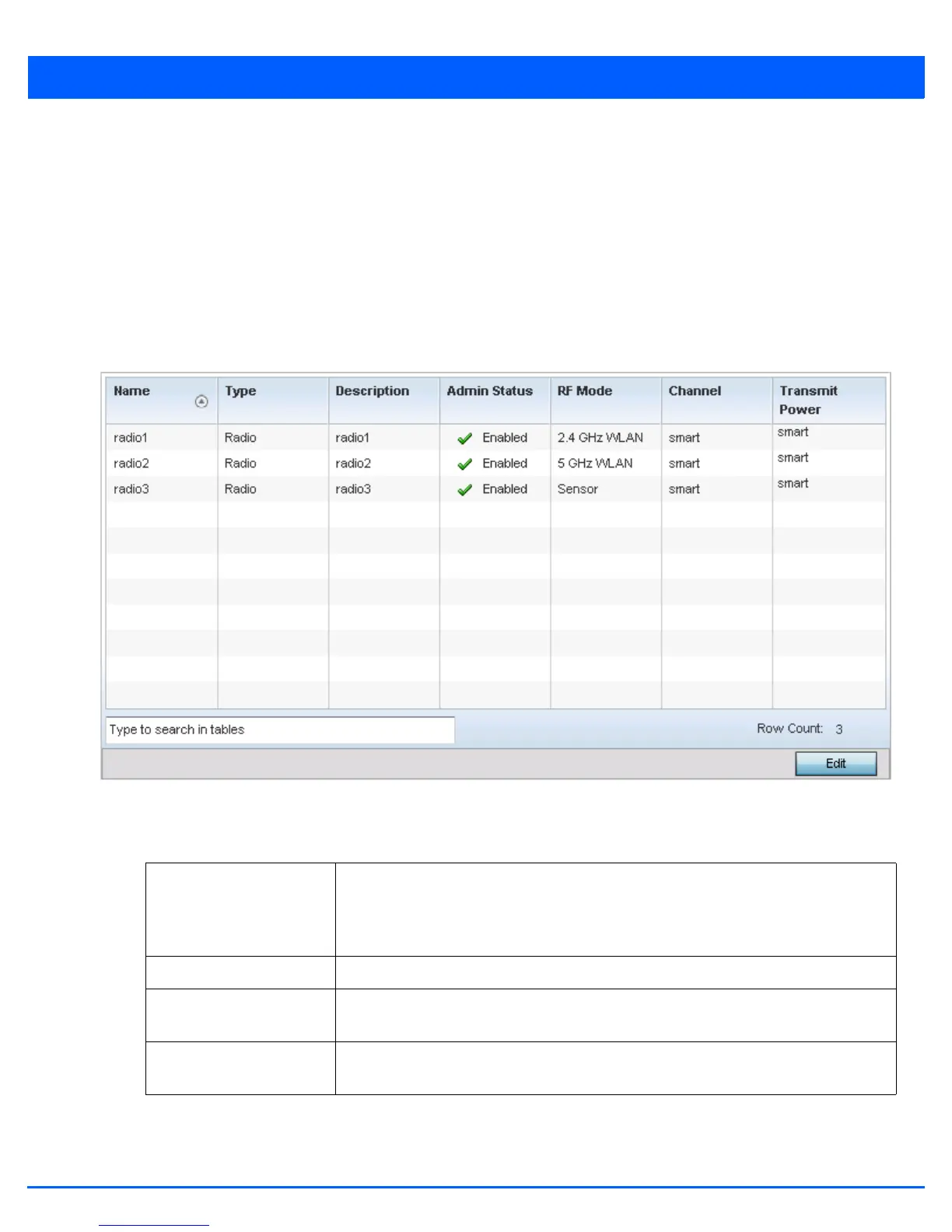

Figure 5-23 Access Point Radios screen
5. Review the following radio configuration data to determine whether a radio configuration requires modification to better
support the network:
Name Displays whether the reporting radio is radio 1, radio 2 or radio 3. AP7131 models can
have up to 3 radios depending on the SKU. AP6522, AP6522M, AP6532, AP6562, AP8132,
AP8232, AP7181 and AP7161 models have 2 radios, while AP6521 and AP6511 models
have 1 radio.
Type Displays the type of radio housed by each listed access point.
Description Displays a brief description of the radio provided by the administrator when the radio’s
configuration was added or modified.
Admin Status A red “X” defines the radio’s status as currently disabled. A green check mark designates
the status as enabled.
