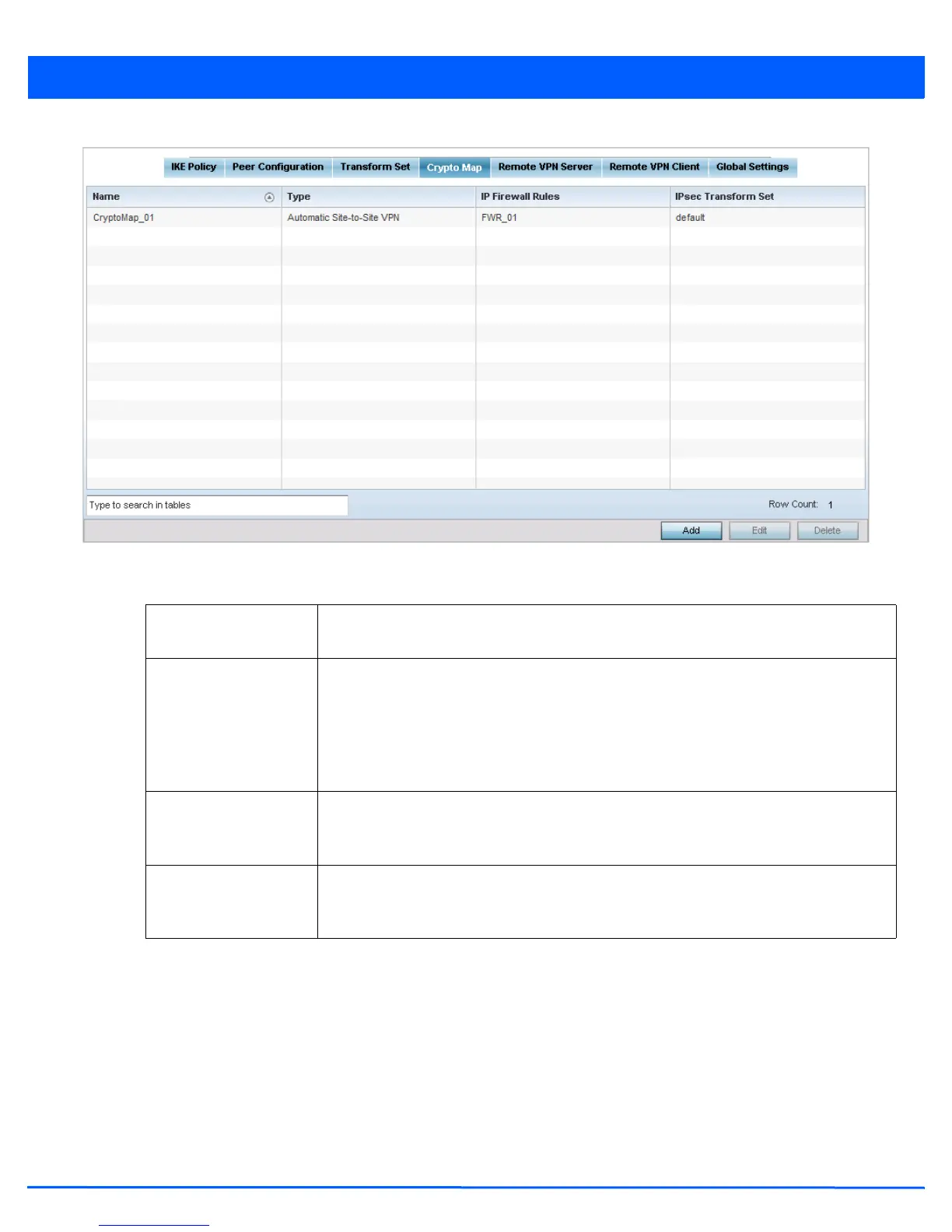

Figure 5-66 Profile Security - VPN Crypto Map tab
21. Review the following Crypto Map configuration parameters to assess their relevance:
22. If requiring a new crypto map configuration, select the Add button. If updating the configuration of an existing crypto map,
select it from amongst those available and select the Edit button.
23. If adding a new crypto map, assign it a name up to 32 characters as a unique identifier. Select the Continue button to
proceed to the VPN Crypto Map screen.
Name Lists the 32 character maximum name assigned for each crypto map upon creation. This
name cannot be modified as part of the edit process.
Type Displays the site-to-site-manual, site-to-site-auto or remote VPN configuration defined for
each listed crypto map configuration. With site-to-site deployments, an IPSEC Tunnel is
deployed between two gateways, each at the edge of two different remote networks. With
remote VPN, an access point located at remote branch defines a tunnel with a security
gateway. This facilitates the endpoints in the branch office to communicate with the
destination endpoints (behind the security gateway) in a secure manner.
IP Firewall Rules Lists the IP firewall rules defined for each displayed crypto map configuration. Each firewall
policy contains a unique set of access/deny permissions applied to the VPN tunnel and its
peer connection.
IPSec Transform Set Displays the transform set (encryption and has algorithms) applied to each listed crypto map
configuration. Thus, each crypto map can be customized with its own data protection and
peer authentication schemes.
