Device Configuration 5 - 139
(available publicly) refer to http://www.ietf.org/rfc/rfc3768.txt (version 2) and http://www.ietf.org/rfc/rfc5798.txt (version
3).
7. From within the VRRP tab, select Add to create a new VRRP configuration or Edit to modify the attributes of an existing
VRRP configuration. If necessary, existing VRRP configurations can be selected and permanently removed by selecting
Delete.
If adding or editing a VRRP configuration, the following screen displays:

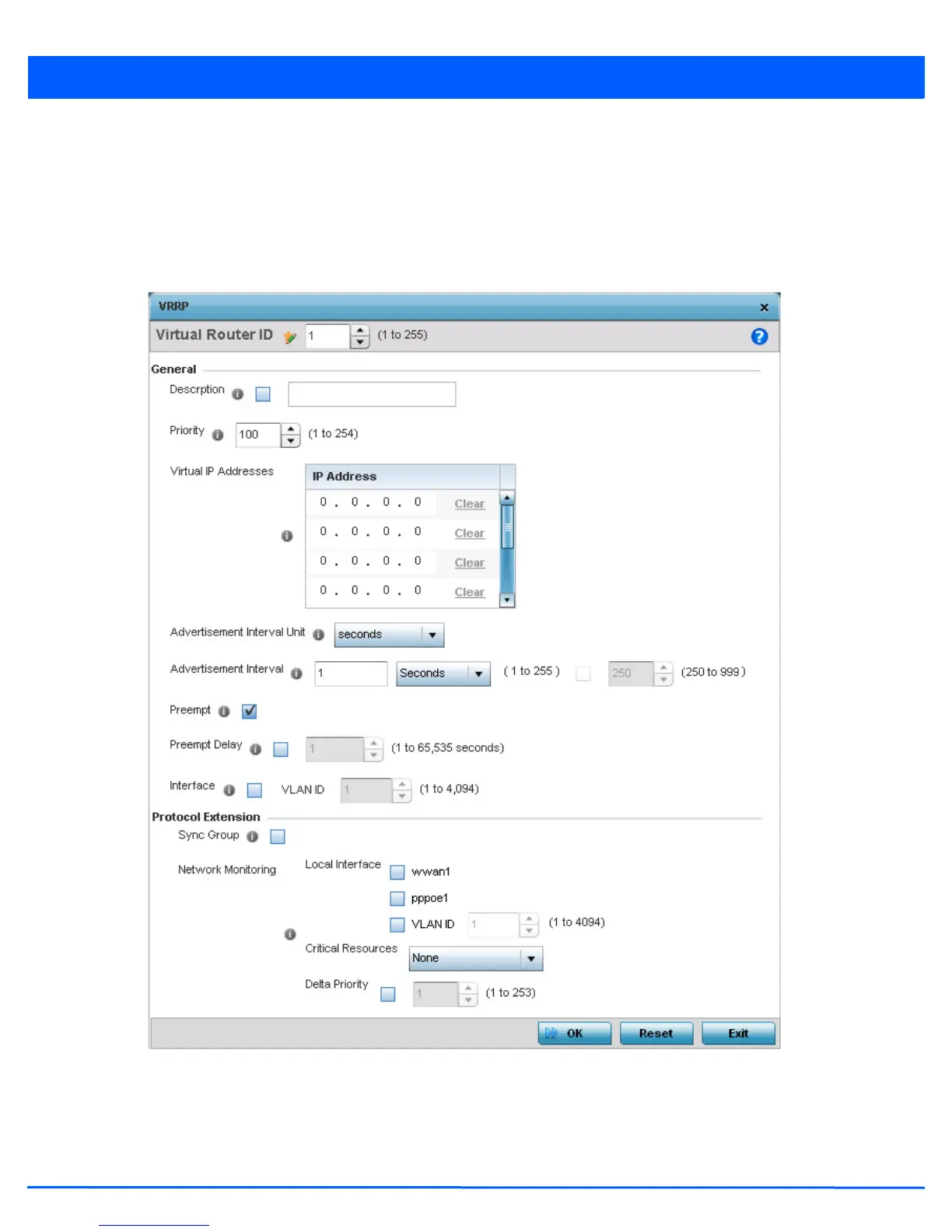

Figure 5-88 Profiles - VRRP screen
8. If creating a new VRRP configuration, assign a Virtual Router ID from 1 - 255. In addition to functioning as numerical
identifier, the ID identifies the access point’s virtual router a packet is reporting status for.
