Device Configuration 5 - 143
10. Select the Monitor Interval tab.

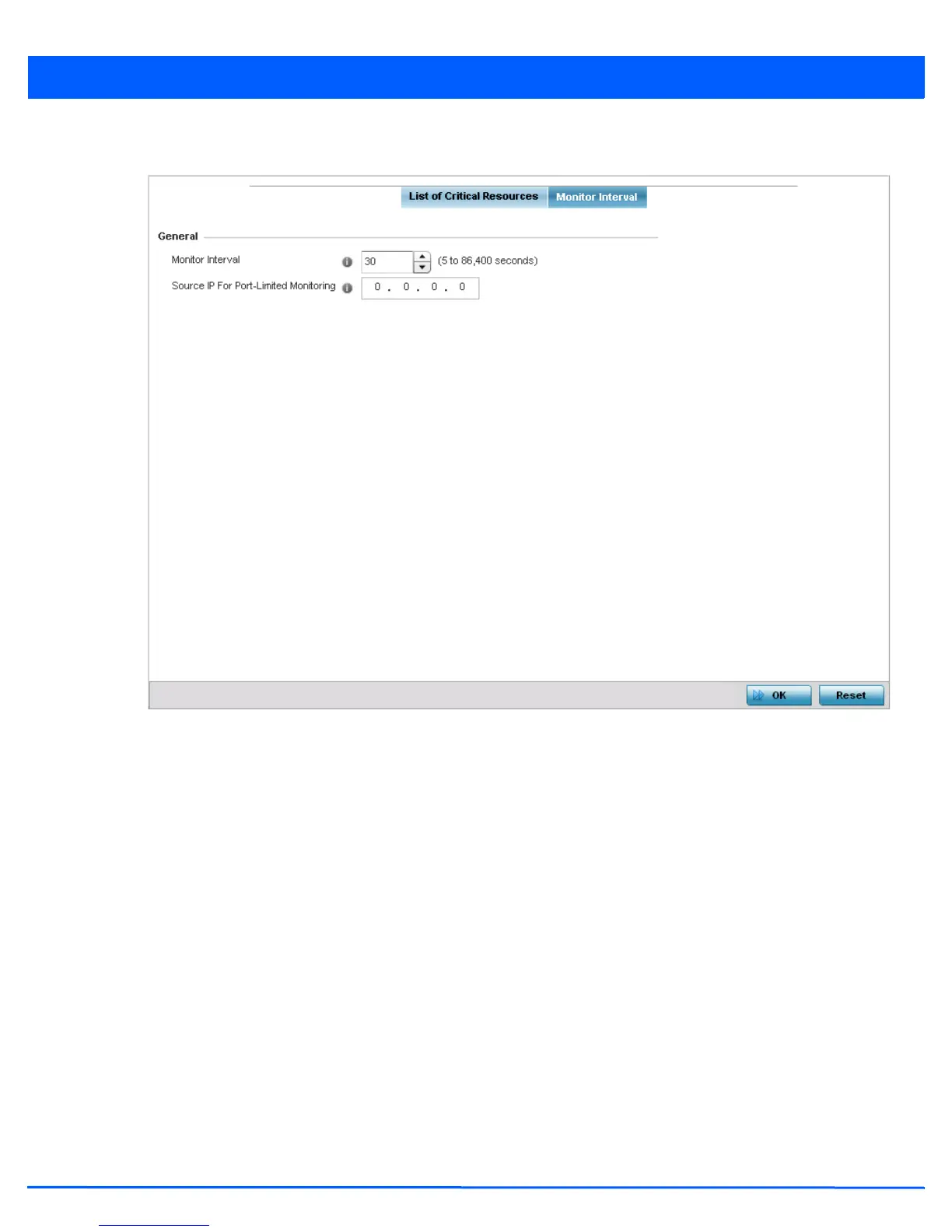

Figure 5-91 Critical Resources screen - Monitor Interval tab
11. Set the duration between two successive pings from the access point to the critical resource. Define this value in seconds
from 5 - 86,400. The default setting is 30 seconds.
12. Configure the IP address for Port-Limited Monitoring in the Source IP for Port-Limited Monitoring field. Sets the IP
address used as the source address in ARP packets used to detect a critical resource on a layer 2 interface. Generally, the
source address 0.0.0.0 is used in the APR packets used to detect critical resources. However, some devices do not support
the above IP address and drop the ARP packets. Use this field to provide an IP address specifically used for this purpose.
The IP address used for Port-Limited Monitoring must be different from the IP address configured on the device.
13. Select OK to save the changes to the critical resource configuration and monitor interval. Select Reset to revert to the last
saved configuration.
